GB/T 19406-2003 English PDF

US$984.00 · In stock
Delivery: <= 5 days. True-PDF full-copy in English will be manually translated and delivered via email.

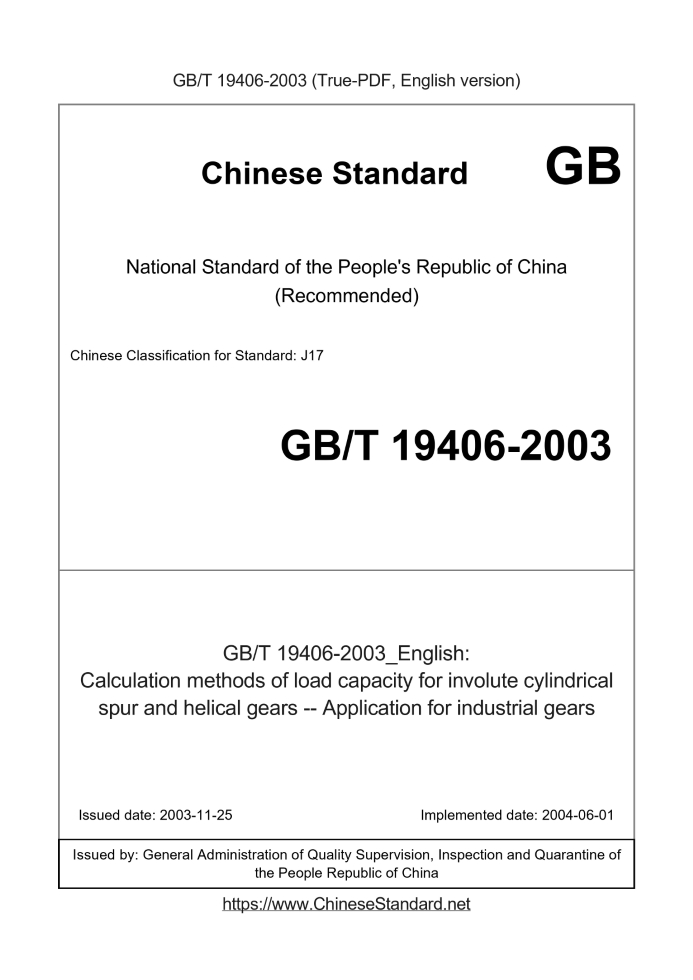

GB/T 19406-2003: Calculation methods of load capacity for involute cylindrical spur and helical gears -- Application for industrial gears
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 19406-2003	984	Add to Cart	5 days	Calculation methods of load capacity for involute cylindrical spur and helical gears -- Application for industrial gears	Valid

Similar standards

GB/T 10095.2   GB/T 14230   GB/T 12760   GB/T 45861   GB/T 19935   GB/T 19936.2

Basic data

Standard ID: GB/T 19406-2003 (GB/T19406-2003)
Description (Translated English): Calculation methods of load capacity for involute cylindrical spur and helical gears-Application for industrical gears
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J17
Classification of International Standard: 21.200
Word Count Estimation: 43,455
Date of Issue: 2003-11-25
Date of Implementation: 2004-06-01
Adopted Standard: ISO 9085-2002; IDT
Regulation (derived from): Chinese national standard approved by the announcement in 2004 No. 1 (No. 63 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People Republic of China
Summary: This standard specifies: strength and flexural strength check calculation method of industrial contacts with straight and helical gears, this standard the formula does not apply to other forms tooth damage, such as plastic deformation, micro- pitting, gluing, surface crushing, welding and wear, can not be applied to unexpected tooth profile destroy under vibration conditions. Flexural strength formula can be applied to the tooth root root fillet break, rather than using tooth profile on the tooth surface work broken gear ring failure or gear blank spokes and wheels failure. This standard does not apply to forging or became final processing methods tooth, then angle can not be applied to spot poor gear. This standard specifies a different gear design comparison method, their purpose to ensure that the assembly does not drive gear system performance, nor for general engineering use, but for experienced designer gear used, him based on a similar design knowledge and discussed on the impact of these chapters understanding, energy for these formulas coefficient reasonable choice value.
