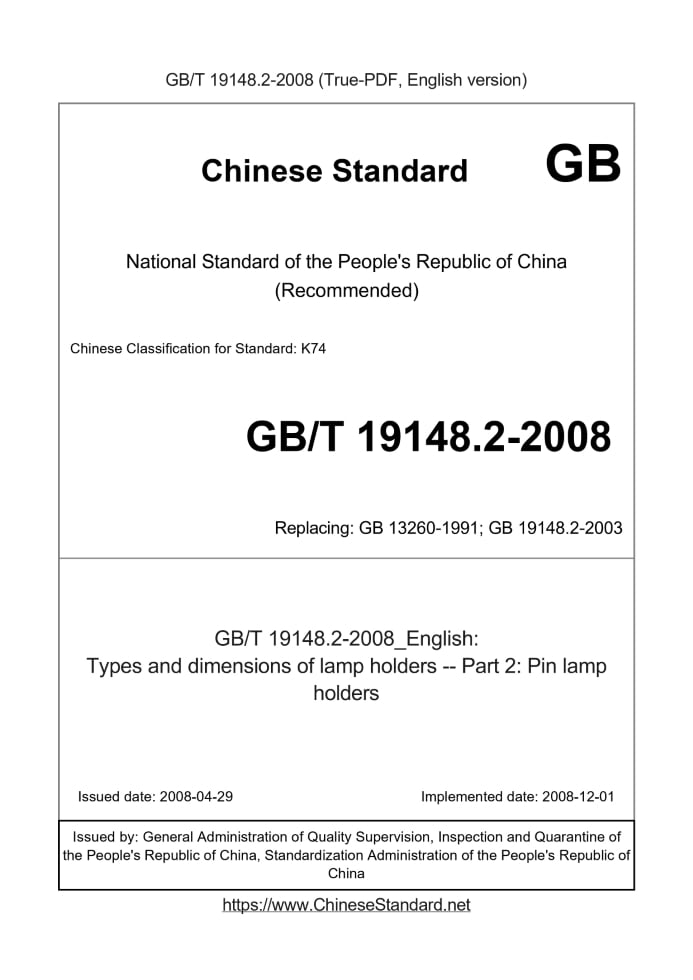

GB/T 19148.2-2008 English PDF

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 19148.2-2008	RFQ	ASK	3 days	Types and dimensions of lamp holders -- Part 2: Pin lamp holders	Valid
GB 19148.2-2003	RFQ	ASK	11 days	Types and dimensions of lamp holders -- Part 2: Pin lamp holders	Obsolete

Similar standards

GB/T 9473   GB/T 24825   GB/T 32483.2   GB/T 19148.3   GB/T 19148.4   GB/T 19148.5

Basic data

Standard ID: GB/T 19148.2-2008 (GB/T19148.2-2008)
Description (Translated English): Types and dimensions of lamp holders -- Part 2: Pin lamp holders
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K74
Classification of International Standard: 29.140.10
Word Count Estimation: 113,147
Date of Issue: 2008-04-29
Date of Implementation: 2008-12-01
Older Standard (superseded by this standard): GB 13260-1991; GB 19148.2-2003
Quoted Standard: GB/T 1406.2; GB/T 1483.2; GB 3836.2; GB 4208-2008; GB/T 10682; GB/T 14094; GB/T 17262; GB/T 21092; GB/T 21098
Adopted Standard: IEC 60061-2-2004, MOD
Regulation (derived from): Announcement of Newly Approved National Standards No. 6, 2008 (No. 119 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard provides for a variety of incandescent and gas discharge lamps using pin lampholders lamp type and size and to ensure the safety and interchangeability dimensions. This section applies to electric light socket with pin -type design, manufacture and testing.

GB/T 19148.2-2008: Types and dimensions of lamp holders -- Part 2: Pin lamp holders

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Types and dimensions of lampholders Part 2. Pin lampholders ICS 29.140.10 K74 National Standards of People's Republic of China Replacing GB 19148.2-2003, GB 13260-1991 Lamp holder type and size Part 2. Pin lampholders (IEC 60061-2.2004, Lampcapsandholderstogetherwithgauges forthecontrolofinterchangeabilityandsafety-Part 2. Lampholders, MOD) Posted 2008-04-29 2008-12-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

GB/T 19148 "lamp socket type and size" is divided into five sections. --- Part 1. screw lampholders; --- Part 2. Pin lampholders; --- Part 3. pre-focusing type lamp holder; --- Part 4. Miscellaneous lampholders; --- Part 5. Bayonet holder. This section GB/T 19148 Part 2. The partial modification using IEC 60061-2.2004 "lamp holders and the amount of test its safety and interchangeability regulation Part 2. Lampholders" (Version 3.32) in English. This portion 60061-2 IEC .2004 "lamp holders and the amount of testing the safety and interchangeability of its regulation Part 2. The lamp" (3.32 Version) The English version of the section on the type and size pin lampholders exactly on the technical content. For ease of use, this section made the following editorial changes. a) "this International Standard" be replaced by "this section"; b) use a decimal point instead of a decimal point ",". ","; c) Remove the preface to international standards; d) This part of the lamp base parameter table number consists of three groups. Group 1 letter GB , Group 2 digital; that digital-based portion of knitting No; the third group number, which is pin lampholders data table number (with IEC parameter table corresponding to the number). This Part replaces GB 19148.2-2003 "pin lampholders type and size" and GB 13260-1991 "tubular fluorescent lamps and Starter holders types and dimensions. " Some of the major differences compared with GB 19148.2-2003 this as follows. --- Retains all the technical content of GB 19148.2-2003 capped; --- Added lamp holder model. printed circuit GUX2.5d, GUY2.5d, GUZ2.5d lamp base; GU4 lamp holder; for bi-pin lamp End GZ4 lamp base; G5.3-4.8 lamp base; GU5.3 lamp holder; GX5.3 lamp base; GY5.3 lamp base; a printed circuit GZX7d-... , GZY7d-... , GZZ7d-... Lampholders; G7.9, GX7.9 lamp base; 2G8 lamp base; G8.5 lamp holder; G9 lamp holder; GRX10q lamp base; GRZ10d lamp base; GRZ10t lamp base; GU10 lamp base; GU10q lamp base; GZ10 lamp base; GZ10q lamp base; GX12 lamp base; 2GX13 lampholder; G17q, GX17q & GY17q lamp holder; G17.5t-1 lampholder; GY22 lamp base; GX38q lamp base; GX53 lamp Seat; Fc2 lamp base; Fa6 lamp base; Fa8 holder. This part is proposed by the National Light Industry Council. This part of the National Electric lighting Standardization Technical Committee (SAC/TC224) centralized. This part mainly drafted by. Beijing Institute of electric light. The main drafters of this section. Qusu Hui, Yang Xiaoping, Jiang Shan, Zhao Xiurong, Duan Yan Fang. This section was first released in 2003, this is the first revision. Lamp holder type and size Part 2. Pin lampholders

1 Scope

This section specifies the type and size of the lamp base and ensure security for a variety of incandescent and gas discharge lamps used pin lampholders And interchangeability dimensions. This section applies to electric light with pin-type lamp socket design, manufacture and testing.

2 Normative references

The following documents contain provisions which, through reference GB/T 19148 in this section constitute provisions of this section. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 1406.2 lamp types and dimensions - Part 2. Pin-type lamp (GB/T 1406.2-2008, IEC 60061-1. 2005, Lampcapsandholderstogetherwithgaugesforthecontrolofinterchangeabilityandsafety- Part 1. Lampcaps, MOD) GB/T 1483.2 Lamp caps Gauges - Part 2. pin-type lamp holder gauge (GB/T 1483.2-2008, IEC 60061-3.2004, Lampcapsandholderstogetherwithgaugesforthecontrolofinterchangeability andsafety-Part 3. Gauges, MOD) GB 3836.2 Electrical apparatus for explosive gas atmospheres Part 2. Flameproof "d" (GB 3836.2-2000, eqv IEC 60079-1.1990) GB 4208-2008 housing protection (IP Code) (IEC 60529.2001, IDT) GB/T 10682 double-ended fluorescent lamps - Performance requirements (GB/T 10682-2002, IEC 60081.1997, NEQ) GB/T 14094 halogen lamps (non - vehicle) - Performance requirements (GB/T 14094-2005, IEC 60357.2002, NEQ) GB/T 17262 Single-capped fluorescent lamps - Performance requirements (GB/T 17262-2002, IEC 60901.2000, NEQ) GB/T 21092 Miscellaneous lamp (GB/T 21092-2007, IEC 61549.2005, IDT) GB/T 21098 Lamp caps and test its safety and interchangeability of gauges - Part 4. Guidelines and general information (GB/T 21098-2007, IEC 60061-4.2004, IDT)

3 type and size

Lampholder models shall comply with GB/T 21098 of. ......
