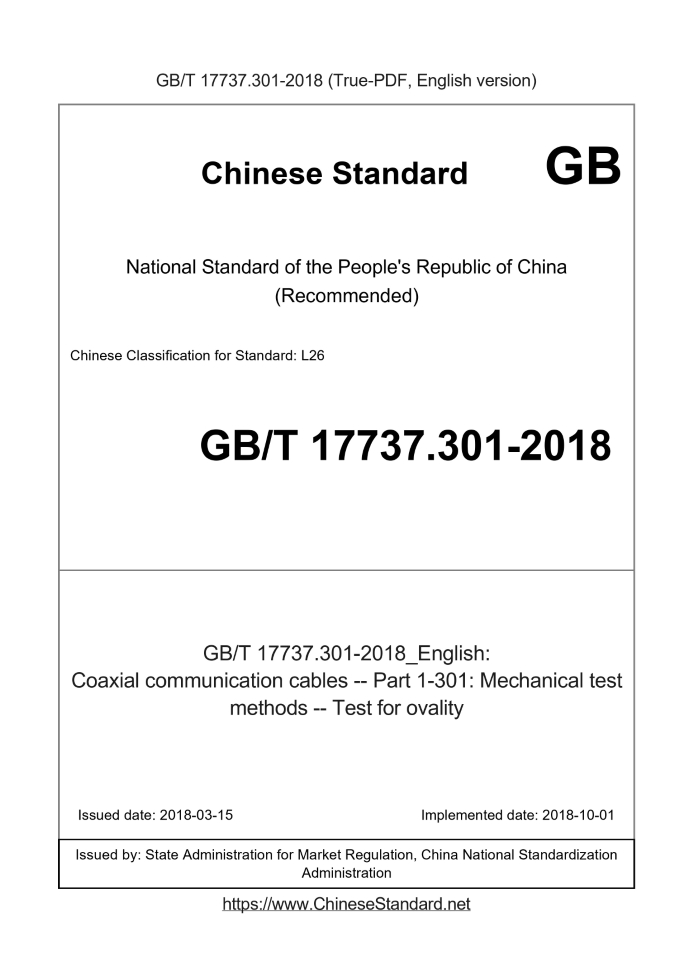

GB/T 17737.301-2018 English PDF

US$119.00 · In stock
Delivery: <= 2 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 17737.301-2018: Coaxial communication cables -- Part 1-301: Mechanical test methods -- Test for ovality
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 17737.301-2018	119	Add to Cart	2 days	Coaxial communication cables -- Part 1-301: Mechanical test methods -- Test for ovality	Valid

Similar standards

GB/T 17737.102   GB/T 17737.101   GB/T 17737.103   GB/T 17737.310   GB/T 17737.314   GB/T 17737.308

Basic data

Standard ID: GB/T 17737.301-2018 (GB/T17737.301-2018)
Description (Translated English): Coaxial communication cables -- Part 1-301: Mechanical test methods -- Test for ovality
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L26
Classification of International Standard: 33.120.10
Word Count Estimation: 6,632
Date of Issue: 2018-03-15
Date of Implementation: 2018-10-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 17737.301-2018: Coaxial communication cables -- Part 1-301: Mechanical test methods -- Test for ovality

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Coaxial communication cables--Part 1-301. Mechanical test methods--Test for ovality ICS 33.120.10 L26 National Standards of People's Republic of China Coaxial communication cable Section 1-301. Mechanical Test Methods Ellipticity test Part 1-301. Mechanical test methods-Testforovality (IEC 61196-1-301.2005, IDT) Published by.2018-03-15 2018-10-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration released

Foreword

GB/T 17737 "Coaxial Communication Cable" has or plans to issue the following parts. --- Part 1. General rules, definitions and requirements; --- Section 1-31 . Mechanical test methods ; Ellipticity test ; -- Part 1-302 . Mechanical test methods ; eccentricity test ; -- Part 1-304 . Mechanical test methods ; Impact test ; Part 1-108 . Mechanical test methods -- Tensile strength and elongation test of copper clad metal ; --- Part 1-310. Mechanical test methods Torsional characteristics of copper clad metal; --- Part 1-313. Mechanical test methods Adhesion of media and sheath; --- Part 1-314. Mechanical test methods Bending test of cables; --- Part 1-316. Mechanical test methods Maximum tensile strength test of cables; --- Part 1-317. Mechanical test methods Cable compression test; --- Sections 1-318. Mechanical test methods Thermal performance test; --- Part 1-324 . Mechanical test methods Cable abrasion resistance test ; --- Part 1-325 . Mechanical test methods Wind - induced vibration test ; This section is part 1-301 of GB/T 17737. This section was drafted in accordance with the rules given in GB/T 1.1-2009. This section uses the translation method equivalent to using IEC 61196-1-301.2005 "coaxial communication cable Part 1-301. mechanical test method Ellipticity test." The Chinese documents that have a consistent correspondence with the normatively quoted international documents in this section are as follows. ---GB/T 17737.1-2013 Coaxial telecommunication cables Part 1. General specifications General, definitions and requirements (IEC 61196-1. 2005, IDT). Please note that some of the contents of this document may involve patents. The issuing agency of this document does not assume responsibility for identifying these patents. This section was proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This part is under the jurisdiction of the National Standardization Technical Committee for High Frequency Cables and Connectors for Electronic Equipment (SAC/TC190). This section was drafted by the 23rd Institute of China Electronics Technology Corporation. The main drafters of this section. Zhou Jiyu, Zhu Ping, Zhai Zehui, Fang Xu and Tian Xin. Coaxial communication cable Section 1-301. Mechanical Test Methods Ellipticity test

1 Scope

This part of GB/T 17737 applies to coaxial communication cables. It stipulates the determination of the insulation, outer conductor and jacket or protection of coaxial cable Layer ovality test method.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article Pieces. For undated references, the latest version (including all amendments) applies to this document. IEC 61196-1 Coaxial Communication Cables Part 1. Generic Specification General, Definitions and Requirements (Coaxialcommunicationca- bles-Part 1.Generic specification-General,definitionsandrequirements)

3 Terms and definitions

The terms and definitions defined by IEC 61196-1 apply to this document.

4 Ellipticity test

4.1 Principle The ellipticity of the cable is determined by measuring two orthogonal diameters on the cross-section of the finished cable specimen. 4.2 Test Equipment The resolution of the instrument is 0.01mm. The following instruments can be used. --- Microscope. Can be read to the third decimal place; --- Projection measuring instrument. Magnification at least 10 times; --- Caliper; ---micrometer. 4.3 sample preparation Three specimens were taken from the finished cable, each specimen having a cut-off interval of at least 100 mm. According to the relevant sub-specification or detailed regulations Make sure that the cross-section of each specimen should be cut flat and carefully clean the burrs. 4.4 Procedures The outer diameter of the cable was measured twice for each cross-section and the diameters measured should be perpendicular to each other. Each time a measurement is taken, an appropriate position is selected. Both diameters are perpendicular to each other and give their maximum difference. ......
