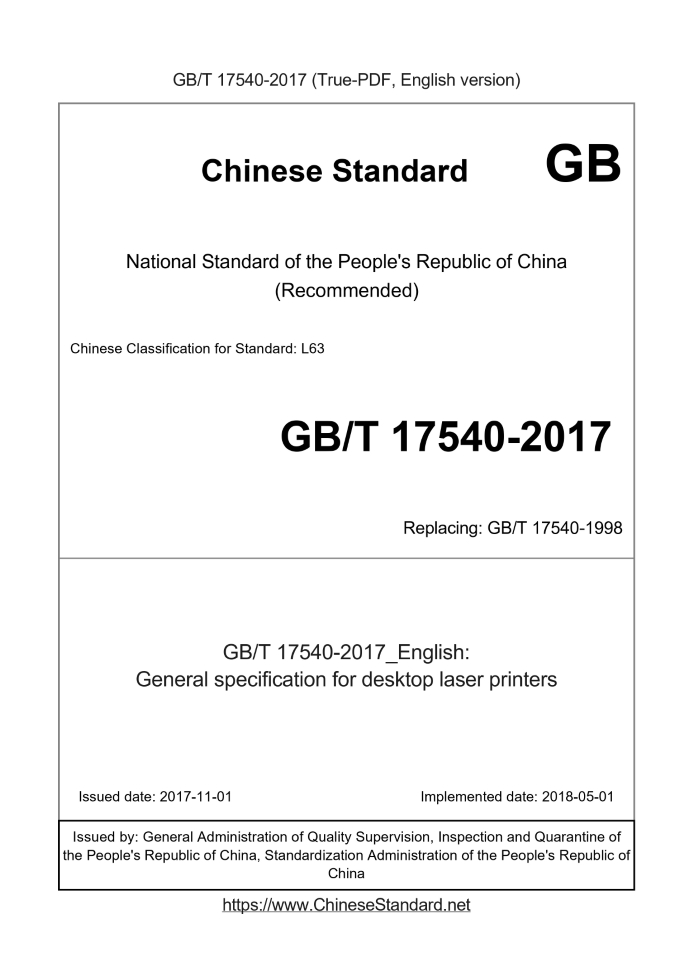

GB/T 17540-2017 English PDF

US$819.00 · In stock
Delivery: <= 9 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 17540-2017: General specification for desktop laser printers
Status: Valid

GB/T 17540: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 17540-2017	819	Add to Cart	9 days	General specification for desktop laser printers	Valid
GB/T 17540-1998	639	Add to Cart	3 days	General specification for desktop laser printer	Obsolete

Similar standards

GB/T 36092 GB/T 36101 GB/T 34973 GB/T 41182 GB/T 38621

Basic data

Standard ID: GB/T 17540-2017 (GB/T17540-2017)
Description (Translated English): General specification for desktop laser printers
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L63
Classification of International Standard: 35.180
Word Count Estimation: 41,496
Date of Issue: 2017-11-01
Date of Implementation: 2018-05-01
Older Standard (superseded by this standard): GB/T 17540-1998
Regulation (derived from): National Standard Announcement 2017 No. 29
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China

GB/T 17540-2017: General specification for desktop laser printers

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
General specification for desktop laser printers ICS 35.180 L63 National Standards of People's Republic of China Replace GB/T 17540-1998 Desktop laser printer general specification Released.2017-11-01 2018-05-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration issued

Content

Foreword III 1 Scope 1 2 Normative references 1 3 Terms and Definitions 2 4 Requirements 3 4.1 Design 3 4.2 Appearance and Structure 3 4.3 Main performance 3 4.4 Security 6 4.5 Power Adaptability 6 4.6 Electromagnetic Compatibility 6 4.7 Noise 6 4.8 Environmental Adaptability 7 4.9 Reliability and Lifetime 8 4.10 Energy efficiency 8 4.11 Restricted Substances Limited 8 4.12 Accessibility 8 5 Test method 8 5.1 Test conditions 8 5.2 Appearance and structure 9 5.3 Main performance 9 5.4 Security 13 5.5 Power Adaptability 13 5.6 Electromagnetic compatibility 14 5.7 Noise 14 5.8 Environmental adaptability 14 5.9 Reliability and Lifetime 16 5.10 Energy efficiency 16 5.11 Restricted Substances Limited 16 5.12 Accessibility 17 6 Quality assessment procedures 17 6.1 General provisions 17 6.2 Inspection classification 17 6.3 Stereotype test 17 6.4 Batch-by-batch inspection 18 6.5 Cycle test 18 7 Marking, packaging, transportation, storage 19 7.1 Mark 19 7.2 Packing 19 7.3 Transportation 19 7.4 Storage 19 Appendix A (Normative) Temperature and Humidity Range Requirements for Print Resolution and Print Quality 20 Appendix B (Normative) First set of printing time and multi-page printing speed test version 21 Appendix C (Normative Appendix) Monochrome Printer Print Preparation Time, First Page Print Time, and Continuous Print Speed Test Version 34 Appendix D (Normative) Color Printer Print Preparation Time, First Page Print Time, and Continuous Print Speed Test Version 35 Appendix E (Normative Appendix) Classification and Judgment 36

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 17540-1998 "General Specifications for Desktop Laser Printers". This standard is compared with GB/T 17540-1998. The main technical changes except editorial changes are as follows. --- Revised the "scope" (see Chapter 1, Chapter 1 of the.1998 edition); --- Added "terms and definitions", and changed the subsequent chapter number accordingly (see Chapter 3); --- Added "software", "print quality", "harmonic current", "transport adaptability of transport packages", "energy efficiency", "restricted substances limit" Requirements for “accessibility” (see 4.1.2, 4.3.1.7, 4.6.2, 4.8.3, 4.10, 4.11, 4.12); --- Added "Print Quality", "Harmonic Current", "Transportation Package Drop Adaptability", "Energy Efficiency", "Restricted Substance Limit", "Accessible" Test method (see 5.3.1.8, 5.6.2, 5.8.7, 5.10, 5.11, 5.12); --- Revised the "Quality Assessment Procedure" (see Chapter 6, Chapter 5 of the.1998 edition); --- Removed Appendix A "Laser Printer Control Command Line" (see Appendix A of the.1998 version); --- Added Appendix A "Printing Resolution and Temperature and Humidity Range Requirements for Print Quality", Appendix B "First Set Print Time and Multi-page Print Speed Test Edition", Appendix C "Monochrome Printer Print Preparation Time, Home Print Time and Continuous Print Speed Test Version" and Appendix Record D "color printer print preparation time, first page print time and continuous print speed test version", for subsequent appendix numbers The corresponding changes (see Appendix A, Appendix B, Appendix C, Appendix D). Please note that some of the contents of this document may involve patents. The issuing organization of this document is not responsible for identifying these patents. This standard is proposed and managed by the National Information Technology Standardization Technical Committee (SAC/TC28). This standard was drafted. China Electronics Technology Standardization Research Institute, Zhuhai Tianwei Pegasus Printing Consumables Co., Ltd., Fujian Shida Computer Design Equipment Co., Ltd., Lenovo (Beijing) Co., Ltd., Zhuhai Bentu Electronics Co., Ltd., Tianjin Optoelectronic Communication Technology Co., Ltd., Tianjin Copy Technology Institute, Shanghai Fuji Xerox Co., Ltd., Brother (China) Commercial Co., Ltd., Konica Minolta (China) Investment Co., Ltd., Lexmark Information Technology (China) Co., Ltd. Shenzhen Branch, Sharp Office Equipment (Changshu) Co., Ltd., Ricoh Image Technology (Shanghai) Co., Ltd. Shenzhen Branch, Nanjing Fujitsu Electronic Information Technology Co., Ltd., Aerospace Information Co., Ltd., Shenzhen Zhonghang Information Technology Industry Co., Ltd. Limited. The main drafters of this standard. Chen Hai, Li Yi Ang, Xu Yang, Qiao Huaixin, Chen Jing, Chi Hongming, Xu Haizhen, Fan Zhiguo, Zhuang Runmiao, Mei Shuangning, Cao Guanqun, Wang Haoyu, He Gang, Chen Ting, Li Jing, Wang Qiang, Liu Shengying, Yan Mingke, Sun Yongwen, Zhang Jian. The previous versions of this standard were released as follows. ---GB/T 17540-1998. Desktop laser printer general specification

1 Scope

This standard specifies the requirements, test methods, quality assessment procedures and marking, packaging, transportation and storage of desktop laser printers. This standard applies to the design and manufacture of desktop laser printers (hereinafter referred to as. products). This standard is the basis for the development of product standards. Other types of electrostatic imaging printers can be referred to.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 191 packaging storage and transportation icon GB/T 1988 Seven-digit coded character set for information technology information exchange GB/T 2421.1 Overview and guidelines for environmental testing of electrical and electronic products GB/T 2422 Environmental test test method preparation guidelines Terms and definitions GB/T 2423.1 Environmental testing of electrical and electronic products - Part 2. Test methods Test A. Low temperature GB/T 2423.2 Environmental testing of electric and electronic products - Part 2. Test method Test B. High temperature GB/T 2423.3 Environmental testing of electric and electronic products - Part 2. Test method test Cab. constant damp heat test GB/T 2423.5 Environmental testing of electric and electronic products - Part 2. Test methods Test Ea and guide. Impact GB/T 2423.10 Environmental testing of electric and electronic products - Part 2. Test method test Fc. Vibration (sinusoidal) GB/T 4857.2-2005 Basic test for packaging and transport packages - Part 2. Temperature and humidity adjustment GB/T 4857.5 packaging and transportation package drop test method GB 4943.1 Safety of information technology equipment - Part 1. General requirements GB/T 5080.7 Equipment reliability test Verification efficiency test plan for failure rate and mean time between failures under the assumption of constant failure rate GB/T 5271.14 Information technology vocabulary Part 14. Reliability, maintainability and availability GB/T 9254 Radio disturbance limits and methods of measurement for information technology equipment GB/T 11460 information technology Chinese character font requirements and detection methods GB/T 15934 electrical accessories wire assembly and interconnecting wire assembly GB/T 16685-2008 Information technology - Measuring methods for the throughput of printing equipment - 1 (ISO /IEC 10561.1999, IDT) GB/T 17618 Information technology equipment immunity limits and methods of measurement GB 17625.1-2012 Electromagnetic compatibility limit harmonic current emission limit (device input current per phase ≤ 16A) GB 18030 Information Technology Chinese Coded Character Set GB/T 18313-2001 Measurement of airborne noise of acoustic information technology equipment and communication equipment GB/T 18455 packaging recycling mark GB 21521 Copier, printer and fax machine energy efficiency limit and energy efficiency rating GB/T 22372 monochrome black and white laser printer test version GB/T 26125 Determination of six restricted substances (lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls and polybrominated diphenyl ethers) GB/T 26572 Limit requirements for restricted substances in electrical and electronic products GB/T 28033 monochrome laser printer printing quality evaluation method GB/T 32417 Information Technology Accessibility Guidelines for Office Equipment for the Elderly and Disabled GB/T 34969 color laser printer beta GB/T 34970 color laser printer print quality test method ISO /IEC 19752 information technology office equipment monochrome electronic imaging printers and drums for multifunction devices containing printing components Method for measuring the output of a powder box (Informationtechnology-Officeequipment-Methodforthedetermina- Tionoftonercartridgeyieldformonochromaticelectrophotographicprintersandmulti-functiondevices Thatcontainprintercomponents) ISO /IEC 24712 color test version measuring office equipment consumption (Colourtestpagesformeasurementof Officeequipmentconsumableyield)

3 Terms and definitions

The following terms and definitions apply to this document. 3.1 Laser printer laserprinter An electrostatic imaging printer using a laser source. 3.2 Print area printablearea The location and size of the product that can be printed on the media. 3.3 Print speed printspeed The number of pages of the test sample printed per minute of the product. Note. The unit is page per minute (ppm). 3.4 First set of printing time firstsetouttime FSOT The time required to complete the output from the time the print order is issued until the first set of prints (standard test sample). Note 1. The unit is seconds (s). Note 2. The first set of printing time is equivalent to the FSOT of ISO /IEC 24734. 3.5 Multi-page print speed multi-pagesprintingspeed The product prints the number of pages of standard test proofs in different file formats per minute. Note 1. The unit is page per minute (ppm). Note 2. The multi-page printing speed is equivalent to the ESAT of ISO /IEC 24734. 3.6 Print preparation time getreadytimeforprint The time from when a print order is issued to when the pickup roller starts to operate. Note. The unit is seconds (s). 3.7 Home print time firstprintouttime Start from the pickup roller and go to the first page of the print (standard test sample) to fully output the required time. Note. The unit is seconds (s). 3.8 Continuous printing speed continuousprintingspeed The product prints the number of pages in the standard test version per minute. Note. The unit is page per minute (ppm). 3.9 Print resolution printresolution The number of points that can be printed per unit length. Note 1. The unit is dots per mm (dot/mm) or dots per inch (dpi). Note 2. The print resolution includes the physical resolution without interpolation and the interpolation resolution after interpolation. 3.10 Nominal resolution The resolution of the product given in the product manual is by default. Note. The nominal resolution can be physical resolution or interpolation resolution.

4 requirements

4.1 Design 4.1.1 Hardware When designing products, safety, electromagnetic compatibility, ease of use, reliability, and maintainability should be designed. If you design a serialized product, then The principles of generalization, standardization, modularity, and upward compatibility should be followed. The hardware system should have appropriate logic, and the hardware system should have A certain self-test function. 4.1.2 Software Product drivers and random software for product configurations should be consistent with the descriptions in the instructions. 4.2 Appearance and structure The appearance and structure of the product shall meet the following requirements. a) There should be no obvious dents, scratches, cracks, deformation and contamination on the surface of the product. The surface coating should be uniform and should not be foamed or cracked. Shedding, wear and other mechanical damage. Metal parts should not be corroded or mechanically damaged. The edge of the contact area of the operator The edge or corner should be rounded or polished. There should be no catastrophic discontinuities at the edges or corners. b) Each operation switch and button should be flexible, reliable and convenient. The selector switch for the user should be easy to operate. Paper loading and unloading toner cartridge It should be possible to do it manually without the aid of special tools. Both the alarm and the paper end indicator should be placed in a prominent position. c) The text, symbols and logos indicating the function should be correct, clear and correct, and in accordance with the corresponding national standards. 4.3 Main performance 4.3.1 Printing Features 4.3.1.1 Print area The print area of the product should be measured by margins. The upper, lower, left and right margins of the product on different media sizes shall be specified by the product standard in millimeters (mm). 4.3.1.2 Print resolution The print resolution of the product is specified by the product standard. The physical resolution and interpolation resolution of the horizontal and vertical directions of the product should be clarified in the product standard (when interpolation processing is present). In the temperature and humidity range specified in Figure A.1, the line pair resolution, the finest line number and the test sample on the nominal resolution are printed. The minimum Chinese character size should meet the requirements of Table 1. Table 1 Quality requirements for nominal resolution on test samples Nominal resolution Dpi Pair resolution color 1/25.4mm monochrome 1pt/mm The thinnest line number is the smallest Chinese character size 300 150 3 85 Fifth 400.200 4 63 5 600 300 6 42 Small 5 1200 400 8 42 Sixth 2400 400 8 42 Sixth Note 1. The nominal resolution in the table indicates the nominal resolution of the horizontal or vertical direction of the product, corresponding to the horizontal or vertical alignment and the thin line number. Note 2. When the nominal resolutions of the horizontal and vertical directions are not equal, the corresponding font size is at a lower nominal resolution. Note 3. The resolution of the pair is 150,.200, 300, 400, the unit is 1/25.4mm, which is suitable for the color laser printer test version specified in GB/T 34969; For resolutions of 3, 4, 6, and 8, the unit is 1pt/mm, which is suitable for the test version of the monochrome black and white laser printer specified in GB/T 22372. Note 4. The test version specified in GB/T 34969 is applicable to the evaluation of the thinnest wire number and the minimum Chinese character size of monochrome and color products, among which color products Printed in grayscale print mode (also known as black and white print mode, print only black mode, etc.), evaluated in black. 4.3.1.3 Printing speed 4.3.1.3.1 First set print time and multi-page print speed The first set of printing time of the product should be specified by the product standard in seconds (s). The multi-page print speed of the product should be specified by the product standard in pages per minute (ppm). If the product standard of a color product specifies the first set of printing time or multi-page printing speed of the product, the gray mode and color mode should be separately listed. The first set of print time or multi-page print speed. 4.3.1.3.2 Print preparation time, first page print time and continuous print speed The print preparation time of the product is specified by the product standard in seconds (s). The test conditions for the print preparation time shall be indicated by the product manufacturer in the test report or product publication. The product's first page print time is specified by the product standard in seconds (s). The continuous print speed of the product is specified by the product standard in pages per minute (ppm). Color products should list the first page print time and continuous print speed in grayscale mode and color mode, respectively, in the product standard. 4.3.1.4 Printing media The print media for the product is specified by the product standard. Print media suitable for the product, such as. copy paper, film, envelopes, labels, etc., should comply with the relevant standards. The maximum media size for the product is specified by the product standard. 4.3.1.5 Double-sided printing If the product has a double-sided printing function, the specific requirements of its function are stipulated by the product standard. 4.3.1.6 Character set and font Products such as installation fonts, at least should support GB/T 1988 and GB 18030 mandatory part, Chinese character dot matrix fonts should comply with relevant national standards Standards for industry standards. For products such as vector kanji fonts, vector kanji fonts should meet the following requirements. a) The pen shape should be standardized, the structure should be reasonable, and the style should be consistent; b) The generated low lattice (below 24 dots, including 24 dots) whose strokes should be consistent with the corresponding low lattice standards; c) the adjacent strokes are not glued (excluding the connected strokes); d) the key points on the vector font boundary and the line and dot matrix fonts are consistent; e) Vector font edges are smooth and arbitrarily scaled without distortion. 4.3.1.7 Quality of printed products Within the temperature and humidity range specified in Figure A.1, the quality of the printed product of the product shall comply with the requirements of Table 2. Table 2 Laser printer print quality requirements Serial number test project unit technical requirements

1 Skewness mm is specified by product standards

2 Straightness - specified by product standards

3 Diagonal error mm is specified by product standard

4 Parallelism mm is specified by product standards

5 Alignment mm is specified by the product standard

6 Magnification - stipulated by product standards

7 Scanning linear mm is specified by the product standard

8 sets of color error mm specified by product standards

9 Image density - specified by product standards 10 Density non-uniformity - C, M, Y. ≤ 25%, K. ≤ 20% 11 color density change - C, M, Y, K. ≤ 0.2 12 bottom ash - ≤ 0.02 (reflectance density meter) or ≤ 2.5 (whiteness meter) 13 color points < φ0.3mm. not counting Φ0.3mm~φ0.6mm. ≤15 >φ0.6mm. not allowed 14 white spots < φ0.3mm. not counting Φ0.3mm~φ0.8mm. ≤15 >φ0.8mm. not allowed 15 Fixing fastness - ≥90% 16 gray level C. ≥ 8; M. ≥ 8; Y. ≥ 6; K. ≥ 8 Note 1. C---cyan; M---magenta; Y---yellow; K---black. Note 2. “-” indicates that there is no unit of measurement for this inspection item. 4.3.2 Interface The product shall have at least one of a parallel interface, a universal serial bus interface, an Ethernet interface or a wireless interface, and shall conform to the phase Should be in accordance with the standard. 4.3.3 Alarms The product should issue an alarm signal ......
