GB/T 16462.5-2017: Test conditions for numerically controlled turning machines and turning -- Part 5: Accuracy of feeds, speeds and interpolations
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 16462.5-2017	219	Add to Cart	3 days	Test conditions for numerically controlled turning machines and turning -- Part 5: Accuracy of feeds, speeds and interpolations	Valid

Similar standards

GB/T 17587.3 JB/T 12396 GB/T 4346 GB/T 16462.2 GB/T 16462.1 GB/T 16462.6

Basic data

Standard ID: GB/T 16462.5-2017 (GB/T16462.5-2017)
Description (Translated English): Test conditions for numerically controlled turning machines and turning -- Part 5: Accuracy of feeds, speeds and interpolations
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J53
Classification of International Standard: 25.040.20
Word Count Estimation: 11,128
Date of Issue: 2017-07-12
Date of Implementation: 2018-02-01
Quoted Standard: GB/T 17421.1-1998; ISO 230-4-2005
Adopted Standard: ISO 13041-5-2006, MOD
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the speed of the spindle of the CNC lathe and the turning center, the feed rate of each NC linear axis, and the motion accuracy of the trajectories generated by simultaneous movement of two or more linear axes and / or rotary axes. This standard is applicable to the feed rate, speed and interpolation accuracy of CNC lathes and turning centers (including CNC horizontal spindle machines, CNC vertical spindle machines and CNC inverted vertical spindle machines).

GB/T 16462.5-2017: Test conditions for numerically controlled turning machines and turning -- Part 5: Accuracy of feeds, speeds and interpolations

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

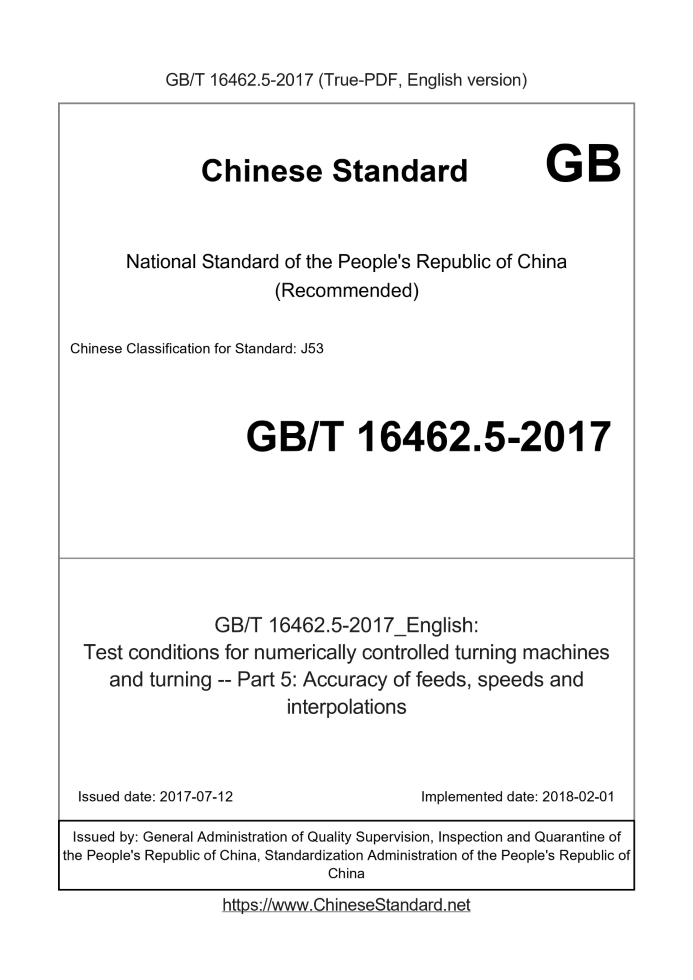

Test conditions for numerically controlled turning machines and turning. Part 5. Accuracy of feeds, speeds and interpolations ICS 25.040.20 J53 National Standards of People's Republic of China CNC lathe and turning center inspection conditions Part 5. Verification of feedrate, speed and interpolation accuracy Part 5.Accuracyoffeeds, speedsandinterpolations (ISO 13041-5.2006, MOD) 2017-07-12 Posted 2018-02-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China China National Standardization Administration released

Foreword

GB/T 16462 "CNC lathe and turning center inspection conditions" is divided into eight parts. --- Part 1. Horizontal machine geometry accuracy test; --- Part 2. Vertical machine geometry accuracy test; --- Part 3. Inverted vertical machine geometry accuracy test; --- Part 4. Linear and rotary axis positioning accuracy and repeat positioning accuracy test; --- Part 5. Feed, speed and interpolation accuracy test; --- Part 6. Precision test precision test pieces; --- Part 7. Evaluation of the contour characteristics in the coordinate plane; --- Part 8. Assessment of thermal deformation. This section GB/T 16462 Part 5. This section drafted in accordance with GB/T 1.1-2009 given rules. This section uses the redrafted law revision using ISO 13041-5.2006 "CNC lathe and turning center inspection conditions Part 5. Into Rate, speed and interpolation accuracy test. " This part of ISO 13041-5.2006 technical differences and the reasons are as follows. --- The international standard K5 test tolerance in the "0.15,0.25" were revised to "0.05,0.07", the international standard indicators are too low, modify After more in line with the actual situation of the machine. This section there are technical differences with ISO 13041-5.2006, the provisions of these differences have been passed in the margins of its outer margin The vertical single (|) is marked. This part is proposed by China Machinery Industry Federation. This part of the National Standardization Technical Committee metal cutting machine (SAC/TC22) centralized. This part of the drafting unit. Shenyang Machine Tool (Group) Co., Ltd., State Machine Tool Quality Supervision and Inspection Center, Anyang Xinsheng Machine Tool Shares Co., Ltd., Baoji Machine Tool Group Co., Ltd., Zhejiang Zhicheng Precision Machine Tool Technology Co., Ltd., Ningxia Xinrui Great Wall Machine Co., Ltd.. The main drafters of this section. Wang Xinghai, Li Jun, Li Xiangwen, Wang Yuping, Wang Peng, Pan Zhicheng, Ling Ze Run. CNC lathe and turning center inspection conditions Part 5. Verification of feedrate, speed and interpolation accuracy

1 Scope

GB/T 16462 provisions of this part of the CNC lathe and turning center spindle speed, each CNC linear axis feed rate and two Or more than two linear axes and/or rotary axes simultaneously generated motion accuracy test. This section applies to CNC lathes and turning centers (including CNC horizontal spindle machine, CNC vertical spindle machine and CNC upright main Axis machine) feedrate, speed and interpolation accuracy test.
