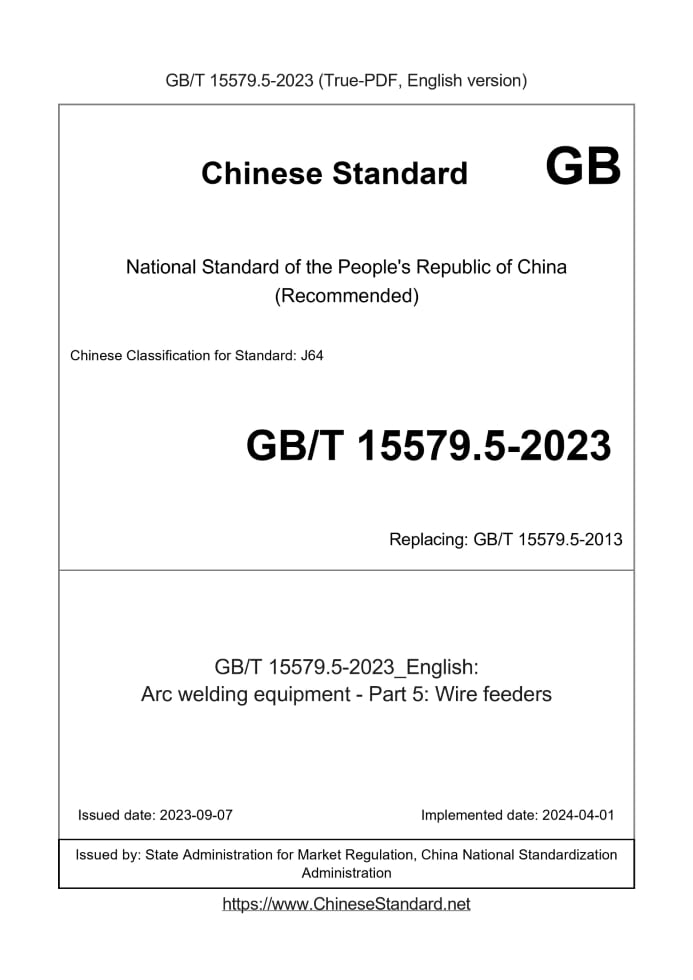

GB/T 15579.5-2023: Arc welding equipment - Part 5: Wire feeders
Status: Valid

GB/T 15579.5: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 15579.5-2023	404	Add to Cart	4 days	Arc welding equipment - Part 5: Wire feeders	Valid
GB 15579.5-2013	679	Add to Cart	4 days	[GB/T 15579.5-2013] Arc welding equipment -- Part 5: Wire feeders	Obsolete
GB/T 15579.5-2005	639	Add to Cart	3 days	Arc Welding Equipment -- Part 5: Wire feeders	Obsolete

Similar standards

GB/T 41861   GB/T 40337   GB/T 35091   GB/T 15579.1   GB/T 15579.7   GB/T 15579.14

Basic data

Standard ID: GB/T 15579.5-2023 (GB/T15579.5-2023)
Description (Translated English): Arc welding equipment - Part 5: Wire feeders
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J64
Classification of International Standard: 25.160.30
Word Count Estimation: 22,289
Date of Issue: 2023-09-07
Date of Implementation: 2024-04-01
Older Standard (superseded by this standard): GB/T 15579.5-2013
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 15579.5-2023: Arc welding equipment - Part 5: Wire feeders

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
ICS 25.160.30 CCSJ64 National Standards of People's Republic of China Replace GB/T 15579.5-2013 Arc welding equipment part 5.wire feeding device (IEC 60974-5.2019,IDT) Published on 2023-09-07 2024-04-01 Implementation State Administration for Market Regulation Released by the National Standardization Administration Committee

Table of contents

Preface III Introduction V 1 Scope 1 2 Normative reference documents 1 3 Terms and Definitions 1 4 Environmental conditions 2 5 Test 2 5.1 Test conditions 2 5.2 Measuring instruments 3 5.3 Conformity of components3 5.4 Type test 3 5.5 Routine inspection 3 6 Protection against electric shock 3 6.1 Insulation 3 6.2 Protection against electric shock during normal use (direct contact) 3 6.3 Protection against electric shock in case of accident (indirect contact) 4 6.4 Power supply for external equipment connected to the welding circuit 5 6.5 Overcurrent protection of input circuit 5 6.6 Cable fixing device 5 6.7 Auxiliary power output 5 6.8 Cable entry hole 5 6.9 Welding circuit connection 6 6.10 Control loop 6 6.11 Insulation of lifting equipment 6 7 Liquid cooling system 6 8 Protective gas supply 6 9 Thermal performance requirements 7 10 Unconventional operations 7 10.1 General requirements 7 10.2 Fan stall test 7 11 Mechanical requirements 8 11.1 Wire feeding device 8 11.2 Housing 8 11.3 Lifting device 8 11.4 Drop 8 11.5 Tilt stability8 11.6 Welding wire supply device 8 11.7 Wire feeding 9 11.8 Protection against mechanical hazards 9 12 Nameplate 9 12.1 General 9 12.2 Note 10 12.3 Content 10 13 Wire feed speed indication10 14 Instructions for use and markings11 14.1 User Manual 11 14.2 Identification 11 Appendix A (normative) Determination of wire feed speed change rate 12 A.1 Change rate of wire feed speed caused by load change12 A.2 Change rate of wire feed speed caused by changes in input voltage12 A.3 Change rate of wire feed speed caused by temperature change12 Appendix B (informative) Example of nameplate of split wire feeder 13 Reference 14 Figure 1 Principles for nameplate compilation of split wire feeder 10 Figure B.1 Split wire feeding device 13 Table 1 Minimum protection level 4

Foreword

This document complies with the provisions of GB/T 1.1-2020 "Standardization Work Guidelines Part 1.Structure and Drafting Rules of Standardization Documents" Drafting. This document is Part 5 of GB/T 15579 "Arc Welding Equipment". GB/T 15579 has released the following parts. ---Part 1.Welding power source; ---Part 2.Liquid cooling system; ---Part 3.Arc starting and arc stabilizing devices; ---Part 4.Periodic inspection and testing; ---Part 5.Wire feeding device; ---Part 6.Load limiting equipment; ---Part 7.Welding torch (gun); ---Part 8.Gas circuit devices for welding and plasma cutting systems; ---Part 9.Installation and use; ---Part 10.Electromagnetic compatibility (EMC) requirements; ---Part 11.Welding clamps; ---Part 12.Welding cable coupling device; ---Part 13.Welding clamps; ---Part 14.Calibration, validation and consistency testing. This document replaces GB/T 15579.5-2013 "Arc Welding Equipment Part 5.Wire Feeding Device" and is consistent with GB/T 15579.5-2013 In addition to structural adjustments and editorial changes, the main technical changes are as follows. a) The scope of application of the standard deletes "This part does not apply to wire feeding devices for non-professionals in IEC 60974-6" (2013 version of Chapter 1); b) Delete terms and definitions such as extrusion area and welding wire (see Chapter 3 of the.2013 edition); c) Added requirements for pressure measuring instruments and modified accuracy requirements for electrical measuring instruments (see 5.2, 5.2 of the.2013 edition); d) Enclosure protection adds the use of IEC 60529 test procedures and conditions, and compliance test requirements for enclosure drainage (see 6.2.1); e) Protection against electric shock adds requirements such as the contact current of the welding circuit and the contact current under general conditions (see Chapter 6); f) Added non-routine operation requirements (see Chapter 10). This document is equivalent to IEC 60974-5.2019 "Arc Welding Equipment Part 5.Wire Feeding Device". Please note that some content in this document may be subject to patents. The publisher of this document assumes no responsibility for identifying patents. This document is proposed by the China Electrical Equipment Industry Association. This document is under the jurisdiction of the National Welding Machine Standardization Technical Committee (SAC/TC70). This document was drafted by. Nantong Zhenkang Welding Mechanical and Electrical Co., Ltd., Shanghai General Electric Welding Machine Co., Ltd., Shanghai Hugong Welding Group Co., Ltd., Chengdu Xionggujiashi Electric Co., Ltd., Tangshan Panasonic Industrial Machinery Co., Ltd., Beimler Precision Electromechanical (Xiamen) Co., Ltd. Company, Shenzhen Megmeet Welding Technology Co., Ltd., Zhejiang Zhongwelian Technology Co., Ltd., Renqiu Jingheng Welding Cable Co., Ltd., Hangzhou Zhou Kelda Welding Robot Co., Ltd., Chongqing Kemil Power Machinery Co., Ltd., Zhimide Co., Ltd., Chengdu Sanfang Electric Co., Ltd. The main drafters of this document. Tang Zikang, Chen Zhengang, Shu Zhenyu, He Yaning, Ji Haiyang, Zheng Meibo, He Zhijun, Cheng Haojian, Wang Wantu, Hou Runshi, Song Zefeng, Zhang Zhaorui, Huang Zhen. The previous versions of this document and the documents it replaces are as follows. ---First published as GB/T 15579.5-2005 in.2005, first revised in.2013; ---This is the second revision.

Introduction

Arc welding equipment mainly includes power supplies powered by power grids or batteries, as well as mechanical devices driven by arc welding and similar processes (such as arc welding Power supply and plasma cutting system, etc.), auxiliary equipment, welding accessories, etc. GB/T 15579 "Arc Welding Equipment" stipulates the safety requirements, performance requirements and electromagnetic compatibility requirements of arc welding equipment, and consists of 14 parts composition. ---Part 1.Welding power source. The purpose is to specify the safety requirements and performance requirements of welding power sources. ---Part 2.Liquid cooling systems. The purpose is to specify the safety requirements and structure of the liquid cooling system of the auxiliary equipment welding torch (gun). structural requirements. ---Part 3.Arc starting and arc stabilizing devices. The purpose is to specify the safety requirements for arc starting and arc stabilizing devices of auxiliary equipment. ---Part 4.Periodic inspection and testing. The purpose is to specify the periodic inspection and test procedures for welding power sources and to ensure that after maintenance electrical safety requirements. ---Part 5.Wire feeding device. The purpose is to specify the safety requirements and performance requirements for wire feed devices of welding accessories. ---Part 6.Load limiting equipment. The purpose is to provide for connection to a single-phase public low-voltage supply system and to be designed for use by non-professionals. Safety requirements and performance requirements for arc welding and cutting power sources and auxiliary devices with limited loads intended for use. ---Part 7.Welding torch (gun). The purpose is to specify the safety requirements and structural requirements for welding accessories welding torches (guns). ---Part 8.Gas circuit devices for welding and plasma cutting systems. The purpose is to provide for auxiliary equipment flammable gas or oxygen Safety requirements and performance requirements for gas circuit devices. ---Part 9.Installation and use. The purpose is to specify the requirements for the installation and use of arc welding equipment. ---Part 10.Electromagnetic compatibility (EMC) requirements. The purpose is to specify the electromagnetic compatibility requirements for arc welding power sources and auxiliary equipment. ---Part 11.Welding pliers. The purpose is to specify the safety requirements and performance requirements for welding accessories and welding clamps. ---Part 12.Welding cable coupling devices. The purpose is to specify the safety requirements and performance of welding accessories and welding cable coupling devices Require. ---Part 13.Welding clamps. The purpose is to specify the safety requirements and performance requirements for welding accessories and welding clamps. ---Part 14.Calibration, validation and consistency testing. The purpose is to specify the validation requirements for arc welding and its external monitoring equipment and arc Requirements such as actual verification operation of welding equipment. Arc welding equipment part 5.wire feeding device

1 Scope

This document specifies the safety requirements and performance requirements for wire feed devices used in arc welding and similar processes for industrial and professional use. This document applies to split-type (separate from the welding equipment), integrated (installed in a single enclosure or together with other welding equipment in wire feed device or wire feed control device in a separate housing). The wire feed unit can be used with either a manual or mechanically guided welding torch. This document does not apply to welding torches with wire spools in IEC 60974-7. Note 1.Typical similar processes include arc cutting and spraying. Note 2.This document does not include the electromagnetic compatibility (EMC) requirements specified in IEC 60974-10.

2 Normative reference documents

The contents of the following documents constitute essential provisions of this document through normative references in the text. Among them, the dated quotations For undated referenced documents, only the version corresponding to that date applies to this document; for undated referenced documents, the latest version (including all amendments) applies to this document. Note. GB/T 2900.73-2008 Electrical Terminology Grounding and Electric Shock Protection (IEC 60050-195.1998, MOD) Note. GB/T 4208-2017 Enclosure protection level (IP code) (IEC 60529.2013, IDT) power sources) Note 1.There is no technical difference between the quoted content of IEC 60974-1.2021 and the quoted content of IEC 60974-1.2017/AMD1.2019. Note 2.GB/T 15579.1-2013 Arc welding equipment Part 1.Welding power source (IEC 60974-1.2005, IDT) Note. GB/T 15579.7-2023 Arc welding equipment Part 7.Welding torch (gun) (IEC 60974-7.2019, IDT) IEC 60974-10 Arc welding equipment Part 10.Electromagnetic compatibility (EMC) requirements [Arcweldingequipment-Part 10. Note. GB/T 15579.10-2020 Arc welding equipment Part 10.Electromagnetic compatibility (EMC) requirements (IEC 60974-10.2015, IDT) Note. GB/T 17045-2020 General parts of electric shock protection devices and equipment (IEC 61140.2016, IDT)

3 Terms and definitions

The following terms and definitions defined in IEC 60050-195, IEC 60974-1, IEC 60974-7 apply to this document. ISO and IEC publish terminology databases for standardization at. ......
