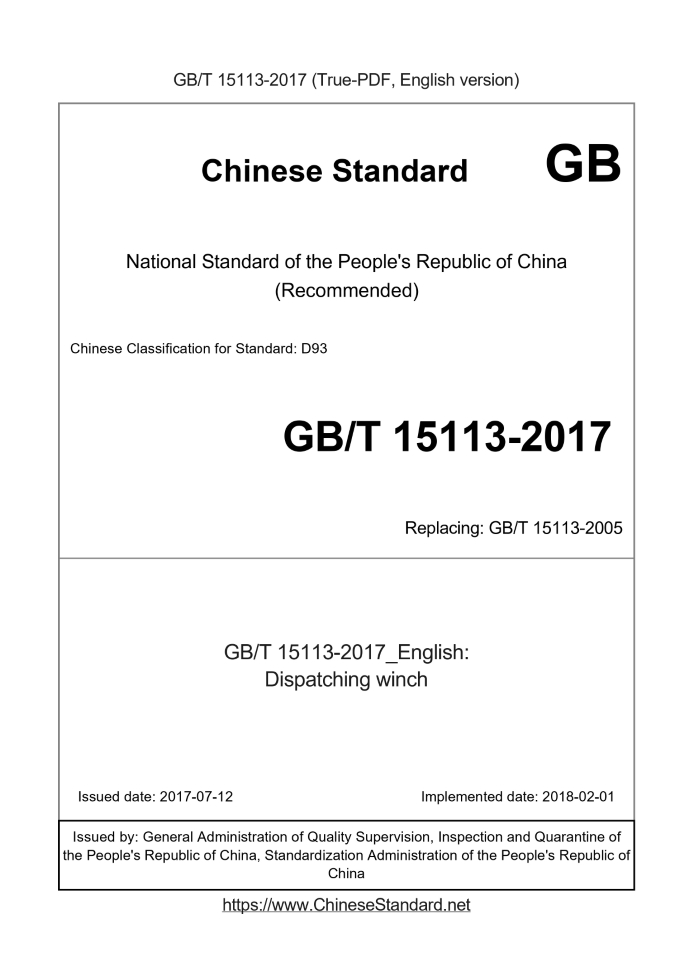

GB/T 15113-2017 English PDF

US$119.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 15113-2017: Dispatching winch
Status: Valid

GB/T 15113: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 15113-2017	119	Add to Cart	3 days	Dispatching winch	Valid
GB/T 15113-2005	239	Add to Cart	3 days	Dispatching winch	Obsolete
GB/T 15113-1994	239	Add to Cart	2 days	Dispatching winch	Obsolete

Similar standards

GB/T 4652   GB/T 13344   MT/T 716   GB/T 25707   GB/T 15112

Basic data

Standard ID: GB/T 15113-2017 (GB/T15113-2017)
Description (Translated English): Dispatching winch
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: D93
Classification of International Standard: 73.100.40
Word Count Estimation: 6,634
Date of Issue: 2017-07-12
Date of Implementation: 2018-02-01
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China

GB/T 15113-2017: Dispatching winch

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Dispatching winch ICS 73.100.40 D93 National Standards of People's Republic of China Replace GB/T 15113-2005 Dispatch winch 2017-07-12 released 2018-02-01 Implementation General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China China National Standardization Management Committee released

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 15113-2005 "Dispatch winch". Compared with GB/T 15113-2005, in addition to editorial changes in the main skills The technical changes are as follows. - modified the product model representation, in which the "design modification serial number" content (see 3.2,.2005 version 3.2); - Removed the requirements and inspection of the reducer cleanliness (see 4.8 and 5.10 in.2005); - Increased requirements for dispatching winch raw materials, standard parts, purchased parts, common parts, wearing parts, spare parts and so on (see 4.3 and 4.4); - increased requirements for dispenser explosion protection (see 4.5); - Added for explosion-proof applications, the brake material of the winch shall have the requirements for flame-retardant antistatic properties and the safety of friction sparks (see 4.6); --- modified the factory inspection content, in the content added "raw materials, standard parts, purchased parts, common parts, wearing parts, spare parts and Explosion-proof "aspects of the factory test (see 6.2.2,.2005 version 6.2.2). This standard is proposed by the China Machinery Industry Federation. This standard by the National Mining Machinery Standardization Technical Committee (SAC/TC88) centralized. This standard is responsible for drafting units. Xuzhou Mine Equipment Manufacturing Co., Ltd. This standard participates in the drafting unit. Shanxi Xinfu Sheng Machinery Manufacturing Co., Ltd., Jinan Heavy Industry Co., Ltd., Shandong Laiwu Coal Mine Machinery Limited company. The main drafters of this standard. Chen Dengyuan, Zhang Lanjun, Bian Jing, Wang Shubo, Liu Quan, Wang Yadong. This standard replaced the previous version of the standard release. GB/T 15113-1994, GB/T 15113-2005. Dispatch winch

1 Scope

This standard specifies the type and basic parameters of the dispatching winch, technical requirements, test methods, inspection rules, signs, instruction manual, package Equipment, transportation and storage. This standard applies to coal mine and other mining facilities scheduling trailer with the scheduling winch (hereinafter referred to as "winch").

2 normative reference documents

The following documents are indispensable for the application of this document. For dated references, only the dated edition applies to this article Pieces. For undated references, the latest edition (including all modifications) applies to this document. GB/T 191 packaging and storage icon GB/T 3768 Acoustic vocal pressure method for the determination of noise sources Sound power level Reflective surface above the use of envelope measurement of the surface of the simple method GB 3836.1 Explosive atmospheres - Part 1. General requirements for equipment GB 3836.2 Explosive atmospheres - Part 2. Equipment protected by flameproof enclosure "d" Anti - rust packaging GB/T 4879 General rules for the use of industrial products GB/T 9969 GB/T 13306 signs General specification for packaging of electromechanical products GB/T 13384 Test method and judgment rules for friction spark safety of metallic materials for coal mines GB/T GB .20180 mine auxiliary winch safety requirements Method for compiling model of mining machinery products GB/T General Test Method and Judgment Rules for Flame Retardant Antistatic Properties of Polymeric Products for MT113 Coal Mine Coal mine safety regulations (State Administration of Work Safety)

3 type and basic parameters

3.1 winch working mechanism for the reel winding type, transmission type for the planetary gear drive. 3.2 winch models should be consistent with the provisions of GB/T 25706. The model number is as follows. J D □ □ Design modified serial number (A, C, D,) Outer wire rope maximum static tension, 10kN Dispatch winch (degrees) Hoist class (roll) Tag example Outer wire rope with a maximum static tension of 25kN scheduling winch, marked as. JD-2.5 Dispatch winch 3.3 The basic parameters of the winch shall comply with the provisions of Table 1. ......
