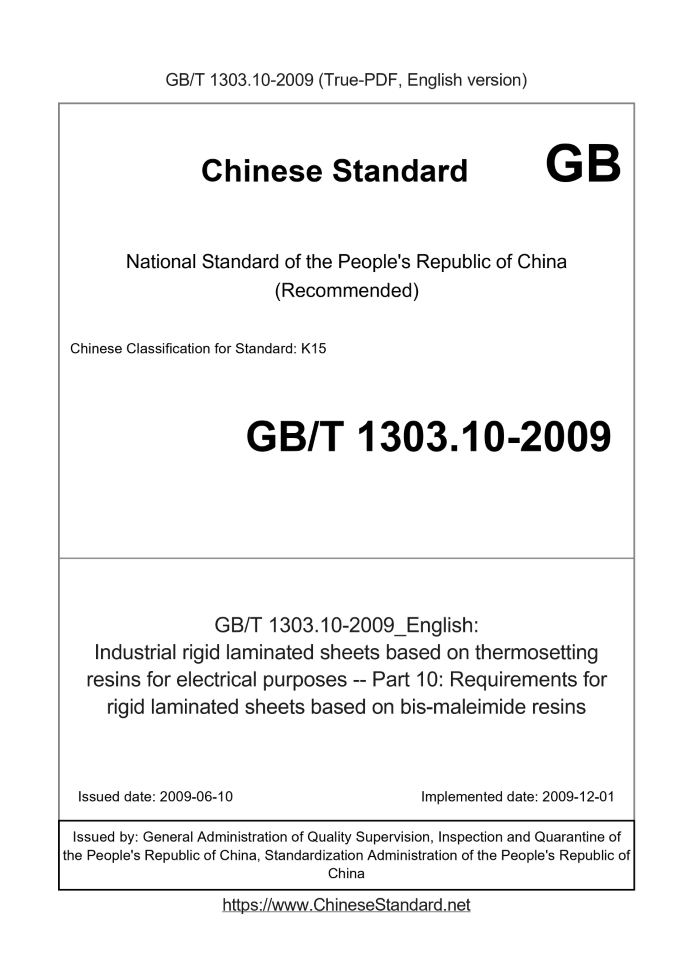

GB/T 1303.10-2009 English PDF

US$279.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 1303.10-2009: Industrial rigid laminated sheets based on thermosetting resins for electrical purposes -- Part 10: Requirements for rigid laminated sheets based on bis-maleimide resins
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 1303.10-2009	279	Add to Cart	3 days	Industrial rigid laminated sheets based on thermosetting resins for electrical purposes -- Part 10: Requirements for rigid laminated sheets based on bis-maleimide resins	Valid

Similar standards

GB/T 1408.1   GB/T 1408.2   GB/T 1408.3   GB/T 1303.12   GB/T 1303.5   GB/T 1303.1

Basic data

Standard ID: GB/T 1303.10-2009 (GB/T1303.10-2009)
Description (Translated English): Industrial rigid laminated sheets based on thermosetting resins for electrical purposes -- Part 10: Requirements for rigid laminated sheets based on bis-maleimide resins
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K15
Classification of International Standard: 29.035.01
Word Count Estimation: 12,180
Date of Issue: 2009-06-10
Date of Implementation: 2009-12-01
Quoted Standard: GB/T 1303.1-2009; GB/T 1303.2-2009; GB/T 1303.3-2008
Adopted Standard: IEC 60893-3-7-2003, MOD
Regulation (derived from): Announcement of Newly Approved National Standards No. 8, 2009 (No. 148 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the bismaleimide resin laminate rigid classification, nomenclature, requirements, test methods, and delivery requirements. This section applies to the glass cloth substrate to a bismaleimide resin is bonded pairs formed by hot pressing maleimide rigid plastic resin laminate.

GB/T 1303.10-2009: Industrial rigid laminated sheets based on thermosetting resins for electrical purposes -- Part 10: Requirements for rigid laminated sheets based on bis-maleimide resins

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Industrial rigid laminated sheets based on thermosetting resins for electrical purposes Part 10. Requirements for rigid laminated sheets based on bis-maleimide resins ICS 29.035.01 K15 National Standards of People's Republic of China Thermosetting resins for electrical industrial rigid laminated sheets Part 10. bismaleimide rigid laminated sheets (IEC 60893-3-7.2003, Insulatingmaterials-Industrialrigidlaminated Part 3. Specificationsforindividualmaterials- Sheet7. Requirementsforrigidlaminatedsheets basedonpolyimideresins, MOD) Posted 2009-12-01 2009-06-10 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

GB/T 1303 "thermosetting resins for electrical industrial rigid laminated board", is divided into the following sections. --- Part 1. Definitions, designations and general requirements; --- Part 2. Test methods; --- Part 3. Industrial rigid laminated board model; --- Part 4. rigid epoxy laminates; --- Part 5. rigid melamine resin laminate; --- Part 6. rigid phenolic resin laminate; --- Part 7. Polyester resin rigid laminates; --- Part 8. rigid silicone resin laminate; --- Part 9. rigid polyimide resin laminate; --- Part 10. bismaleimide rigid laminates; --- Part 11. Polyamide-imide resin rigid laminates; This section GB/T 1303 Part 10. The partial modification of the use of IEC 60893-3-7.2003 "thermosetting resins for electrical industrial rigid laminated sheets - Part 3. Specifications for individual materials Regulation Fan Section 7. polyimide resin laminate rigid requirements "(in English) of the relevant content. This part of IEC 60893-3-7.2003 differences are as follows. a) Remove the IEC 60893-3-7.2003 preface and introduction, the introduction content into this part of the preamble; b) of Chapter 1, "program" has been modified, deleted the material meets note, increasing the scope of application; c) delete the dimension in Chapter 3 of labeling information; d) according to the actual situation needs, supplemented with "apparent flexural modulus of elasticity," "vertical layer to the compression strength", "parallel to the shear layer Strength "," Tensile Strength "," adhesive strength "," 1MHz lower dielectric loss factor "," 1MHz dielectric constant "," resistance to tracking Index "," Temperature Index "and" density "of performance requirements related to technical differences in the terms they are involved in the margin A single vertical line identification; e) The "Requirements" chapter of the press, "look", "size" and "flatness", "performance requirements," points written in the "supply requirements" as a separate chapter Write, while IEC 60893-3-7.2003 in Table 5 were modified, the contents of the memo included in this section of Table 6. Table Note; the IEC 60893-3-7.2003 Table 5 - Test methods included in this section reg Chapter 5, "test" rewrite and adds Test methods and cut slats General; f) Remove the IEC 60893-3-7.2003's "References." This part is proposed by the China Electrical Equipment Industrial Association. This part of the National Standardization Technical Committee of the insulating material (SAC/TC51) centralized. This section is drafted. Xian Xi, electrical materials Co., Ltd., Beijing Fu Runda new insulation material limited liability company, Guilin electricity Institute is science. Drafters of this section. Duchao Yun, Liu Qihuan, Luozhuan Yong. This section first formulated. Thermosetting resins for electrical industrial rigid laminated sheets Part 10. bismaleimide rigid laminated sheets

1 Scope

GB/T 1303 provisions of this part of the classification bismaleimide rigid laminate, name, requirements, test methods and Availability Claim. This section applies to glass cloth as a base material for bismaleimide an adhesive resin formed by hot pressing hard bismaleimide resin Laminate.

2 Normative references

The following documents contain provisions which, through GB/T reference in this 1303 constitute provisions of this section. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 1303.1-2009 thermosetting resins for electrical industrial rigid laminated sheets - Part 1. Definitions, classification and general requirements (IEC 60893-1.2004, IDT) GB/T 1303.2-2009 Electrical thermosetting resins - Part 2 - Industrial rigid laminated sheets. Methods of test (IEC 60893-2. 2002, MOD) GB/T 1303.3-2008 thermosetting resins for electrical industrial rigid laminated sheets - Part 3. Industrial rigid laminated board Model (IEC 60893-3-1.2002, MOD)

3 naming and classification

3.1 Naming According to GB/T 1303.3-2008 provisions to the resin and reinforcing material and sheet properties are named. Example. BMI  bismaleimide resin GC  glass cloth reinforcement   feature series 3.2 Classification Table 1 bismaleimide resin laminate industrial rigid model Model uses and properties BMIGC301 mechanical and electrical use. Good mechanical and electrical properties at high temperatures.

4 Requirements

4.1 Appearance Visual inspection. 4.2 Dimensions 4.2.1 laminate boards allow original width and length deviation should meet the requirements of Table 2. ......
