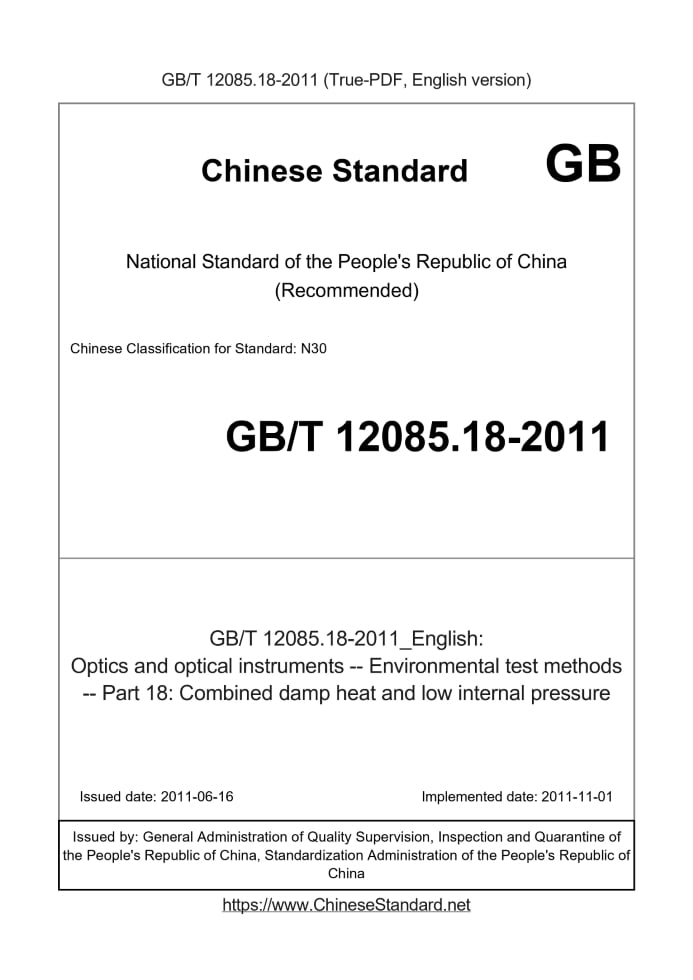

GB/T 12085.18-2011 English PDF

US$399.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 12085.18-2011: Optics and optical instruments -- Environmental test methods -- Part 18: Combined damp heat and low internal pressure
Status: Obsolete

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 12085.18-2011	399	Add to Cart	3 days	Optics and optical instruments -- Environmental test methods -- Part 18: Combined damp heat and low internal pressure	Obsolete

Similar standards

GB/T 22062   GB/T 4315.2   GB/T 4315.1   GB/T 12085.14   GB/T 12085.17   GB/T 12085.12

Basic data

Standard ID: GB/T 12085.18-2011 (GB/T12085.18-2011)
Description (Translated English): Optics and optical instruments -- Environmental test methods -- Part 18: Combined damp heat and low internal pressure
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: N30
Classification of International Standard: 37.020
Word Count Estimation: 10,190
Date of Issue: 2011-06-16
Date of Implementation: 2011-11-01
Quoted Standard: GB/T 12085.1; GB/T 12085.8
Adopted Standard: ISO 9022-18-1994, MOD
Regulation (derived from): Announcement of Newly Approved National Standards No. 9 of 2011
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the heat, low pressure integrated test conditions, test conditions, test procedures and environmental test mark. This section applies to optical instruments, apparatus and optical components with optical components.

GB/T 12085.18-2011: Optics and optical instruments -- Environmental test methods -- Part 18: Combined damp heat and low internal pressure

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Optics and optical instruments.Environmental test methods.Part 18. Combined damp heat and low internal pressure ICS 37.020 N30 National Standards of People's Republic of China Environmental and optical instruments - Environmental test methods Part 18. hot and humid, low internal pressure comprehensive test Part 18. Combineddampheatandlowinternalpressure (ISO 9022-18..1994, MOD) 2011-06-16 release 2011-11-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China China National Standardization Management Committee released

Foreword

GB/T 12085 "Optical and optical instrument environmental test method" is divided into the following 21 parts. - Part 1. Terminology, scope of test; - Part 2. low temperature, high temperature, hot and humid; - Part 3. Mechanical force; - Part 4. Salt mist; - Part 5. Low temperature, low pressure comprehensive test; Part 6. Sand and dust; - Part 7. dripping, dripping; - Part 8. High pressure, low pressure, immersion; - Part 9. Solar radiation; - Part 10. Vibration (sinusoidal) and high temperature, low temperature comprehensive test; - Part 11. mildew; - Part 12. Pollution; - Part 13. impact, collision or free fall and high temperature, low temperature comprehensive test; - Part 14. dew, frost, ice; - Part 15. Broadband random vibration (digital control) and high temperature, low temperature comprehensive test; - Part 16. Bounce or constant acceleration with high temperature, low temperature comprehensive test; - Part 17. Pollution, solar radiation comprehensive test; - Part 18. Comprehensive test of hot and humid, low internal pressure; - Part 19. Temperature cycle and sinusoidal vibration, random vibration test; - Part 20. Wet air containing sulfur dioxide, hydrogen sulphide; - Part 21. Low pressure and atmospheric temperature, high temperature comprehensive test. This part of the revision using ISO 9022-18..1994 "Optical and optical instrument environmental test method Part 18. hot and humid, low internal pressure Test ". The main differences between this part and ISO 9022-18..1994 are. - the preamble and prerequisites for the deletion of international standards; - the standard scope was rewritten in accordance with ISO 9022-18, Chapter 1 and our standard language; - "International Standard Part" is replaced by the words "this part"; - the normative references in Chapter 2 are replaced by current national standards; - Suspension section of condition test. Appendix A to this section is an informative appendix. This part is made by the China Machinery Industry Federation. This part is headed by the National Committee for the Standardization of Optics and Photonics (SAC/TC103). This part of the drafting unit. Shanghai Polytechnic University, Ningbo Yongxin Optics Co., Ltd., Jiangnan Yongxin Optical Co., Ltd., Nanjing Dongli Optoelectronic Industry Co., Ltd., Guangzhou Yuexian Optical Instrument Co., Ltd., Ningbo Teaching Instrument Co., Ltd., Ningbo Huaguang Precision Instrument Ltd., Wuzhou Oka Optical Instrument Company, Ningbo Shunyu Instrument Co., Ltd., Guiyang Xintian Optoelectronics Technology Co., Ltd., Chongqing photoelectric equipment Limited company, Mike Audi Industrial Group Limited. This part of the main drafters. Zhang Huixian, Feng Qionghui, Zeng Lizhu, Ye Hui, Li Xi, Yang Guanglie, Li Mi Gao, Wang Guorui, Xu Liming, Zhang Jinghua, Hu Senhu, Hu Qing, Xia Shuo, Xiao Qian. Environmental and optical instruments - Environmental test methods Part 18. hot and humid, low internal pressure comprehensive test

1 Scope

This part specifies the test conditions, conditional tests, test procedures and environmental test marks for the comprehensive test of hot and humid, low internal pressure. This section applies to optical instruments, optical instruments and optical components.

2 normative reference documents

The terms of this document are the terms of this part by reference to this part of GB/T 12085. Any reference to the date of the text , All subsequent amendments (excluding corrigenda) or revisions do not apply to this part, however, encouragement under this section The parties to the agreement study whether the latest version of these documents can be used. For undated references, the latest edition of this document applies section. GB/T 12085.1 Environmental and optical instruments - Environmental test methods - Part 1. Terminology, test range (GB/T 12085.1 - 2010, ISO 9022-1..1994, MOD) GB/T 12085.8 Environmental and optical instruments - Environmental test methods - Part 8. High pressure, low pressure, immersion (GB/T 12085.8- 2010, ISO 9022-8..1994, MOD)

3 test conditions

Testing of exposed specimens under combined operating conditions is more severe than any single environmental condition test. There are three different methods for the combination of anti-damp heat and low pressure in optical instruments.

4 condition test

4.1 General The various parts of the sample were tested with a temperature difference between the test chamber (chamber) within 3K. The sample is allowed to show condensation. Each test The steps should be performed in the order they are. The test process is not allowed to interrupt. 4.2 conditions test method 47. hot and humid and low pressure, low pressure Condition test method 47 wet heat and low pressure, low pressure difference according to Table 1 and Figure 1. The conditional test method 47 is suitable for use in optical instruments where the sealing manufacturing requirements are low (low compressive resistance). For example. meet GB/T 12085.8 Test method 81 in the harsh rating of 01,02,07 and 08 of the instrument. Table 1 Severe Level 01 02 03 04 05 06 Test conditions 1 step 1 Test chamber (room) temperature/℃ 55 ± 2 63 ± 2 70 ± 2 Relative humidity /% < 40 Exposure time until the internal air temperature of the sample reaches the test chamber (room) within 3K Step 2 Climatic conditions 40 ℃ ± 2 ℃, relative humidity. 90% to 95% Exposure time/h ≥1 Number of cycles 6 12 6 12 6 12 ......
