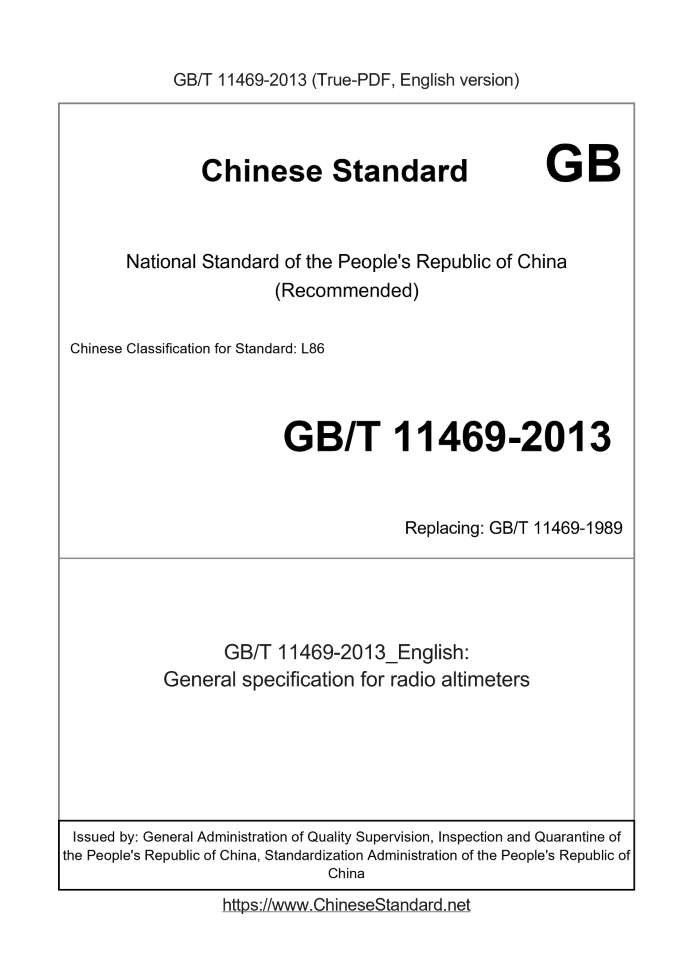

GB/T 11469-2013 English PDF

US$459.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 11469-2013: General specification for radio altimeters
Status: Valid

GB/T 11469: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 11469-2013	459	Add to Cart	4 days	General specification for radio altimeters	Valid
GB/T 11469-1989	679	Add to Cart	5 days	General specification for radio altimeters	Obsolete

Similar standards

GB/T 15843.4   GM/T 0132   GB/T 13166   GB/T 37974

Basic data

Standard ID: GB/T 11469-2013 (GB/T11469-2013)
Description (Translated English): General specification for radio altimeters
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L86
Classification of International Standard: 17.220
Word Count Estimation: 20,289
Older Standard (superseded by this standard): GB/T 11469-1989
Quoted Standard: GB/T 191-2008; GB/T 2423.4-2008; GB/T 2423.16-2008; GB/T 2423.17-2008; GB/T 2423.22-2012; GJB 150.2-1986; GJB 150.15-1986; GJB 150.16-1986; GJB 151A-1997; GJB 152A-1997; GJB 181A-2003; HB 5870
Regulation (derived from): National Standards Bulletin 2013 No. 27
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the radio altimeter (hereinafter referred to as "altimeter") composition, requirements, test methods, inspection rules and signs, packaging, transportation, storage and so on. This standard applies to all types of aircraft and othe

GB/T 11469-2013: General specification for radio altimeters

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
General specification for radio altimeters ICS 17.220 L86 National Standards of People's Republic of China Replacing GB/T 11469-1989 General specification for radio altimeters Issued on. 2013-12-31 2014-07-15 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard was drafted in accordance with GB/T 1.1-2009 given rules. This standard replaces GB/T 11469-1989 "radio altimeter general technical conditions." This standard compared with GB/T 11469-1989 The main changes are as follows. --- In the altimeter range "1" and will be applicable to all types of aircraft from the standard used by other aircraft also used altimeter Shall apply mutatis mutandis amended to apply to all types of aircraft and other aircraft altimeters used; --- "2 Normative references" in addition to HB5870, the other documents referenced amended to date references, and references to the most new version; --- Added "3 Terms and Definitions" chapter; --- Added "altimeter 4 basic components" chapter; --- In the "5.1 General requirements", increasing the dimensions and weight; delete the operating frequency 1.5GHz ~ 1.7GHz, retention 4.2GHz ~ 4.4GHz; warm-up time of less than 1min; output interface and can choose to add an interface form; power supply repair GJB181A-2003 to meet the requirements; increasing the height of the remaining requirements; --- In the "5.2 Performance Requirements", revised measurement precision and accuracy of the indicator according to different heights and different levels of precision; output noise Sound is determined by the height of the revised classification accuracy; according to the altimeter use, the response time was revised to display and control Two kinds; --- In the "environmental adaptability 5.3", the temperature requirements changed to high and low temperature storage and high and low temperatures, the corresponding temperature requirements table Also made changes; modified by the vibration sine sweep vibration wideband random vibration; increase the low air pressure and acceleration requirements; removal of noise and vibration, Explosive atmosphere requirements; --- In the "Requirements 5", the removal of the magnetic impact requirements, increase testability and supportability requirements; --- In the "General Test 6.2", the increase in the general test methods and corresponding general requirements; --- In the "Performance Test 6.3", the increase in high-precision measurement of the outer loop attenuation amount measured test points given by the product standards; pointer precision Test, select the preferred test point was changed to "select test points should guarantee the completeness and accuracy"; --- Changes in power test, modified to test the upper limit voltage and lower limit voltage test; --- Revised GJB151A-1997, GJB152A-1997 requirements for electromagnetic compatibility and electromagnetic compatibility tests; --- Appendix A temperature - conditions of use highly classified tests in height, according to China International System of Units has been modified. Please note that some of the content of this document may involve patents. Release mechanism of the present document does not assume responsibility for the identification of these patents. The standard proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This standard by the National Standardization Technical Committee Electronic Measuring Instruments (SAC/TC153) centralized. This standard was drafted. China Electronics Technology Group Corporation fiftieth Institute, eight state-run seventh Plant, Beijing Qingyun Aviation Instrument Co., the company. The main drafters of this standard. Pipe Hong, Wang Sheng Min, Zhaosan Ping, Wanghai Yong, Meng Po accounting, Song Jinfeng, Ji Hua, Shi Yu, Liu Guiping. This standard replaces the standard for the previous editions. --- GB/T 11469-1989. General specification for radio altimeters

1 Scope

This standard specifies the radio altimeter (hereinafter referred to as "altimeter") composition, requirements, test methods, inspection rules and signs, packaging, Transport, storage and so on. This standard applies to all types of aircraft and other aircraft altimeter uses.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 191-2008 Packaging - Pictorial signs GB/T 2423.4-2008 Environmental testing for electric and electronic products Part 2. Test methods - Test Db. Damp heat (12h 12h cycle) GB/T 2423.16-2008 Environmental testing for electric and electronic products Part 2. Test methods Test J and guidance. Mould growth GB/T 2423.17-2008 Environmental testing for electric and electronic products Part 2. Test methods - Test Ka. Salt GB/T 2423.22-2012 Environmental testing - Part 2. Test methods - Test N. Temperature change GJB150.2-1986 Environmental test methods for military equipments Low pressure (altitude) test GJB150.15-1986 Environmental test methods for military equipments acceleration test GJB150.16-1986 Environmental test methods for military equipments Vibration test GJB151A-1997 military equipment and subsystems electromagnetic emission and susceptibility requirements GJB152A-1997 military equipment and subsystems electromagnetic emission and susceptibility measurements GJB181A-2003-powered aircraft characteristics HB5870 Air Transport Auxiliary products packaging General technical conditions

3 Terms and Definitions

The following terms and definitions apply to this document. 3.1 Measurement Accuracy altitudeaccuracy Altimeter height output value compared with the measured height values \u200b\u200bof the maximum permissible error. 3.2 Sensitivity sensitivity In ensuring altimeter altimetry range and high precision measurement conditions, altimeter transmitter cable between the receiving port to the cable port for a total of The amount of attenuation. 3.3 Indicator accuracy indicatoraccuracy Height indicator indicates the relative height of the altimeter output error. ......
