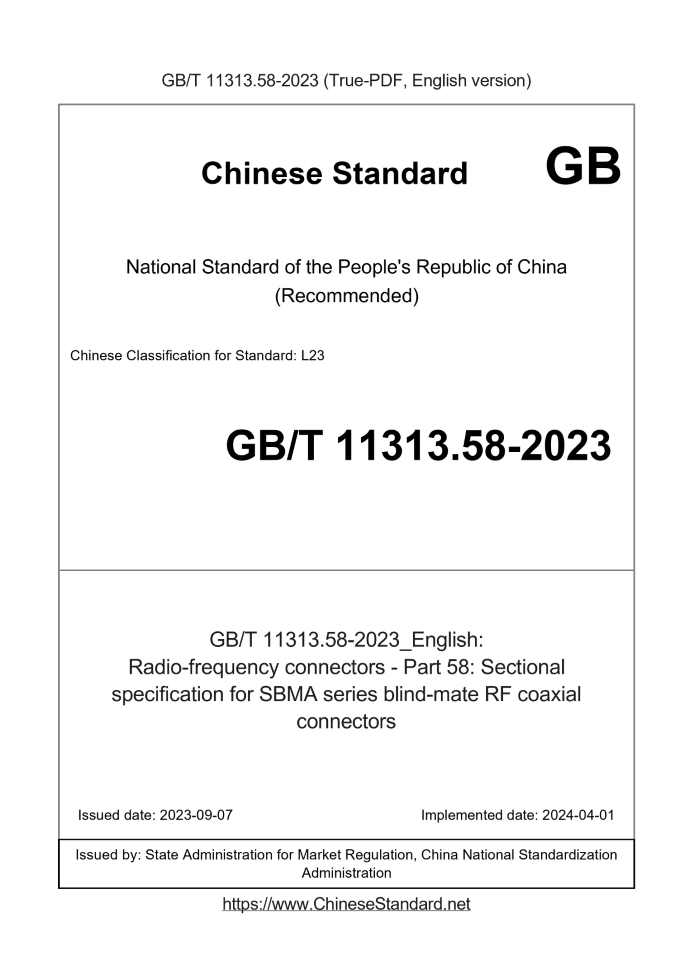

GB/T 11313.58-2023 English PDFUS$499.00 · In stock
Delivery: <= 5 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 11313.58-2023: Radio-frequency connectors - Part 58: Sectional specification for SBMA series blind-mate RF coaxial connectors Status: Valid
Basic dataStandard ID: GB/T 11313.58-2023 (GB/T11313.58-2023)Description (Translated English): Radio-frequency connectors - Part 58: Sectional specification for SBMA series blind-mate RF coaxial connectors Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: L23 Classification of International Standard: 33.120.30 Word Count Estimation: 26,294 Date of Issue: 2023-09-07 Date of Implementation: 2024-04-01 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GB/T 11313.58-2023: Radio-frequency connectors - Part 58: Sectional specification for SBMA series blind-mate RF coaxial connectors---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. ICS 33.120.30 CCSL23 National Standards of People's Republic of China RF connector Part 58.SBMA Series Specifications for blind mating RF coaxial connectors [IEC 61169-58.2016,Radio-frequencyconnectors-Part 58.Sectional Released on 2023-09-07 Implemented on 2024-04-01 State Administration for Market Regulation Released by the National Standardization Administration Committee Table of contentsPreface III Introduction V 1 Scope 1 2 Normative reference documents 1 3 Terms and Definitions 1 4 Mating interface and standard gauge 1 4.1 Dimensions - Universal Connector 1 4.2 Standard regulations for general-purpose connectors 4 4.3 Dimensions - Standard Test Connector - Class 0 5 4.4 Installation requirements 7 5 Quality Assessment Procedure 8 5.1 Overview 8 5.2 Ratings and Characteristics8 5.3 Test list and inspection requirements10 5.4 Quality Conformance Procedure 13 6 Guidelines for developing detailed specifications13 6.1 General 13 6.2 Identification of components 13 6.3 Performance13 6.4 Logo, ordering information and related matters13 6.5 Selection of tests, test conditions and severity14 6.6 Blank Detailed Specification Format 14 for SBMA Series Connectors 7 flag 18 7.1 Component marking 18 7.2 Marking and contents of packaging18ForewordThis document complies with the provisions of GB/T 1.1-2020 "Standardization Work Guidelines Part 1.Structure and Drafting Rules of Standardization Documents" Drafting. This document is Part 58 of GB/T 11313 "Radio Frequency Connectors". GB/T 11313 has published the following parts. ---Part 1.General requirements and test methods of the general specification; ---Part 2.Specifications for type 9.52 radio frequency coaxial connectors; ---Part 4.RF coaxial connector with outer conductor inner diameter 16mm (0.63in), characteristic impedance 50Ω, and threaded connection (Type 7-16); ---Part 8.Radio frequency coaxial connection with outer conductor inner diameter 6.5mm (0.256in), characteristic impedance 50Ω (75Ω), bayonet connection Connectors (BNC type) are divided into specifications; ---Part 9.Specifications for SMC series radio frequency coaxial connectors; ---Part 10.Specifications for SMB series radio frequency coaxial connectors; ---Part 11.RF coaxial connector with outer conductor inner diameter 9.5mm (0.374in), characteristic impedance 50Ω, threaded connection (Type 4.1/9.5) sub-standard; ---Part 13.Specifications for type 1.6/5.6 and 1.8/5.6 radio frequency coaxial connectors; ---Part 15.Radio frequency coaxial connectors with outer conductor inner diameter 4.13mm (0.163in), characteristic impedance 50Ω, and threaded connection (SMA type); ---Part 16.Radio frequency coaxial connection with outer conductor inner diameter 7mm (0.276in), characteristic impedance 50Ω (75Ω), threaded connection Connectors (N type) are divided into specifications; ---Part 18.Specifications for SSMA series radio frequency coaxial connectors; ---Part 19.Specifications for SSMB series radio frequency coaxial connectors; ---Part 24.Specification for threaded RF coaxial connectors (Type F) for 75Ω cable distribution systems; ---Part 29.50Ω and 75Ω, with a characteristic impedance of 50Ω, with threaded, push-pull, quick-lock or slide rail racks or panels. Type RF coaxial connector (type 1.0/2.3) sub-standard; ---Part 33.Specifications for BMA series radio frequency coaxial connectors; ---Part 35.Specifications for 2.92 series radio frequency connectors; ---Part 36.Snap-on connection miniature RF coaxial connector (MCX type) with a characteristic impedance of 50Ω; ---Part 37.STWX8 series radio frequency coaxial connector sub-specification; ---Part 38.Specification for 50Ω module slide-in radio frequency connector (TMA type) for backplanes and panels; ---Part 39.Specifications for CQM series quick-locking radio frequency connectors; ---Part 40.Specifications for 2.4 series radio frequency connectors; ---Part 41.Specifications for CQA series quick-locking radio frequency connectors; ---Part 43.Specifications for RBMA series blind mating RF coaxial connectors; ---Part 58.Specifications for SBMA series blind mating RF coaxial connectors; ---Part 101.MMCX series radio frequency coaxial connector sub-specification; ---Part.201.Electrical test methods reflection coefficient and voltage standing wave ratio; ---Part 202.Electrical test methods Insertion loss. This document is modified to adopt IEC 61169-58.2016 "Radio frequency connectors Part 58.Specification characteristics of blind mating radio frequency coaxial connectors" Impedance 50Ω (SBMA type)》. A "Terms and Definitions" chapter has been added to this document. The technical differences between this document and IEC 61169-58.2016 and their reasons are as follows. ---Changed the "connection mechanism strength" and "intermodulation level" in Table 7 to "na". This product has a blind plug structure, so there is no need to perform these two items. test; ---Changed the value of "frequency range" in Table 7 from "0.05GHz~28GHz" to "≤28GHz" to comply with the expression of operating frequency Require. The following editorial changes have been made to this document. ---In order to coordinate with the existing standards, the name of the standard is changed to "Radio Frequency Connectors Part 58.SBMA Series Blind Plug Radio Frequency Coaxial Connectors" "Connector Specifications"; ---Incorporated the errata content of IEC 61169-58.2016/COR1.2017, the outer margins of the involved clauses are marked with vertical Straight double lines (‖) are marked; ---Correct "Standard Regulation B" in 4.2.2b) and 4.2.4b) to "Standard Regulation C", and change "Standard Regulation A" in 4.2.2c) and 4.2.4c) It is "standard gauge B". Please note that some content in this document may be subject to patents. The publisher of this document assumes no responsibility for identifying patents. This document is proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This document is under the jurisdiction of the National Standardization Technical Committee for High Frequency Cables and Connectors for Electronic Equipment (SAC/TC190). This document was drafted by. China Electronics Technology Group Corporation No. 40 Research Institute, China Electronics Technology Standardization Institute. The main drafters of this document. Wang Feng, Qiao Changhai, Wu Zhengping, Yang Fan, Guo Tao, Zhang Jing, Zheng Dongxia, and Guo Qingling.IntroductionRF coaxial connector is an interface component for transmitting RF signals. It is used between devices and devices, components and components, systems and subsystems. It forms an electrical connection and transmits radio frequency signals. It plays a role in connecting or breaking coaxial cables, microstrip circuits, and transmitting radio frequency signals in the circuit. effect. Because coaxial transmission is a closed transmission mode, it can achieve high-quality signal transmission, and has the characteristics of low cost, compact structure, and ease of use. With advantages such as wiring, it is widely used in instrumentation, microwave communication equipment, radar and weapons and equipment systems. GB/T 11313 "Radio Frequency Connector" is planned to consist of 55 parts. ---Part 1.General requirements and test methods of the general specification; ---Part 2.Specifications for type 9.52 radio frequency coaxial connectors; ---Part 4.RF coaxial connector with outer conductor inner diameter 16mm (0.63in), characteristic impedance 50Ω, and threaded connection (Type 7-16); ---Part 7.Radio frequency coaxial connector with outer conductor inner diameter 9.5mm (0.375in), characteristic impedance 50Ω, bayonet connection (Type C) sub-standard; ---Part 8.Radio frequency coaxial connection with outer conductor inner diameter 6.5mm (0.256in), characteristic impedance 50Ω (75Ω), bayonet connection Connectors (BNC type) are divided into specifications; ---Part 9.Specifications for SMC series radio frequency coaxial connectors; ---Part 10.Specifications for SMB series radio frequency coaxial connectors; ---Part 11.RF coaxial connector with outer conductor inner diameter 9.5mm (0.374in), characteristic impedance 50Ω, threaded connection (Type 4.1/9.5) sub-standard; ---Part 12.Specification for non-matching threaded radio frequency coaxial connectors (UHF type); ---Part 13.Specifications for type 1.6/5.6 and 1.8/5.6 radio frequency coaxial connectors; ---Part 14.RF coaxial connector with outer conductor inner diameter 12mm (0.472in), characteristic impedance 75Ω, threaded connection (Type 3.5/12) divided into specifications; ---Part 15.Radio frequency coaxial connectors with outer conductor inner diameter 4.13mm (0.163in), characteristic impedance 50Ω, and threaded connection (SMA type); ---Part 16.Radio frequency coaxial connection with outer conductor inner diameter 7mm (0.276in), characteristic impedance 50Ω (75Ω), threaded connection Connectors (N type) are divided into specifications; ---Part 17.Specifications for TNC series radio frequency coaxial connectors; ---Part 18.Specifications for SSMA series radio frequency coaxial connectors; ---Part 19.Specifications for SSMB series radio frequency coaxial connectors; ---Part 20.Radio frequency coaxial connectors with an outer conductor inner diameter of 2.08mm (0.082in), a characteristic impedance of 50Ω, and a threaded connection (SSMC type) sub-standard; ---Part 21.The inner diameter of the outer conductor is 9.5mm (0.374in), the characteristic impedance is 50Ω, and there are two different threaded connection forms Specifications for radio frequency coaxial connectors (type SC-A and SC-B); ---Part 22.Specifications for two-core radio frequency connectors (BNO type) for bayonet connection of double inner conductor shielded symmetrical cables; ---Part 23.Radio frequency coaxial connectors for connecting 3.5mm hard precision coaxial cable and outer conductor inner diameter 3.5mm (0.1378in) specification; ---Part 24.Specification for threaded RF coaxial connectors (Type F) for 75Ω cable distribution systems; ---Part 25.Double-core threaded (3/4- 20UNEF) connector (TWHN type) sub-standard; ---Part 26.Specifications for TNCA series radio frequency coaxial connectors; ---Part 27.Specification for threaded radio frequency coaxial connectors (Type E) for 75Ω cable distribution systems; ---Part 28.The outer conductor conductor is 5.60mm (0.220in), the characteristic impedance is 75Ω, and the locking connection radio frequency coaxial connector points specification; ---Part 29.50Ω and 75Ω, with a characteristic impedance of 50Ω, with threaded, push-pull, quick-lock or slide rail racks or panels. Type RF coaxial connector (type 1.0/2.3) sub-standard; ---Part 31.Radio frequency coaxial connectors with outer conductor inner diameter 1.0mm (0.039in), characteristic impedance 50Ω, and threaded connection (Type 1.0) sub-standard; ---Part 32.Radio frequency coaxial connectors with outer conductor inner diameter 1.85mm (0.072in), characteristic impedance 50Ω, and threaded connection (Type 1.85) divided into specifications; ---Part 33.Specifications for BMA series radio frequency coaxial connectors; ---Part 35.Specifications for 2.92 series radio frequency connectors; ---Part 36.Snap-on connection miniature RF coaxial connector (MCX type) with a characteristic impedance of 50Ω; ---Part 37.STWX8 series radio frequency coaxial connector sub-specification; ---Part 38.Specification for 50Ω module slide-in radio frequency connector (TMA type) for backplanes and panels; ---Part 39.Specifications for CQM series quick-locking radio frequency connectors; ---Part 40.Specifications for 2.4 series radio frequency coaxial connectors; ---Part 41.Specifications for CQA series quick-locking radio frequency connectors; ---Part 42.Specifications for CQN series quick-locking radio frequency connectors; ---Part 43.Specifications for RBMA series blind mating RF coaxial connectors; ---Part 44.Specifications for SMP series push-in radio frequency coaxial connectors; ---Part 45.SQMA tin type quick locking radio frequency coaxial connector sub-specification; ---Part 48.Specifications for BMP series blind mating RF coaxial connectors; ---Part 49.Specifications for SMAA series blind mating RF coaxial connectors; ---Part 54.Specification for radio frequency coaxial connectors with an outer conductor inner diameter of 10mm and a characteristic impedance of 50Ω (type 4.3/10); ---Part 58.Specifications for SBMA series blind mating RF coaxial connectors; ---Part 60.Specifications for SMPM series radio frequency coaxial connectors; ---Part 64.Specification for radio frequency coaxial connectors with an outer conductor inner diameter of 0.8mm and a characteristic impedance of 50Ω (Type 0.8); ---Part 65.Specification for radio frequency coaxial connectors with outer conductor inner diameter 1.35mm, characteristic impedance 50Ω, and threaded connection (Type 4.3/10); ---Part 66.Specification for radio frequency coaxial connectors with outer conductor inner diameter 5mm, characteristic impedance 50Ω, quick or threaded connection (Type 2.2-5); ---Part 67.Specifications for TRL series threaded triaxial connectors; ---Part 68.Specifications for TRK series bayonet connection tri-coaxial connectors; ---Part 101.MMCX series radio frequency coaxial connector sub-specification; ---Part.201.Electrical test methods reflection coefficient and voltage standing wave ratio; ---Part 202.Electrical test methods insertion loss; ---Part 205.Electrical test methods rise time decay; ---Part 206.Electrical test methods Radio frequency power. RF connector Part 58.SBMA Series Specifications for blind mating RF coaxial connectors1 ScopeThis document provides the content and rules for formulating detailed specifications for the SBMA series blind-mate RF coaxial connectors, as well as the blanks for detailed specifications. Format. The SBMA series blind-mating RF coaxial connector has a characteristic impedance of 50Ω and an upper operating frequency of up to 28GHz. for communication, Antennas, radars and other fields can also be equipped with cables, microstrip and other types of transmission lines, which are widely used in chassis and cabinets of modular machine products. Interconnection of other modules. This document specifies the mating interface dimensions of universal connectors, the specific dimensions of Class 0 standard test connectors, and the specifications from IEC 61169-1. The contents, rules and tests of all detailed specifications applicable to the SBMA series of RF connectors were selected in.2013. This document provides the recommended performance characteristics for the preparation of a detailed specification, which includes a schedule of all tests and inspection requirements. Note. The original dimensions of this document are in millimeters, and all graphic structures without dimensions are for reference only.2 Normative reference documentsThe contents of the following documents constitute essential provisions of this document through normative references in the text. Among them, the dated quotations For undated referenced documents, only the version corresponding to that date applies to this document; for undated referenced documents, the latest version (including all amendments) applies to this document. IEC 61169-1.2013 Radio frequency connectors Part 1.General specifications and test methods (Radio-frequencycon- Note. GB/T 11313.1-2013 Radio frequency connector Part 1.General requirements and test methods (IEC 61169-1.1998, IDT) IEC 62037-3 Measurement of intermodulation levels of passive RF and microwave components Part 3.Measurement of passive intermodulation of coaxial connectors Note. GB/T 21021.3-2021 Intermodulation frequency measurement of passive radio frequency and microwave components Part 3.Passive intermodulation measurement of coaxial connectors (IEC 62037-3.2012,IDT)3 Terms and definitionsThere are no terms or definitions to be defined in this document.4 Mating interface and standard gauge4.1 Dimensions - Universal Connector 4.1.1 Connectors with pin center contacts The interface of a connector with pin center contacts is shown in Figure 1, and the dimensions are shown in Table 1. ...... |
