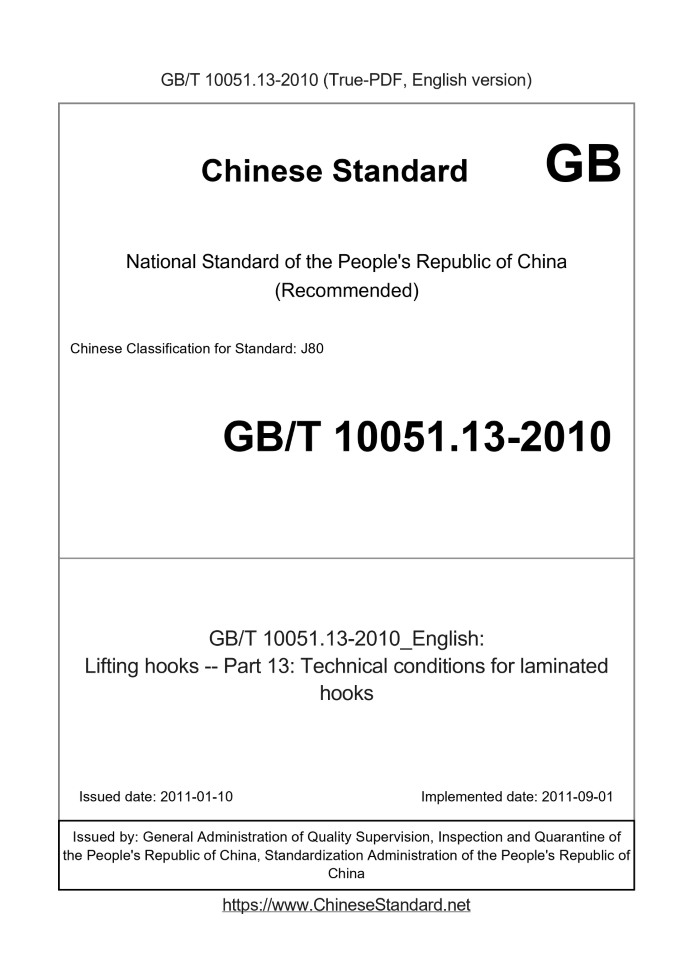

GB/T 10051.13-2010 English PDF

US$139.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 10051.13-2010: Lifting hooks -- Part 13: Technical conditions for laminated hooks
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 10051.13-2010	139	Add to Cart	3 days	Lifting hooks -- Part 13: Technical conditions for laminated hooks	Valid

Similar standards

GB/T 6068   GB/T 12602   GB/T 10051.2   GB/T 10051.12   GB/T 10051.14   GB/T 10051.11

Basic data

Standard ID: GB/T 10051.13-2010 (GB/T10051.13-2010)
Description (Translated English): Lifting hooks -- Part 13: Technical conditions for laminated hooks
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J80
Classification of International Standard: 53.020.30
Word Count Estimation: 6,658
Date of Issue: 2011-01-10
Date of Implementation: 2011-09-01
Quoted Standard: GB/T 223; GB/T 228; GB/T 229; GB/T 709; GB/T 1591; GB/T 2970-2004; GB/T 2975; GB/T 13384; GB/T 20066; JB/T 5000.2-2007
Adopted Standard: DIN 15404-2-1988, NEQ
Regulation (derived from): National Standard Approval Announcement 2011 No.1 (Total No.166)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the board chip hook technical requirements, inspection rules, signs, packaging, transport and storage. This section applies to lifting machinery lifting molten metal laminated hook.

GB/T 10051.13-2010: Lifting hooks -- Part 13: Technical conditions for laminated hooks

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Lifting hooks Part 13. Technical conditions for laminated hooks ਘ਑ਣ ౿౽ ಃ ౺౼౺ ಃ ౽౺ ਙ ಂ ౺ ͙ ࡺ Ϧ γ ڝ স ఩ ఩ ტ ᴳ 2 ਖਐ ౹ ਤ ౻౺౺౿౻ ಃ ౻౽ ૆ ౼౺౻౺ 䊣 䛹 श 䧕 Ji ౻౽ 䘔 ܲ ಐ ऌ❳ ᐻ श 䧕 ឬ ᱛ᲍Т ਛ਽ਹ੊਽੃਻ ੄਼੄ਿ੉ ૆ ਟਲ਼ੈ੊ ౻౽ ಐ ਤਸਵ਼੃਽ਵਲ਼ੀਵ੄੃਷਽੊਽੄੃੉ਹ੄ੈੀਲ਼ੂ਽੃ਲ਼੊ਸ਷ ੄਼੄ਿ੉ ౼౺౻౻ 6 ౺౻ 6 ౻౺ࣽ ጯ ౼౺౻౻ 6 ౺ ಄6 ౺౻ ჊᫩ ͙ࡺϦγ ڝ স ఩఩ ტ 䉔 䛻 ⯽ⲏᷬ Shu ᷬ⫗ᕧ ᅬ ͙ ఩ ఩ ტ ᴳ 2 ࡂ Neko ⤲ ༀ ঄ ц ࣽ ጯ

Foreword

GB/T 10051 "crampon" is divided into the following sections. --- Part 1. mechanical properties, lifting, stress and materials; --- Part 2. Forged hook technical conditions; --- Part 3. Forged hook in check; --- Part 4. shank hook with blank; --- Part 5. Shank hooks; --- Part 6. straight double hook shank blank; --- Part 7. straight double hook shank; --- Part 8. hook beam blank; --- Part 9. hook beam; --- Part 10. hook nut; --- Part 11. hook nut locking plate; --- Part 12. Hook locking means; --- Part 13. Laminated hook technical conditions; --- Part 14. Laminated hook in check; --- Part 15. Laminated single hook. This section GB/T Part of 1,310,051. This portion DIN15404-2. 1988 "Lifting hook Technical delivery conditions for laminated hooks" non-equivalent. This part is proposed by China Machinery Industry Federation. This part of the National Standardization Technical Committee crane (SAC/TC227) centralized. This section is responsible for drafting unit. Taiyuan Heavy Machinery Group Co., Ltd. Participated in the drafting of this section. Beijing Materials Handling Design and Research Institute. The main drafters of this section. Liurun Lin, Ye Peixin, Zhang Yanping, Wang first Cheng, Shen Changhong, SOIL AND. Lifting hook Part 13. Laminated hook technical conditions

1 Scope

This section GB/T 10051 specifies the technical requirements for laminated hooks, inspection rules, marking, packaging, transportation and storage. This section applies to crane lifting the molten metal (ladle) of laminated hook (hereinafter referred to as the hook).

2 Normative references

The following documents contain provisions which, through reference GB/T 10051 in this section constitute provisions of this section. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 223 steel and alloy chemical analysis method GB/T 228 metal materials at room temperature tensile test method (GB/T 228-2002, eqv ISO 6892.1998) GB/T 229 metal Charpy pendulum impact test method (GB/T 229-2007, ISO 148-1.2006, MOD) Size GB/T 709 hot rolled steel sheet and strip, shape, weight and tolerances (GB/T 709-2006, ISO 7452.2002, ISO 16160.2000, NEQ) GB/T 1591 high strength low alloy structural steel GB/T 2970-2004 steel plate ultrasonic inspection GB/T 2975 Steel and steel products for mechanical testing location and sample preparation (GB/T 2975-1998, eqv ISO 377. 1997) GB/T 13384 mechanical and electrical products packaging General technical conditions GB/T 20066 Steel and iron - Sampling and determination of the chemical composition of the sample with a sample preparation method (GB/T 20066-2006, ISO 14284. 1996IDT) JB/T 5000.2-2007 Heavy mechanical general techniques and flame cutting member

3 Technical requirements

3.1 Materials 3.1.1 hook hook mechanical properties of steel plates shall be not less than manufacturing GB/T 1591 provisions Q345B material. 3.1.2 hook sheet material connected by rivets or studs should match the sheet material relative to the hook. 3.1.3 for the manufacture of sheet steel hook should be normalized after the rolling process. 3.2 size deviation For hook hook cavity diameter D tolerance -3% for the hook Dimensions allowable deviation of 3%; for hook thickness Allowable deviation according to GB/T 709 provisions. 3.3 Hook sheet cutting 3.3.1 cutting hook films, fibers should ensure that the rolling direction (ie, the steel sheet in the longitudinal direction) and the longitudinal direction of the hook sheet steel coincide. 3.3.2 The hook should ensure smooth sheet, cut side should not have gaps and dross. 3.3.3 should be consistent with the cut surface level Ⅰ JB/T 5000.2-2007 Chapter 7 Table 11 regulations. ......
