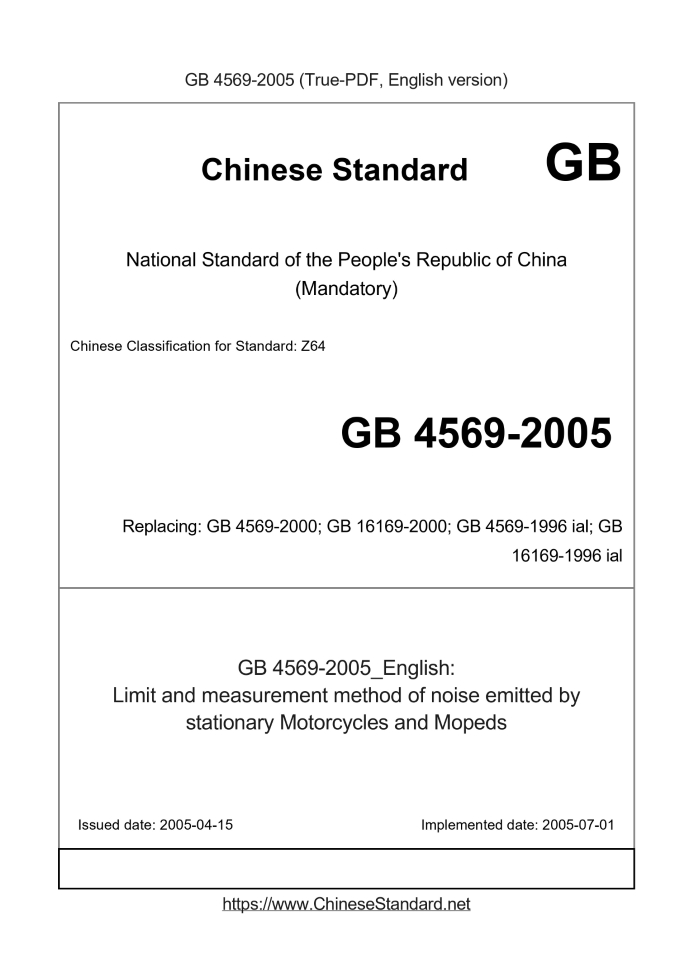

GB 4569-2005 English PDFUS$259.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB 4569-2005: Limit and measurement method of noise emitted by stationary Motorcycles and Mopeds Status: Valid GB 4569: Historical versions
Basic dataStandard ID: GB 4569-2005 (GB4569-2005)Description (Translated English): Limit and measurement method of noise emitted by stationary Motorcycles and Mopeds Sector / Industry: National Standard Classification of Chinese Standard: Z64 Classification of International Standard: 13.040.50 Word Count Estimation: 10,198 Date of Issue: 2005-04-15 Date of Implementation: 2005-07-01 Older Standard (superseded by this standard): GB 4569-2000; GB 16169-2000; GB 4569-1996 ial; GB 16169-1996 ial Quoted Standard: GB/T 3785; GB/T 5378; GB/T 15173 Adopted Standard: ECE R9, MOD; ECE R41, MOD; ECE R63, MOD; 97/24/EC C9, MOD Regulation (derived from): Announcement of Newly Approved National Standards No. 5, 2005 (No. 79 overall)SEPA Notice No. 14 of 2005 Summary: This Chinese standard specifies the motorcycle (except racing) and moped -set noise limits and measurement methods. This standard applies to the motorcycle with a motorcycle and light. GB 4569-2005: Limit and measurement method of noise emitted by stationary Motorcycles and Mopeds---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Limit and measurement method of noise emitted by stationary Motorcycles and Mopeds ICS 13.040.50 Z 64 National Standards of People's Republic of China GB 4569 2005 Partially replace GB 16169-1996, GB/T 4569-1996, GB 16169-2000, GB 4569-2000 Motorcycles and mopeds Of set noise limits and measurement methods 20,050,415 Post 20,050,701 embodiment State Environmental Protection Administration State Administration of Quality Supervision, Inspection and Quarantine release Book ⅰ State Environmental Protection Administration announcement 2005, No. 14 To implement the "People's Republic of China Air Pollution Prevention Law" and "People's Republic of China Environmental Noise Pollution Prevention Law," prevention ring Environmental pollution, protecting and improving the living environment and the ecological environment, safeguarding human health, are now approved "light vehicle emission limits and measurement Volume methods (China Ⅲ, Ⅳ stage) "and other five criteria for the national pollutant discharge standards by the Office and State Administration of Quality Supervision, Inspection and Quarantine General syndication. Standard name, number and date of implementation as follows. 1. Light vehicle emission limits and measurement methods (China Ⅲ, Ⅳ stage) (GB 18352.3-2005, since July 2007 From January 1, 2009.) 2. Ignition engines fitted with heavy-duty vehicles crankcase emission limits and measurement methods (GB 11340-2005, from 2005 Since July 1 implementation) 3. Ignition engines fitted with heavy-duty vehicles fuel evaporative emission limits and measurement methods (GB 14763-2005, from 2005 Since July 1 implementation) 4. Motorcycles and accelerated with noise limits and measurement method (GB 16169-2005, from July 1st 2005 onwards Implementation) 5. Motorcycles and Mopeds noise limits and measurement methods (GB 4569-2005, from July 1, 2005 implementation) According to relevant laws and regulations, these standards have the effect of enforcement. Consultation. From the date of implementation of the above criteria, the following standards will be abolished. 1. Light vehicle emission limits and measurement methods (Ⅱ) (GB 18352.2-2001) 2. Automotive crankcase emissions standards (GB 14761.4-93) 3. Automotive crankcase emissions measurement methods and limits (GB 11340-89) 4. Gasoline Vehicle Fuel Evaporative Emission Standards (GB 14761.3-93) 5. Petrol fuel evaporative pollutants measurement collection method (GB 14763-93) 6. Motorcycles and noise limits (GB 16169-1996) 7. Motorcycles and noise measurement method (GB/T 4569-1996) 8. Mopeds noise limits and test methods (GB 16169-2000) 9. Motorcycle noise limits and test methods (GB 4569-2000) Special announcement. April 5, 2005 Book GB 4569 2005 Table of ContentsPreface ⅳ 1 Scope 1 2 Normative references 1 3 Terms, definitions and symbols 1 4 set-noise limit 1 5 Measuring Instruments 1 6 set-noise measurement method 2 Appendix A (informative) Measurement of noise recorded 4 GB 4569 2005ForewordTo implement the "People's Republic of China Environmental Noise Pollution Prevention Law," motorcycle noise pollution prevention, promote motorcycle manufacturing industry Sustainable development and technological progress, the development of this standard. The Standard Test Method for modification using ECER9 "Uniform provisions concerning the approval of three-wheeled motorcycle noise", ECER41 "About two Approved motorcycle noise Uniform provisions ", ECER63" Uniform provisions concerning the approval of moped noise ", 97/24/ECC9 "Motorcycle Noise on the approval of the Supplementary Regulations" revision. This standard and ECER9 "Uniform provisions concerning the approval of three-wheeled motorcycle noise", ECER41 "on motorcycle noise nuclear Quasi-uniform provisions ", ECER63" Uniform provisions concerning the approval of moped noise ", 97/24/ECC9" on motorcycle noise Approved the Supplementary Regulations, "the degree of consistency as part of an equivalent, the main differences are as follows. ── according to Chinese customs on a motorcycle, two mopeds and three-wheeled motorcycle uniform formatting; ── some statements apply to international standards to apply to our standard formulation; ── acceleration running noise measurement methods section, into the "acceleration with motorcycles and mopeds noise limits and measurement side Law "; ── provides for set-noise limit. This standard replaces GB 16169-1996 in the set-noise limit portion and GB/T 4569-1996 in noise measurement set-square Law section. This standard and GB 16169-1996 and GB/T 4569-1996 compared to the main changes are as follows. ── limit motorcycle noise emitted by the new engine displacement are classified; ── measured value requirements change. Appendix A of this standard is an informative annex. This standard replaces the standards previously issued as follows. --- GB/T 4569-1996, GB 16169-1996, GB 4569-2000, GB 16169-2000. The standard for the second amendment. According to relevant laws and regulations, the standard shall be enforceable. This standard was proposed by the State Environmental Protection Administration of Science, Technology. This standard was drafted. National Motorcycle Quality Supervision and Inspection Center, Shanghai Quality Supervision, Inspection and motorcycles, China Ordnance Equipment Set Group, China Jialing Industrial Co., Ltd. (Group). This standard SEPA April 5, 2005 for approval. This standard since July 1, 2005 implementation, GB/T 4569-1996, GB 16169-1996, GB 4569-2000, GB 16169-2000 repealed simultaneously. This standard is interpreted by the State Environmental Protection Administration. Book GB 4569 2005 Motorcycles and Mopeds noise limits and measurement methods1 ScopeThis standard specifies the motorcycle (except racing) and Mopeds noise limits and measurement methods. This standard applies to the use of motorcycles and mopeds.2 Normative referencesThe following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent All amendments (not including errata content) or revisions do not apply to this standard, however, encourage an agreement in accordance with this standard Whether the parties can study the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 3785 sound level meter electric, acoustic performance and test methods GB/T 5378 road test for motorcycles and mopeds - General GB/T 15173 acoustic calibrator 3 Terms, definitions and symbols 3.1 The following terms and definitions apply to this standard Background noise Background noise refers to the ambient noise (including wind noise) test vehicle noise does not exist. 3.2 Symbol This standard uses the following symbols. S. engine maximum power speed. 4 set-noise limit With motorcycles and mopeds of set noise limits in Table 1. Table 1 Motorcycles and Mopeds noise limits Engine displacement (Vp h) / ml Noise Limit/dB (A) The second stage of the first phase July 1, 2005 Production Motorcycles and mopeds 2005 July 1 production Motorcycles and mopeds ≤50 85 83 > 50 and ≤125 90 88 > 12594925 Measuring Instruments5.1 Acoustic measuring instruments Sound level meter or equivalent measurement system 5.1.1 noise measurement shall comply with GB/T 3785 type 1 or type 2 sound level meter accuracy Requirements. When using a can periodically monitor A-weighted sound level of the system, the system of reading time interval should be less than 30ms. Or sound level meter Equivalent measurement system shall state provisions on verification of measuring instruments on a regular basis. GB 4569 2005 When using a sound level meter measurement 5.1.2 A characteristic of frequency weighting and "Fast (F)" stop time weighting characteristics. 5.1.3 beginning and end of each measurement should follow the manufacturer instructions for the press GB/T 15173 requirements for inspection and correction Associate sound level meter. Under no condition to make any adjustments, if after reading once a calibration calibration relative to the previous reading of the difference between type 1 Sound level meter is more than 0.5dB (A), type 2 sound level than 1dB (A), the measurement result is considered invalid after the previous calibration. Reading calibration measurement requirements shall be documented in Appendix A (informative) table. 5.1.4 measurement process, allowing the sound level meter according to specification requirements proper use of the windshield, but it should be noted that the spirit of the windshield on the microphone Sensitivity and directional influence. 5.2 vehicle speed and engine speed measuring instruments You should use a dedicated vehicle speed and engine tachometer measuring instruments, which should be consistent with the requirements of GB/T 5378 regulations. 5.3 Meteorological measuring instruments Anemometer, air pressure gauge and a thermometer should be consistent with GB/T 5378 regulations. 6 set-noise measurement method 6.1 Measurement Environment 6.1.1 measurement site (FIG. 1) Figure 1 Measurement of noise and field measurement area 6.1.1.1 Measurement site should be surface dry concrete, Asphalt or hard material having a high reflectance (excluding compaction Soil or other natural materials) consisting of flat ground. site It should be able to draw within a rectangular area measuring rectangular four Margins by test profiles (not including the handle) at least 3m, in this Shall not affect the sound level meter readings in the range of obstacles exist. Sound level meter microphone away from the edge of the road should not be less than 1m. 6.1.1.2 When surveyors and measurement other than the driver, in Shall have other staff in the measurement area. Surveyors and driving Members should not affect the position of meter readings. 6.1.2 Meteorology Measurement should be no rain, no snow and the wind speed is not greater than 3m/s the Carried out under the climatic conditions. Measurement should be excluded gusts of sound level meter Reading of. 6.1.3 Background noise Measurement, background noise (A-weighted sound level) to Less should test low noise 10dB (A) than to receive. 6.2 by commissioning and placement status 6.2.1 The test subject should be placed in the center of the rectangular measurement area (Fig. 1). 6.2.2 Commissioning the transmission in neutral, clutch is engaged, the driver in the normal driving conditions, the rear wheels can not overhead. If there is no empty Gear, wheels can be overhead, the drive wheel can be operated under no load condition. 6.2.3 If that is equipped with an automatic fan test, the measurement process should be undisturbed. 6.2.4 In the previously measured by test shall GB/T 5378 regulations warm-up operation, the engine temperature reaches normal operating requirements. 6.3 microphone placement and select the measuring point (Fig. 2) 6.3.1 microphone reference axis parallel to the ground, and the plane through the exhaust tone and flow direction perpendicular to the ground into a folder of 45 ° ± 10 ° angle. Relative to this plane, the microphone is located away from the subject test profiles (not including the handle) from the larger side. Microphone toward the exhaust Mouth, from the exhaust muffler tail pipe outlet 0.5m, and is located in the exhaust muffler tail pipe outlet of the same height, but the height from the ground shall not be less To 0.2m. GB 4569 2005 2 set-noise measurement microphone placed schematic diagram When the vehicle due to structural reasons can not meet this requirement, the microphone toward the exhaust port, located nearest the above conditions, and with the car The distance is greater than the 0.5m place, and should draw the measuring point diagram, mark the position of the microphone. 6.3.2 The test subject is equipped with two or more exhaust muffler, the muffler when the spacing is not more than 0.3m, just take a Measurement location, by selecting from the test profiles (not including the handle) recently muffler tail pipe outlet, or select from the ground up to the tail muffler Tube outlet. When the spacing between the muffler is greater than 0.3m, to deal with each muffler outlet measurement. 6.4 Operational requirements 6.4.1 The test measured by the following operating conditions. Engine speed. S is greater than 5000r/min, is taken as 1/2S; S is less than or equal to 5000r/min, taken as 3/4S. 6.4.2 stable after a specified engine speed, measured by the steady speed to slow down as soon as the sound level of the idle process. Time measurement should Including a short course of engine operation and constant deceleration all. 6.5 Value Requirements Measured as the maximum in each measurement position to repeat the test, each taking the maximum sound level measurements, take three consecutive measurement values The amount of results. 3 times the measured value of the difference between each other should not exceed 2dB (A), otherwise the measurement will be invalid. That is equipped with two or more test Muffler, take each point the maximum noise level measured value as a measurement result. Measured according to GB/T 5378 requirements rounded to the nearest whole number. 6.6 Measurement Record Measurement data and results of measurement conditions, that is test and measurement instruments and other technical parameters to fill in Annex A (informative) Table. If there should be noted that the case should be completed in the form of "additional instructions" column. Example 7 Standard This standard by the people's governments above the county level environmental protection administrative department responsible for implementation. GB 4569 2005Appendix A(Informative) Measurement of noise record Location Date The date road conditions Weather Temperature/℃ wind speed/(m/s) By commissioning. factory model Chassis number Engine. Type Displacement/ml number Maximum power speed/(r/min) Transmission. Type the number of forward gear Exhaust muffler system. factory Type Description Sound Level Meter. Model accuracy class instrument number Measurement value before calibration/dB (A) measured after calibration/dB (A) test calibration/dB (A) Acoustic Calibrator. Model accuracy class instrument number Tachometer Model FIG irregular measuring point Table D1 Measuring 2.0 and 3.0 points for the first time background noise Remarks Set-noise level dB (A) Surveyors driver other instructions ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB 4569-2005_English be delivered?Answer: Upon your order, we will start to translate GB 4569-2005_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB 4569-2005_English with my colleagues?Answer: Yes. The purchased PDF of GB 4569-2005_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version GB 4569-2005?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 4569-2005 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
