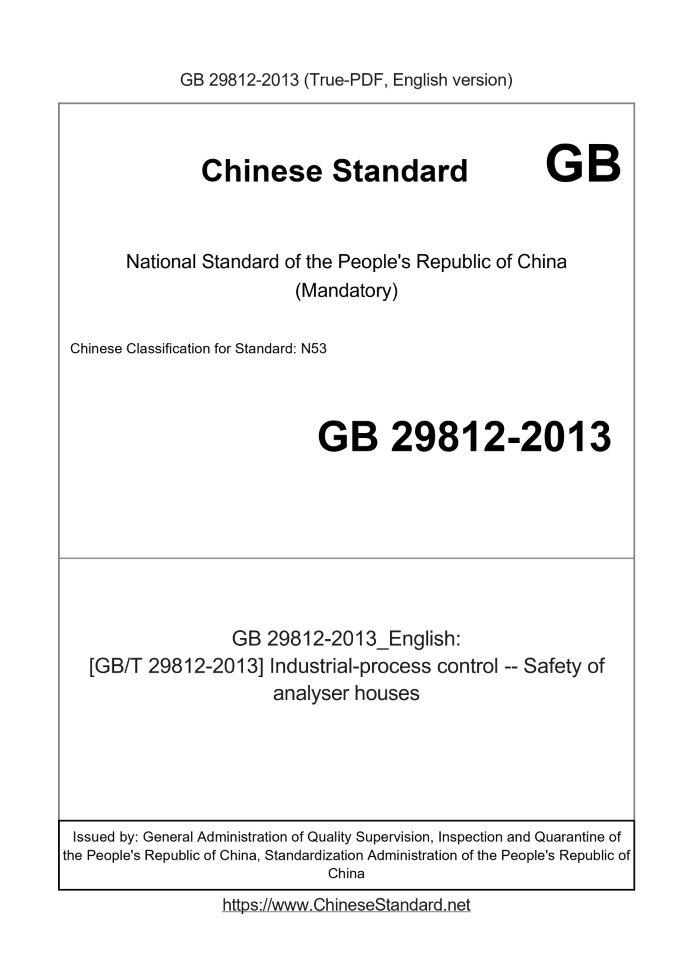

GB 29812-2013 English PDFUS$599.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email. GB 29812-2013: [GB/T 29812-2013] Industrial-process control -- Safety of analyser houses Status: Valid
Basic dataStandard ID: GB 29812-2013 (GB29812-2013)Description (Translated English): [GB/T 29812-2013] Industrial-process control -- Safety of analyser houses Sector / Industry: National Standard Classification of Chinese Standard: N53 Classification of International Standard: 71.040.01 Word Count Estimation: 23,231 Quoted Standard: IEC 60079-16-1990 Adopted Standard: IEC 61285-2004, IDT Regulation (derived from): National Standards Bulletin No. 22 of 2013 Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This standard specifies the installation in the analysis hut (AH) in the process analyzer measurement system requirements for safe operation, in order to guard against fire, explosion and health hazards situations. The expansion of the contents of the IEC GB 29812-2013: [GB/T 29812-2013] Industrial-process control -- Safety of analyser houses---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Industrial-process contro l.Safety of analyser houses ICS 71.040.01 N53 National Standards of People's Republic of China Industrial process control security analysis cabins (IEC 61285.2004, IDT) Published 2013-11-12 2014-05-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China issued ForewordAll technical contents of this standard is mandatory. This standard was drafted in accordance with rules GB/T 1.1-2009 given. This standard uses translation method is equivalent to using IEC 61285.2004 "Safety of industrial process control analysis hut." For ease of use, this standard made the following editorial changes. --- classification 5.5.4.4 and 5.5.4.5 as 5.5.4.4.1 and 5.5.4.4.2, 5.5.4.4 supplement for the title; --- the original text of individual editorial errors were corrected. The standard proposed by China Machinery Industry Federation. The standard measurement and control of the instruments Standardization Technical Committee Technical Committee (SAC/TC124/by the National Industrial Process SC6) centralized. Limited, Sichuan-Chongqing Analytical Instruments Co., Ltd., Shanghai Institute of Measurement and Testing Technology, Shanghai Electronics Co., scientific instruments, poly Micron Technology (Hangzhou) Co., Ltd., Nanjing Analytical Instrument Factory Co., Ltd., Beijing North sub-Mai Hake Analytical Instruments Co., Ltd., Beijing Analysis Institute instrument. The main drafters. Ma Yajuan, Xu Jianping, Fang Peiji, Zhu Minghuai, Zhang Min, Wang Qiaomei, Wang Sen, Liu Hu, Qu Changhong, Lou Xingjun.IntroductionProcess for continuous analyzers and flow characteristics of the process medium is automatically measured, automatically sampling, unattended system design and dimension Care less. This standard specifies the minimum safety requirements typical analyzer house (AH) to be met. A variety of situations that may arise, through more stringent The local grid, industry and enterprise standards requirements. The measurement results transmitted continuously to the process controller, operating platform or recorded as a file. Process analyzer may be used. ---Environmental Analysis; --- personnel protection; --- protective equipment; --- quality measurement/control; --- control process (optimization means); --- saving. In the simplest case, the sensor is directly mounted in the analyzer test substance, no sample extracted. Other cases are from the primary medium stream Sampling, then sent to an analyzer. The system may comprise a plurality of functions, for example. --- sample extraction; --- sample transfer; --- sample processing; --- emissions and/or recovering the sample stream; --- common auxiliary substances and feed; --- flow path switching; --- automatic or manual calibration and verification system; --- signal processing; --- performance monitoring and control. GB/T 19768-2005 given process performance analyzer sample processing system FIG. Analyzer respective units may be installed in combination may be separately disposed. And a combination of analyzer systems have many advantages, they are integrated in the One has more advantages. These advantages include. --- reduce the cost of utilities and install signal cables; --- protection of personnel and equipment and complex components in harsh environmental conditions; --- maintenance facilities; ---Safety. Analyzer can refer to a variety of standard design, and some are flameproof, some of which are intrinsically safe, some suitable areas for 2, some only for non-hazardous Risk area, not all of the analyzer can meet every requirement. Process devices typically include all areas. Area 0, Area 1, Area 2, and non-hazardous areas. Analysis cabin location, the ventilation air source, and the analysis of the cabin area classification analyzer such as economic factors associated with the selection. These factors include the distance the sampling point to the analysis region of the cabin, in which the cabin analysis, analysis from the cabin air to a non-hazardous gas source Distance, and the cost of the analyzer adapted to analyze the classification of cabin area. Industrial process control security analysis cabins1 ScopeThis standard specifies requirements for installation analysis cabin (AH) during the operation of the analyzer measurement system security, in order to take precautions against fire, explosion And the occurrence of health hazards. The standard IEC 60079-16 expanded content, including an analysis of the cabin area 2, and applies to toxic Qualitative damage (must follow the national standards related to toxic hazards). This standard does not apply to the dust explosion-proof occasions. Chapter 4 of the cabin and its location analysis in the process of connecting the device region. Chapter 5 of the analyzer house design, construction and layout, not involving measuring system analyzer portion installed in other places, for example, The sample processing chamber (SCR) or distribution chamber. Chapter 6 provides for measures to reduce the risk of explosion cabin analysis, allowing the device is switched on and the case open in case of power supply service. NOTE. For most liquid, the main limitation is harmful to the human body vapor concentration should be below the explosive (flammable) limit (LEL) (see Chapter 7). With n-pentane for example, the LEL is 1.4% or 14000 × 10-6, this concentration will immediately endanger human life and health. In 30min By any person without the escape of any symptoms of injury or irreversible health effects of the maximum concentration of only 0.5%, or 5000 × 10-6. The interior space is divided into Zone 1 means that the staff are not allowed to enter this area without wearing protective equipment such as respirators device area. If the district will analyze the hut placed close to 1 means no staff in this area without wearing protective equipment. Chapter 7 of the protective measures analyzed cabin personnel from substances harmful to health hazards.2 Normative referencesThe following documents for the application of this document is essential. For dated references, only applies to the version dated paper Pieces. For undated references, the latest edition (including any amendments) applies to this document. IEC 60079-16.1990 Explosive Gas Atmospheres electrical equipment - Part 16. Analysis artificial ventilation hut3 Terms and DefinitionsThe following terms and definitions apply to this document. 3.1 Analyzer cabinet analysercabinet Mounted analyzer single or multiple small closed cabinet. The door can be opened from the outside when the maintenance. 3.2 Analyzer shed analysershelter One or more sides of the open structure and air can flow unimpeded nature, can be mounted inside a single or multiple analyzer. Analyzer Dimension Repair is usually carried out under protection work shed. 3.3 Analysis hut analyserhouse; AH A closed portion of the building or the building, a single or multiple installation process analyzer and auxiliary equipment. By the qualified personnel Regular inspection process, usually with natural ventilation or forced ventilation. And maintenance analyzer indoors. Note. This standard term "AH" range without regard to the configuration of the building structure, regardless of the room, cabinet, or buildings, or whether it is whole, or attached to other Part of the building. 3.4 Sample processing chamber sampleconditioningroom; SCR Analysis cabin (AH) spaced a separate room, there are the sample processing device, the sample material or auxiliary discharge apparatus. 3.5 Toxic substances toxicmaterial Sucked from the ambient atmosphere substances harmful to health, not including the ambient atmosphere through the skin or esophageal adsorption uptake. 3.6 Security personnel safetyback-up care Keep in touch with personnel in hazardous work environments, can help give extra help or support staff. 3.7 External and internal dangers externalandinternalhazards There is a difference between the risk of explosion "external" and "internal." When the analysis hut built from the outside in the incoming combustible material, resulting When analyzing hut flammable gases and vapors hazardous concentrations of place, the presence of external risk of explosion. When the sample analysis or secondary cabin When the leakage of materials to produce a combustible mixture, there is an internal explosion hazard. 3.8 Lower Explosive Limit lowerexplosivelimit; LEL Lower flammability limit lowerflammablelimit; LFL The air concentration of flammable gas or vapor concentration below which, the atmosphere can not be formed explosion or fire. 3.9 Explosive gas atmospheres explosivegasatmosphere Under atmospheric conditions, a mixture of flammable gas or vapor and air, after ignition, the combustion of unburned mixture rapidly throughout the entire environment of. 3.10 Hazardous area hazardousarea Large numbers of explosive gas atmosphere or sufficient quantity expected to occur in claim analyzer structure, installation and use of specialized prevention Measures region (region including 0, 1 and Zone 2). 3.11 Non-hazardous area non-hazardousarea The amount of explosive atmosphere is expected to occur is insufficient structural requirements, installation and use of the analyzer to take special precautions in the area. 3.12 Zone 0 zone0 Continuous or prolonged presence of an explosive atmosphere zone. 3.13 District 1 zone1 Under normal operating conditions, explosive atmosphere may be generated region. 3.14 2 zone zone2 Under normal operating conditions, the region not produce explosive atmosphere, or, if generated, is incidental, and there is only a very Short period of time. 3.15 Flashpoint flashpoint Under standard conditions, the liquid may be evaporated to produce a certain amount of liquid forming the lowest temperature of the combustible vapor/air mixture. 3.16 Ignition temperature ignitiontemperature (T-rating) Flammable gas or vapor and air to form a mixture, the lowest temperature under conditions provided by the hot surface ignition.4 Analysis of connections within the cabin and the position of the process device regionIt should be analyzed to determine the location of the hut (AH) to consider the following factors. 4.1 Response Time It should be estimated from the sampling point to the analyzer line and calculate the necessary flow rate to determine a time lag is generated, the sample flow rate and the loss No suitable. 4.2 Utilities It should be estimated for all utilities such as connection length of the air, steam, electrical, circuits and signals of the sample. 4.3 Security 4.3.1 Location Analysis cabin (AH) to be disposed in the release of toxic or flammable source at a safe distance is not prone to accumulation of these substances local. 4.3.2 Emergency channel It should determine the withdrawal route, and kept clear, and towards the emergency channel to avoid the danger zone as much as possible. 4.3.3 Area Classification Analysis cabin ventilation and air source internal security department or user management area classification process equipment should be determined. 4.3.4 danger Zhou Bian Taking into account the sampling line analyzer or a possibility of danger in the analysis of any adjacent room or cabin. 4.4 Entrance Maintenance personnel and supplies are required entrance, analyzer houses should be placed on the ground or the elevator entrance. Consideration should be given to heavy equipment such as Cylinders and secure mobile analyzer/installation requirements, taking also into account the convenience of process equipment such as heat exchangers, such as maintenance. 5 cabins analysis of design, construction and layout 5.1 General Depending on the type of the sample and the analyzer, the importance of the application and operating environment, the analyzer and the analyzer sampling systems require different protection grade. When the building and maintenance requirements for this kind of work environment unfit, should provide analytical lodge such additional protection. Additional protection can be Meet the instrument performance, and ease of maintenance. Select a room depends on many factors such as. --- analyzer classification and/or the region where the sampling system; --- places range of environmental conditions, including temperature, rainfall, humidity, snow, wind, dust, sand, direct sunlight and corrosive gases; Reliable, accurate and safe operation of a predetermined environmental conditions --- analyzer user; During --- maintenance of equipment and personnel protection requirements; --- system consisting of maintainability and accessibility requirements; Process --- analysis regions where the cabin/environmental conditions (e.g., chemical or equipment loading, unloading and transport, noise, vibration, chemical Leakage, etc.). This chapter describes the analysis of a hazardous area of the cabin and/or placed in cabins Analysis combustible/toxic sample introduction. Those in Analysis of non-hazardous area and the cabin is not flammable or toxic samples, service, or from a mixture of the calibration of the air introduced hazardous area Just hut provisions analyzer accurate and reliable operation of the necessary environmental conditions. 5.2 General Requirements This section specifies general requirements for the safe operation of the analyzer house, without regard to leaks or flammable substances (see Chapter 6) or substances hazardous to health (See Chapter 7). 5.3 size and layout Analysis cabin size analyzer and auxiliary equipment depending on the number, size and access requirements. Should consider all ventilation, and drainage system Systems, spare parts storage, distribution system, on-site records. The minimum recommended space for the length and width of 2.5m, a high 2.3m, barrier-free minimum clear height 2.0m. We recommend leaving 30% of spare space for future supplementary equipment. Avoid ceiling, ducts and air circulation dead. 5.4 structural requirements 5.4.1 Materials of Construction Construction material should have a refractory and anti-corrosion ability of the substance in contact therewith. 5.4.2 Wall It should be determined such as antistatic, corrosion-resistant, weatherproof and fire site requirements, and then select the appropriate materials. If the device against a wall, the wall Require appropriate reinforcement. Penetrate walls should be kept to a minimum, and use comply with the relevant structural and safety requirements (for example, water resistance, fire retardant properties, Flame retardancy and mechanical strength, etc.) of suitable material sealed. 5.4.3 Ground and foundation It should be non-porous surface, and having a tolerance of non-slip floor material may spill. Ground to be clean, for example, to consider light Slight slope and drainage systems. If the surface water drainage system, drainage system should be no hindrance to the analysis hut, the liquid can be completely discharge. Measures should be taken to prevent the ingress of liquid outside. These include higher ground, or setting it higher than the external stairs at the entrance Or suitable ramp or bottom of the sealed cabin. 5.4.4 Door Doors should open outwards and be self-closing. Doors should be installed "emergency escape lock" so that once locked from the inside to open. Need security on the door Mounted crushing safety glass. If the main door inside and outside the export of obstacles need to be considered in the emergency exit door away from the main gate or the second set, for example, red Hit escape board. Note. When analyzing the lodge is part of the building, other security considerations more important. 5.4.5 Window Unless the cabin is divided sealed and placed in non-hazardous area non-hazardous area, otherwise, all the windows of the cabin analysis should be tightened to prevent analysis (Dangerous) vapor infiltration. 5.4.6 roof Suitable roof designed to withstand loads (snow, equipment, people, etc.). 5.5 Equipment 5.5.1 Lighting Emergency lights or lighting devices should be kept in operation. Minimum illumination shall meet the requirements of the relevant standards or work properly. 5.5.2 Communications If the analysis can not be detected around the device sent from the security alert the cabin, to be received in the alarm analysis cabin features should be considered Installation of a telephone to the place was on duty. 5.5.3 piping and valves Under normal operating conditions, hut Analysis pipes, vessels and equipment, the opening should be avoided to prevent any leakage of dangerous substances to the analysis of small house. Functional substance and a valve in the conduit should be clearly identified. Shutoff valve should be disposed outside the analyzer house. The exhaust gas should be collected in a closed system Or delivered to the outside of the cabin analysis facilities. There is a fault in the case, all possible transport large quantities of hazardous substances into the cabin analysis Line, and analysis from the analysis hut inlet apical cabins should have automatic shut off valve, throttle or restrictor means. 5.5.4 Utilities 5.5.4.1 the amount of dangerous goods Auxiliary dangerous goods should be limited to the minimum amount needed to operate the analyzer system. 5.5.4.2 Hazards identification Any place with a fire, explosion or unhealthy should be clearly labeled. 5.5.4.3 choking agents (e.g. nitrogen, carbon dioxide) 5.5.4.3.1 all cabin Analysis asphyxiant line connected analyzer house outside the pipeline should be installed or throttle limiting means limit To meet the requirements made of the flow rate of the ventilation system. 5.5.4.3.2 cabin when the analysis memory potential risk of hypoxia (for example, backup instrument air with nitrogen), the analysis should Ann hut Hypoxic air detector means, and a fault alarm safe human duty site and remote locations. 5.5.4.4 auxiliary storage of dangerous goods 5.5.4.4.1 dangerous goods shall be stored in the auxiliary outer cabin analysis. 5.5.4.4.2 If inevitable auxiliary gas reservoir or a high pressure gas cylinder of calibration gas in the analysis of the hut, the isolation should be stored in a continuous ventilation A cabinet or directly to the station via pressure relief valve and the safety rupture disc is mounted on the cylinder in order to prevent high pressure gas cylinder caused by fire heat The pressure rise. Be safely released from the safety rupture disc of the gas leaking outside the cabin analysis. Security measures can also be relevant qualifications sector Shi carried out. 5.5.5 Fire Equipment Suitable fire-fighting equipment should be placed at the door. 5.5.6 Ventilation Installation of ventilation equipment for climate control, anti-corrosion, anti-suffocation, explosion-proof (see Chapter 6) and/or personal safety (see Chapter 7). 5.5.6.1 General All ventilation air changes per hour should be no less than five times. Ventilation air source is preferably provided in the non-hazardous area, if this can not be achieved to Seeking, in equipment suitable for analysis cabin zone 2 region, or worse, an air zone 2 may be used. Or one or intake port mounted More combustible gas detector monitors, when the detected value is less than 2......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB 29812-2013_English be delivered?Answer: Upon your order, we will start to translate GB 29812-2013_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB 29812-2013_English with my colleagues?Answer: Yes. The purchased PDF of GB 29812-2013_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
