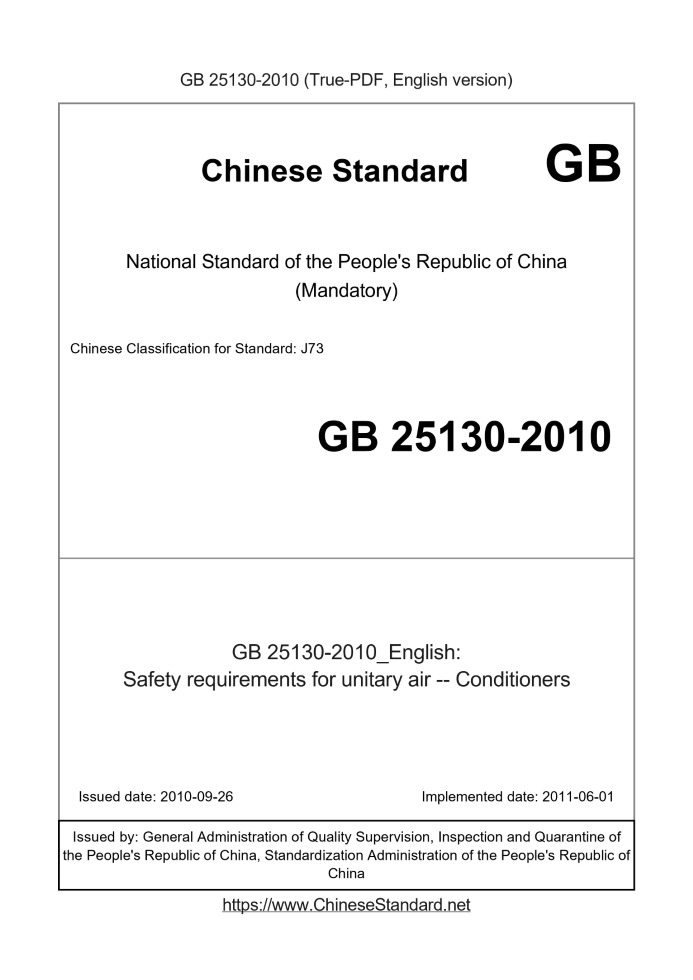

GB 25130-2010: Safety requirements for unitary air -- Conditioners
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB 25130-2010	279	Add to Cart	3 days	Safety requirements for unitary air -- Conditioners	Valid

Similar standards

GB/T 25861 GB/T 25127.1 GB/T 25127.2

Basic data

Standard ID: GB 25130-2010 (GB25130-2010)
Description (Translated English): Safety requirements for unitary air -- Conditioners
Sector / Industry: National Standard
Classification of Chinese Standard: J73
Classification of International Standard: 27.200
Word Count Estimation: 12,172
Date of Issue: 2010-09-26
Date of Implementation: 2011-06-01
Quoted Standard: GB 4208-2008; GB 4343.1; GB 4706.1-2005; GB 4706.17; GB 4706.32-2004; GB 5013.4; GB 5023.3; GB 5226.1-2008; GB 9237-2001; GB 17625.1; GB/T 17758; GB 19212.5; GB 19212.7; GB 50171; JB/T 4750
Regulation (derived from): Announcement of Newly Approved National Standards No. 6 of 2010 (total 161)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This Chinese standard specifies the unit air conditioners security requirements. This standard applies to cooling capacity than or equal to 7000V voltage less than 600 V AC power supply air cooling and water cooling unit air conditioners (single cold type, heat pump, heat pump with auxiliary electric and pure electric heating type heating type). This standard also applies to multi air conditioning (heat pump) unit, duct air -conditioning (heat pump) units, rooftop air conditioning (heat pump) units, dehumidifiers, heat pump water heater, new air conditioning heat pump units and so on. This standard does not apply to non-mechanical refrigeration unit means air conditioners.

GB 25130-2010: Safety requirements for unitary air -- Conditioners

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Safety requirements for unitary air.Conditioners ICS 27.200 J73 National Standards of People's Republic of China Unit air conditioner security requirements Issued on. 2010-09-26 2011-06-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

All the technical contents of this standard is mandatory. The standard proposed by China Machinery Industry Federation. This standard by the national refrigeration and air conditioning equipment Standardization Technical Committee (SAC/TC238) centralized. This standard is drafted by. Hefei General Machinery Research Institute, Guangdong Province Jeroen air conditioning equipment company, Nanjing Wuzhou Group Co., Ltd., South Beijing days plus air-conditioning Co., Ltd., Guangdong Midea Commercial Air Conditioning Equipment Co., Zhejiang Xinyi Control System Co., Ltd., Hefei General Machine Electrical product testing hospital. Participated in the drafting of this standard. Shanghai Mitsubishi Electric air conditioner · turbot Electric Co., Ltd., Daikin Air Conditioning (Shanghai) Co., Ltd., Ningbo Oakes Electric Co., Ltd., Qingdao Haier Air Conditioning Electronics Co., Ltd., Shenzhen McQuay Air Conditioning Co., Ltd., Guangzhou York air-conditioning refrigeration provided Preparation Ltd., Trane Air Conditioning Systems (China) Co., Ltd. The main drafters of this standard. Zhu Zhen Tao, Zhao Xun, Tan to Aberdeen, Army Liang, Tian Ming forces, Qin Miao Qing, Ma Jinping, Tong Xingsheng, Shijian Chun, Jiang Chunyu, German national defense, Zhou Hongjun, Zhang Vega, manager of Kuang. This standard by the National Standardization Technical Committee refrigeration and air conditioning equipment responsible for the interpretation. This standard was first formulated. Unit air conditioner security requirements

1 Scope

This standard specifies the safety requirements for unit air conditioner. This standard applies to refrigeration greater than or equal 7000W, 600V AC power supply voltage is less than the rated air-cooled and water-cooled single Element air conditioner (single-cold type, heat pump, heat pump and auxiliary heating with a pure electric heating heating type). This standard also applies to multi air conditioning (heat pump) unit, air duct air-conditioning (heat pump) units, roof air-cooled air-conditioning (heat pump) Machine Group, dehumidifiers, heat pump water heater, heat pump units and so on complete fresh air. This standard does not apply to non-mechanical refrigeration mode of unitary air conditioner.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB 4208-2008 housing protection (IP Code) (IEC 60529.2001, IDT) GB 4343.1 EMC household appliances, electric tools and similar apparatus - Part 1. Emission (GB 4343.1- 2009, IEC /CISPR14-1.2005, IDT) GB 4706.1-2005 household and similar electrical appliances General requirements for safety (IEC 60335-1.2001, IDT) GB 4706.17 Household and similar electrical appliances motor - compressors - Particular requirements (GB 4706.17-2004, IEC 60335-2-34.1999, IDT) GB 4706.32-2004 household and similar electrical appliances - Particular requirements for heat pumps, air conditioners and dehumidifiers (IEC 60335- 2-40.1995, IDT) GB 5013.4 rated voltage of 450/750V and below rubber insulated cables Part 4. Cords and flexible cables (GB 5013.4- 2008, IEC 60245-4.2004, IDT) GB 5023.3 rated voltage of 450/750V and below PVC insulated cables - Part 3. Non - sheathed cables for fixed wiring (GB 5023.3-2008, IEC 60227-3.1997, IDT) GB 5226.1-2008 Safety of machinery electrical equipment Part 1. General requirements (IEC 60204-1.2005, IDT) GB 9237-2001 cooling and heating with a mechanical refrigeration system security requirements (eqvISO 5149.1993) GB 17625.1 Electromagnetic Compatibility Limits for harmonic current emissions (equipment input current ≤16A) (GB 17625.1- 2003, IEC 61000-3-2.2001, IDT) GB/T 17758 unit air conditioner GB 19212.5 - Safety - Part 5 power transformers, power supply units and similar products. general-purpose special isolation transformers Requirements (GB 19212.5-2006, IEC 61558-2-4.1997, MOD) GB 19212.7 Safety - Part 7 power transformers, power supply units and similar products. general purpose safety isolating transformer Particular requirements (GB 19212.7-2006, IEC 61558-2-6.1997, MOD) GB 50171 electrical equipment installation engineering cubicle and secondary circuit wiring for construction and acceptance JB/T 4750 refrigeration apparatus pressure vessels

3 general requirements

The structure of the air conditioner should meet the safe operation under normal use, negligence may occur even in normal use, it will not lead to Risk to people and the surrounding environment. All relevant tests shall be specified by the standard is checked.

4 General conditions for tests

To order separate trials or prototype sample, test, prototype in the state in which the test, the test environment, test prototype rated frequency Rate, rated voltage and rated input power with auxiliary heating of the air conditioner and other requirements, according to GB 4706.32-2004 in Chapter 4 Provisions. Category 5 In terms of protection against electric shock, the air conditioner should be consistent with the relevant provisions of GB 4706.1-2005 class Ⅰ appliances. Operating handles, knobs And some other parts and electronic control circuit can be used in Ⅱ or type Ⅲ GB 4706.1-2005 implement the relevant provisions. Air conditioner should be GB waterproof moisture proof classification 4208, the outdoor unit should be at least IPX4, the indoor unit can be IPX0.

6 signs and instructions

Flag of the air conditioner should be GB/T 17758 requirements, and add the following. a) a single refrigerant directly give their identity. Mixed refrigerant, should give its chemical symbol. b) cooling system the maximum allowable working pressure. c) except IP code according to water level identified, IPX0. Other relevant requirements, should refer to GB 4706.32-2004 specified in Chapter 7.

7 Protection against electric shock

7.1 air conditioner housing structure and adequate protection response to accidental contact with live parts. Under normal operating state, if not After using the tool to open the door and remove the lid or removable parts should also be able to prevent accidental human contact with live parts. In the correct installation Under the state, the air conditioner should be used in the test shown in Figure refers to GB 4706.1-2005 and GB 4706.1-2005 8.1.1 requirements in advance Line protection against electric shock test, the test finger shall not touch live parts. 7.2 pairs need to be checked and adjusted, operation or maintenance of electrical equipment and control elements, should be centrally installed in a predetermined degree of protection of the electrical control System inside the control box protection requirements according to GB 4208 classification, shall not be less than IP22, protection and grounding. Air conditioner housing, knobs Rotating shaft or within the switch should not be charged. Compliance is checked by inspection and test. 7.3 auxiliary heating with the air conditioner, you should not use a bare electric heating wire. Compliance is checked by inspection judgments.

8 Power input and current

8.1 in the input power deviation of rated voltage, rated frequency and nominal operating conditions, the air conditioner should be in the range specified in Table 1. Table 1 Input power deviation Category rated input power deviation When the air conditioner nominal cooling and heating conditions on behalf of the nominal value of 10% Electric heating means nominal value of 5% -10% 8.2 rated voltage, rated frequency and nominal operating conditions, the air conditioner operating current should not exceed 110% of rated current. By measuring Compliance is checked.

9 fever

In normal use, the temperature of the air conditioner and its surroundings should not be too high. Press GB 4706.32-2004 provisions 11.2 -11.9 Test conditions, by the temperature of the components and the surrounding environment was measured to determine their eligibility. 10 Leakage current and electric strength at operating temperature 10.1 at operating temperature, the air conditioner leakage current should not be too large, and should have sufficient electric strength. The air conditioner to work in the name of the steady state operating conditions. The air conditioner with auxiliary heater in heating conditions 1.06 times the rated voltage. Only electric heater heating the air conditioner in heating conditions 1.15 times the rated power input. Leakage current can be measured with a 13.2 GB 4706.1-2005 through provisions. Air conditioner fixed installation, the leakage current should be less than 2mA/kW rated power input. Accessible to the public air conditioner leak The maximum current should be less than 10mA, not accessible to the public of the air conditioner, the maximum leakage current should not exceed 30mA. 10.2 air conditioner electric strength test should be carried out, the insulation withstand 1min, frequency of 50Hz or 60Hz fundamental sine wave voltage, After the test off the power immediately. The test voltage is applied between the metallic parts of live parts and accessible parts covered with metal foil, the pair live parts and accessible There are class II constructions having intermediate metal between the member across the basic and supplementary insulation applied voltage. Test voltage. --- To bear safety extra-low voltage in normal use basic insulation to 500V --- For other basic insulation to 1000V --- For additional insulation to 2750V --- Reinforced insulation to 3750V The initial test, the applied voltage is not more than half the prescribed voltage value, and then quickly increased to full value. During the test, no breakdown occurs. Note. For this test of high voltage power supply short-circuit current Is and tripping current Ir, 13.3 GB 4706.1-2005 reference to the provisions of Table 5. 11 resistant to moisture 11.1 The air conditioner should be able to prevent water from entering the electrical components. The outdoor unit should not be the main chamber and the condensation of water immersion, the indoor unit evaporator rain Defrost water outside the machine generated should be unimpeded from the plane. Air conditioner outdoor unit should be by water spray test of 11.2, followed by 11.3 test conducted overflow, then defrost test (with The air conditioner defrost apparatus to bear a defrost test under the most adverse conditions) and leakage current and electric strength test to determine whether qualified. After conducting these tests, visual inspection inside the enclosure. Water entering the housing should not reduce creepage distances and clearances to Chapter 24 Regulation Predetermined minimum value. 11.2 air conditioner outdoor unit should be able to withstand the GB 4208 in IPX4 grade of water spray test. 11.3 The air conditioner should be overflow test. The air conditioner according to the normal position of use, it shall be blocked discharge pipe drain pan, and carefully water Filled with water to the edge of the disc, and can not have a splash. Then, drain pan to bear the continuous overflow, overflow rate to be adjusted to the amount of wind is 1m3/s when Corresponding overflow rate (about 17cm3/s), and to turn on all the fans. The test is carried out continuously 30min, or until the water from the air Machine discharging. 11.4 splash conducted leaching tests of the air conditioner, according to the provisions of GB 4706.32-2004 15.4 were tested. 12 Leakage current and electric strength 12.1 air conditioner leakage current should not be too large, and should have sufficient electric strength. By 12.2 and 12.3 of tests to check its Eligibility. 12.2 In the air conditioner at room temperature and does not carry out the test case of connecting the power supply. Leakage current test voltage of the air conditioner. The single-camera group, is 1.06 times the rated voltage; Three-phase units, is 1.06 times rated voltage, divided by three. Within 5s after application of the test voltage, leakage current is measured according to the provisions. Air conditioner fixed installation, the leakage current should be less than 2mA/kW rated power input, accessible to the public air conditioner leak The maximum current should be less than 10mA, not accessible to the public of the air conditioner, the maximum leakage current should not exceed 30mA. 12.3 After the leakage current test, the insulation is immediately subjected to 1min, frequency of 50Hz or 60Hz fundamental sine wave voltage, Test Test voltage is applied to the site and are shown in Table 2. Accessible parts of insulating material, covered with metal foil. The initial test, the applied voltage does not exceed half of the predetermined voltage value, and then quickly increased to full value. During the test the breakdown should not occur. The test shall be taken to avoid components of the electronic circuit damage. Table 2 Test voltage volts The test voltage is applied to the position Between live parts and accessible parts. --- During which only basic insulation isolated --- Therebetween with reinforced insulation isolated For double-insulated parts with only basic insulation and live parts separated And metal parts. --- Between live parts --- Between accessible parts Note. For this test of high voltage power supply short-circuit current Is and tripping current Ir, 13.3 GB 4706.1-2005 reference to the provisions of Table 5. 13 Overload protection of transformers and associated circuits When the air conditioner from a transformer power supply circuit should be used to meet the requirements of GB 19212.5 and GB 19212.7 transformer. meets the It may be required transformer short circuit or overload test. Otherwise, by applying the most unfavorable short circuit, or may occur in normal use of the Overload is checked. In this case the appliance to 1.06 times to 0.94 times the rated voltage or the most negative voltage power supply, the winding temperature Degree should not exceed the limits specified in Table 3. Table 3 Maximum winding temperature in degrees Celsius Type of protection Insulation material classification and temperature limits AEBFH 200 220 250 --- If the impedance protection --- If the protective device during the first hour of action to protect, max. --- The protective device after the first hour of action to protect, max. --- The protective device after the first hour of action to protect the arithmetic mean Abnormal operation 14 The design of the air conditioner should be avoided whenever possible fire hazard due to non-normal operation and malfunction caused damage safety or protection against electric shock Mechanical hazards. Failure transmission medium stream, or any failure of the controller should not be dangerous. For the cooling capacity of the air conditioner 24.36kW or less, according to GB 4706.32-2004 specified in Chapter 19 of the test and inspection Check their eligibility. For the cooling capacity of the air conditioner in 24.36kW, according to the provisions of GB 4706.32-2004 be in 19.2,19.3,19.4,19.5 Test and check their eligibility. The air conditioner with auxiliary heating device tested in accordance with the provisions of GB 4706.32-2004 in 19.8 And check their eligibility. Design and use of air conditioners electronic circuit of the air conditioner should not be due to the failure of the electronic circuit caused by an air conditioner leakage, fire, mechanical Risk or a combination of danger. Unless the electronic circuit in qualifying GB 4706.32-2004 specified in 19.11.1, otherwise, by the Some lines or line parts according to GB 4706.32-2004 fault conditions specified in 19.11.2 evaluated to determine whether the electronic circuit qualified. During the test and after the test, the air conditioner shall comply with the requirements of GB 4706.32-2004 in 19.14. 15 Stability and mechanical hazards 15.1 In addition to the air conditioner fixed mounted, placed on a flat surface using the air conditioner should have sufficient stability. In the case of the connection pipe is not installed, the air conditioner can be placed on a 10 ° angle with the horizontal plane, it should not be overturned. test Nor should it not normally in contact with the plane of the support portion in contact with this plane. Air conditioner with auxiliary heating should be at a 15 ° angle with the horizontal plane of the test should not be overturned. If the air conditioner in a Or more orientations overturned, the test will have Chapter 9 in each position will be overturned. During the test, the temperature rise should not exceed GB 4706.32-2004 specified in Table 7. Body mass of more than 40kg of the air conditioner, all positions of the body (except ground) is applied an external force of 100N without tipping over the structure, Subject to this limit. 15.2 In normal use, it is possible to reach people moving parts, should set the appropriate protective cover or the like, in order to staff Provide adequate protection. Shields or the like should be non-detachable parts and shall have adequate mechanical strength. By visual inspection, mechanical strength The use of a test, and tests shown in Fig GB 4706.1-2005 similar means no more than a force of 5N, test Eligibility. The test means you should have a diameter of 50mm circular baffle. The test finger shall not touch hazardous moving parts. 16 Mechanical strength 16.1 air conditioners should have sufficient mechanical strength and shall be constructed to withstand the normal use of reckless operation may occur. By GB 4706.1- 2005 impact test specified in Chapter 21 to determine eligibility. 16.2 pressure vessel design, manufacture, marking and test the implementation of the required JB/T 4750's. 16.3 can store the liquid refrigerant, and with the other components of the refrigeration system shall be cut off pressure vessel safety relief devices overpressure Protection, pressure relief device according to GB 9237-2001 5.3.2 in the relevant provisions. 17 Structure 17.1 If the air conditioner is marked with IP rating, it should meet the relevant requirements of GB 4208, and by the relevant tests to check their eligibility. 17.2 split air conditioner outdoor unit when exposed to rain or snow and frost, live parts shall not be hazardous. 17.3 The air conditioner in the structure such that the electrical insulation from condensation may affect the evaporator surface water droplets in, should not be the sink drain, drain Hoses and other components at the time of impact drainage. Even in the hose rupture or leakage sealing, electrical insulation will not be affected. By inspection Determine eligibility. 17.4 air conditioner shell should be smooth, there should be in normal use or du......
