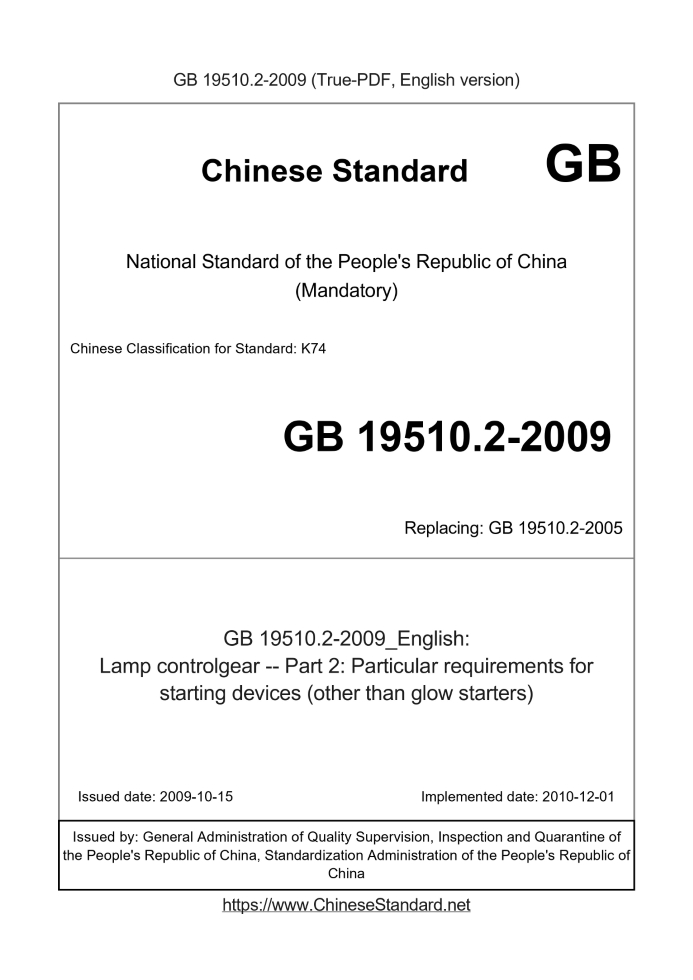

GB 19510.2-2009 English PDF

US$334.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB 19510.2-2009: Lamp controlgear -- Part 2: Particular requirements for starting devices (other than glow starters)
Status: Valid

GB 19510.2: Historical versions

Standard IDUSDBUY PDFLead-DaysStandard Title (Description)Status
GB 19510.2-2009334 Add to Cart 3 days Lamp controlgear -- Part 2: Particular requirements for starting devices (other than glow starters) Valid
GB 19510.2-2005679 Add to Cart 3 days Lamp controlgear -- Part 2: Particular requirements for starting devices (other than glow starters) Obsolete

Similar standards

GB/T 9473   GB/T 24825   GB/T 32483.2   GB/T 19510.1   GB 19510.1   GB 19510.3

Basic data

Standard ID: GB 19510.2-2009 (GB19510.2-2009)
Description (Translated English): Lamp controlgear -- Part 2: Particular requirements for starting devices (other than glow starters)
Sector / Industry: National Standard
Classification of Chinese Standard: K74
Classification of International Standard: 29.140.99
Word Count Estimation: 17,148
Date of Issue: 2009-10-15
Date of Implementation: 2010-12-01
Older Standard (superseded by this standard): GB 19510.2-2005
Adopted Standard: IEC 61347-2-1-2006, IDT
Regulation (derived from): Announcement of Newly Approved National Standards No. 11 of 2009 (No. 151 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This Chinese standard specifies special requirements for the following 1000V 50Hz or 60Hz AC power fluorescent and other discharge lamps start device (other than glow starters and triggers). The boot device can produce no more than 100kV start pulse, and with IEC 60081, IEC 60188, IEC 60192, IEC 60662, IEC 60901, IEC 61167, GB 18774, GB 16843, GB 19510. 9, GB 19510. 10 other standards prescribed lights and together with the ballast. This standard does not apply to a glow discharge lamp starter or loaded starting device, or manual manipulation of the boot device. Fluorescent lamps with preheating transformer requirements given by the GB 19510. 9. Performance requirements see GB/T 19655.

GB 19510.2-2009: Lamp controlgear -- Part 2: Particular requirements for starting devices (other than glow starters)


---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Lamp controlgear.Part 2. Particular requirements for starting devices (other than glow starters) ICS 29.140.99 K74 National Standards of People's Republic of China GB 19510.2-2009/IEC 61347-2-1.2006 Replacing GB 19510.2-2005 Control devices - Part 2 of the lamp. Starting devices (other than glow starters) - Particular requirements (IEC 61347-2-1.2006, IDT) Posted 2009-10-15 2010-12-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Introduction Ⅲ Introduction Ⅴ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 2 General requirements 5 General test description 2 6 Category 2 7 mark 3 8 accidental contact with live parts of the measures to prevent 3 9 Terminal 3 10 protection grounding device 3 11 Moisture resistance and insulation 3 12 Dielectric strength 3 Heat winding 13 Test 4 14 Fault Status 4 Fever 415 Detached Starters Voltage trigger pulse 16 5 17 Mechanical strength 5 18 Structure 6 19 creepage distances and clearances 6 20 Screws, current-carrying parts and connections 6 21 heat, fire and resistance to tracking 6 22 corrosion 6 Appendix A (normative) test to determine whether a conductive part is a live part may cause an electric shock. 8 Particular requirements for 8 Appendix B (normative) control device for thermally protected lamp Particular requirements for electronic control device of the lamp 8 Appendix C (normative) with thermal protector Annex D (normative) heating test control apparatus for thermally protected lamp of claim 8 Annex F (normative) anti-convection air chamber 9 Derivation of Annex G (normative) values of pulse voltages 9 Annex H (normative) Test 9 Annex I (normative) Mechanical strength test 9 Appendix J (normative) measure spherical discharger Code 10 References 11 GB 19510.2-2009/IEC 61347-2-1.2006

Foreword

All technical content in this section is mandatory. GB 19510 "Lamp control" is divided into 14 parts. --- Part 1. General requirements and safety requirements; --- Part 2. starting devices (other than glow starters) - Particular requirements; --- Part 3. Tungsten with AC/DC buck converter electronic Particular requirements; --- Part 4. Particular requirements for the exchange of electronic fluorescent ballasts; --- Part 5. Particular requirements for dc supplied electronic ballasts for general lighting of; --- Part 6. Public transport lighting Particular requirements for dc electronic ballasts; --- Part 7. DC electronic ballasts for aircraft lighting Particular requirements; --- Part 8. DC electronic ballasts for emergency lighting Particular requirements; --- Part 9. Particular requirements for ballasts for fluorescent lamps; --- Part 10. discharge lamps (excluding fluorescent lamps) with the special requirements of the ballast; --- Part 11. high frequency cold start tubular discharge lamps (neon) Specific requirements for electronic exchange and the frequency converter; --- Part 12. Particular requirements for lighting and miscellaneous electronic circuits associated with; --- Part 13. discharge lamps (excluding fluorescent lamps) or AC supplied electronic ballasts for special requirements; Part --- Article 14. LED module with special requirements for dc or ac electronic control device. This is Part 2 GB 19510's. This section should be used with GB 19510.1-2009, it is appropriate in terms of GB 19510.1-2009 supplement or repair Formulated from the following changes. This section identical with IEC 61347-2-1.2006 "starting devices (other than glow starters) controlling the lamp Part 2-1 Special requirements "(in English). For ease of use, this section made the following editorial changes. a) "IEC 61347-2-1" to "this part", "IEC 61347-2-1 standard number" be replaced by "GB 19510.2"; b) the international standard "(note .)" Remove form in brackets; "." C) used in place of a decimal point as the decimal point, ""; d) For other international standards referenced it has been adopted as the equivalent of a standard, this part of the country with reference to these national standards Or industry standards instead of the corresponding international standards, and the rest not tantamount to the adoption of a standard for the international standards in this section are Direct reference (see Part 2 of this chapter). This Part replaces GB 19510.2-2005 "Part 2 lamp control device. starting devices (other than glow starters) Special Claim". This section compared with GB 19510.2-2005 main differences are as follows. --- In Chapter 1, the elimination of the range "This section relates only to the world's most needed ballast and lamp starter"; --- Changes in the reference standard normative references, the GB/T 2423.55 changed to GB/T 2423.55-2006, will GB/T 311.6 voltage measurement recommendation was changed to GB/T 311.6 standard voltage measuring void ball gap (a ground ball); --- Increase the concept of "trigger" in the definition of 3.1; --- Added "voltage source" in the definition of 3.5; --- 3.6 definition deleted "nominal"; --- In the last line in Chapter 12 "1min" is changed to "GB 19510.1-2009 in Chapter 12"; GB 19510.2-2009/IEC 61347-2-1.2006 --- "The value" 14.2 changes to "Ratings"; --- Changed to "test shall be in accordance with GB 19510.1-2009 5.5" in the last line 15; --- Increase in the 18.2 "mark on if there is marked, the time limit can be extended to 30s"; --- Increasing the sequence number "a), b)" in Figure 1 start of the trigger voltage measurement circuit and the 3 "dielectric loss tangent (At 10kHz). tanδ≤20 × 10-3 "is changed to" phase angle (at 10kHz). tanδ = 20 × 10-3 "; --- In Annex I of Chapter 19 to Chapter 20; --- Change in reference in IEC 60410 for the IEC 60410. 1973. This section of the Appendix A, Appendix B, Appendix C, Appendix D, Appendix E, Appendix F, Appendix G, Appendix H, Appendices I and J are normative appendix. This part is proposed by the China National Light Industry Council. This part of the National Electric lighting Standardization Technical Committee (SAC/TC224) centralized. This section drafted by. National Electric Light Source Quality Supervision and Inspection Center (Shanghai), Fujian JK Yaming Electric Co., Ltd., Foshan City-wide Electric Lighting Co., Ltd. Drafters of this section. Mei Li, Yuan Qi, Zhang Quan, Yang Chi district, Cooper rights. This section was first released in 2005, this revision is the first time. GB 19510.2-2009/IEC 61347-2-1.2006

Introduction

This section and the various parts constituting the GB 19510.2 ~ GB 19510.14 regulation when referring to GB 19510.1-2009 any provision of Set the terms and scope of the implementation of the order of the trial, but also provides the necessary additional requirements. GB 19510.2 ~ GB 19510.14 in Each part is separate, and do not refer to each other. If this section by "a section in accordance with GB 19510.1-2009 requires," this sentence to refer to the GB 19510.1-2009 A provision requirements, the meaning of this statement is in accordance with all the requirements of this provision, but obviously does not apply to GB 19510.2 ~ Except for the contents of the control device GB 19510.14 specific type of lamp. GB 19510.2-2009/IEC 61347-2-1.2006 Control devices - Part 2 of the lamp. Starting devices (other than glow starters) - Particular requirements

1 Scope

This part of GB 19510 specifies the use of 50Hz or 60Hz 1000V ac power fluorescent and other discharge lamps With starting devices (other than glow starters and triggers) of special requirements. The starting device can generate no more than 100kV start pulse, And with the IEC 60081, IEC 60188, IEC 60192, IEC 60662, IEC 60901, IEC 61167, GB 18774, GB 16843, GB 19510.9, GB 19510.10 lamp ballasts and other standards prescribed together. This section does not apply to glow starters or load discharge lamp starter starting device, or manual manipulation. Fluorescent preheating transformer The requirements given by the GB 19510.9. NOTE. glow starter see GB 20550. Performance requirements see GB/T 19655.

2 Normative references

The following documents contain provisions which, through reference in this Part of GB 19510, constitute provisions of this part. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. This part of GB 19510.1-2009 Chapter 2 of the reference standards and reference the following criteria. GB/T 311.6-2005 standard high voltage measuring air gap (IEC 60052.2002, IDT) GB/T 2423.55-2006 Environmental testing for electric and electronic products - Part 2. Environmental Test Test Eh. Hammer tests (IEC 60068-2-75.1997, IDT) GB/T 14598.15-1998 Electrical relays - Part 8. Thermal electrical relays (idt IEC 60255-8.1990) GB 16843 Single-capped fluorescent lamps - Safety requirements (GB 16843-2008, IEC 61199.1999, IDT) GB 18774 Safety requirements for double-ended fluorescent lamps (GB 18774-2002, idt IEC 61195.1999) Part 1 GB 19510.1-2009 lamp control apparatus. General and safety requirements (IEC 61347-1.2007, IDT) GB 20550 fluorescent glow starter (GB 20550-2006, IEC 60155.1993, IDT) IEC 60188 high pressure mercury lamp IEC 60192 Low pressure sodium IEC 60662 HPS IEC 61167 metal halide lamps ISO 3864 Safety colors and safety signs

3 Terms and Definitions

This section uses the terms and definitions as well as the following terms and definitions GB 19510.1-2009 given in Chapter 3. 3.1 To start the discharge lamp to provide the required electrical conditions suitable means, such electrical conditions by the device itself or with its lines GB 19510.2-2009/IEC 61347-2-1.2006 He produced elements together. 3.2 Usually refers to the starting device for fluorescent lamps, the electrodes used to provide the necessary warm-up, and ballast together, and series impedance of an electrical lamp Pressure shocks. Note. The release starting voltage pulse starter element may be triggered, for example, the phase angle of the same type of position; or non-trigger type. 3.3 Can be prevented for a long time can not start trying to start a lamp (for example. an electrode has been deactivated lamp) boot device. Note. "prevent attempts to start" means in the case of starter, disconnect the starting current line, and/or the start line of the current limit is equal to or Degree is smaller than the rated lamp current. In the case of using triggers, "to prevent attempts to start" means the occurrence of the pulse has stopped, or voltage pulse amplitude decreased significantly. 3.4 Up The maximum output voltage pulse at the trigger end is generated. 3.5 Output (in the open state) and the square of the voltage generated by the power supply (same terminal) of the internal impedance than the voltage source. 3.6 Having the same diameter and press the two metal balls installed at a distance, under the conditions specified for the measurement exceeds the peak 15kV Voltage.

4 General requirements

GB 19510.1-2009 accordance with Chapter 4 requirements.

5 General test description

In accordance with the requirements of GB 19510.1-2009 Chapter 5 as well as the following additional requirements. 5.1 for starting devices having different electrical characteristics of the lamp Start means for the different electrical characteristics of the lamp, and shall state in the most unfavorable light tested together. 5.2 Number of samples Shall submit the following number of samples used for testing. --- Chapter 6 through Chapter 12 and Chapter 15 ~ Chapter 22 requirements specified for the test. a sample; Chapter 14 --- test requirements specified in. a sample (if necessary, after consultation with the manufacturer, can increase the sample or parts). Category 6 In accordance with the requirements of GB 19510.1-2009 Chapter 6 as well as the following additional requirements. The output voltage The output voltage will start the device classified as follows. --- 5kV or less (including 5kV); --- 5kV ~ 10kV (including 10kV); GB 19510.2-2009/IEC 61347-2-1.2006 --- 10kV ~ 100kV (including 100kV).

7 logo

7.1 Mandatory Signs According to GB 19510.1-2009 7.2 requirements starting device shall be clearly and permanently marked with the following signs. Content --- GB 19510.1-2009 in 7.1 a), b), c) and f) prescribed; and --- Voltage spikes flag that marked the peak voltage exceeds 1500V. Cable having such a voltage should be marked this Kinds of signs. For more than 5kV pulse voltage trigger, the flag should be a flashing symbol (dotted arrow) (see ISO 3864). 5kV or more triggers do not need to sign a ground terminal, because this trigger is equipped with a predetermined time limit. 7.2 Supplementary flag In addition to the mandatory signs, if necessary, should be marked on the following elements starting device, or write to the manufacturer's catalog or similar article Member. --- GB 19510.1-2009 in 7.1 d), e), h), i), j), k) and l) of the contents; and --- Description time limit, if you start with such a device, then the time limit; --- If this kind of ballast is designed to be able to control the size of the pulse voltage, the ballast shall be marked to start supporting the use of the device and Catalog number. Certain conditions on the use of boot device.

8 measures to prevent accidental contact with live parts

GB 19510.1-2009 accordance with the requirements of Chapter 10.

9 Terminals

GB 19510.1-2009 accordance with Chapter 8 requirements. 10 protection grounding device In accordance with the requirements of GB 19510.1-2009 Chapter 9. 11 Moisture resistance and insulation In accordance with the requirements of GB 19510.1-2009 Chapter 11 as well as the following requirements. Without the aid of tools will be able to disassemble the electronic component, the housing and other parts are all removed, if necessary, with the main unit Humidity treatment pieces together. In order to make the chamber reaches a predetermined condition, make sure the air inside the loop, the general use of insulated chamber. For double or reinforced insulation resistance should be not less than 7MΩ. It should be noted at the wet end of the process, and before measuring the insulation resistance, humidity test sample should not have significant changes. To achieve this, it is recommended when measuring insulation resistance of the sample will remain in the humidity cabinet, or in the neighboring reservation and with no ventilation There are similar box with moist conditions indoors. 12 Dielectric strength In accordance with the requirements of GB 19510.1-2009 Chapter 12 as well as the following requirements. GB 19510.2-2009/IEC 61347-2-1.2006 Pulse Test For starting device with a high voltage winding, using the following pulse test their eligibility test. the boot device in the amount of 110% Under the conditions given supply voltage without lights work until a pulse is 50 times, if necessary, disconnect or power. Note. high voltage winding means is mounted within the starter and start the lamp to produce the necessary voltage windings. During the test, the activation means. a) There should be a clear breakdown or sound discharge (electrical insulation failure under stress signs); b) There should be no arcing or flashover phenomenon; c) in the front or rear observed on the oscilloscope a pulse voltage waveform should not have folded or compressed phenomenon. For starting device without high voltage winding its eligibility by GB 19510.1-2009 a dielectric strength test to Chapter 12 test. Heat test 13 windings GB 19510.1-2009 not in accordance with the requirements of Chapter 13, independent testing requirements are still being studied. 14 Fault Status In accordance with the requirements of Chapter 14 GB 19510.1-2009 and the following additional requirements. Degree light line when the device is caused by the failure of current rise 14.1 should not start ballast excessive heat, which means that different Light lines on during the current does not exceed the maximum preheat current IEC 60081 and IEC 60901 specified, may be deemed to meet this Claim. 14.2 Independent starting devices should not exceed 15.2 requirements as abnormal temperature value. For preheating the lamp electrodes, when the actuating means When the short-circuit current and the preheating of the added value does not exceed 5% of the rated value, it may be deemed to meet this requirement. If and when preheating the lamp electrodes is at 110% of rated voltage condition, the current through the ballast circuit current exceeds 105% and Length 5min or more, you should start the mechanical breaker device jumper. When the mechanical breaker in line with GB/T corresponding conditions 14598.15-1998, then depending on their compliance with this requirement. Heating device 15 freestanding start Detached start device during normal operation and during abnormal operation should not be excessive heat. NOTE. Built-in starting device according to GB 7000.1 and lamps tested together. Compliance is checked by the tests of the following. Normal state is described below using the case of one or more working state. a) lamp during normal operation; b) rated current through the starter; c) actuating means is connected to the power supply, for example, occur during normal operation of the power supply voltage or the lamp voltage; d) b) and c) the existence of two states simultaneously. The stand-starting devices mounted in a test corner consists of three wooden fibreboard, which has dark wood fiber paint thickness 15mm ~ 25mm, and simulate two walls and ceiling assembly. The starting device is fixed on the ceiling, and as close as possible Walls, ceilings beyond some of the other starting means each side should be at least 250mm. The location of the test angle should be as far away from the chamber The five inner surfaces. The test shall be conducted in accordance with GB 19510.1-2009 5.5. GB 19510.2-2009/IEC 61347-2-1.2006 15.1 normal operation The starting device for normal use is connected to the applicable lamp. When the lamp is in steady state, by changing the voltage applied to the lamp current regulation to the ratings. Under that condition, the start Actuating means and lamp work until their temperature reaches a steady state. Temperature components values should not be prescribed 7000.1-2007 Table 12.1 and Table 12.2 over GB . Used ballast shall comply with relevant IEC standards, and is consistent with the type of boot device boot lamp. 15.2 abnormal operation The starting device for normal use is connected to the applicable lamp. To bring light to activate the cathode during the test, or use IEC 60081 IEC 60901 instead of the resistor and the lamp parameters specified in Table. You should also use the launcher applies light and has a maximum power rating Universal ballast tested. The flip-flop is not illuminated normal use connection. In the abnormal state, the flip-flop to operate at 110% of rated voltage conditions until the temperature reaches a stable state,......
