GB 19510.14-2009 English PDF

US$534.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.

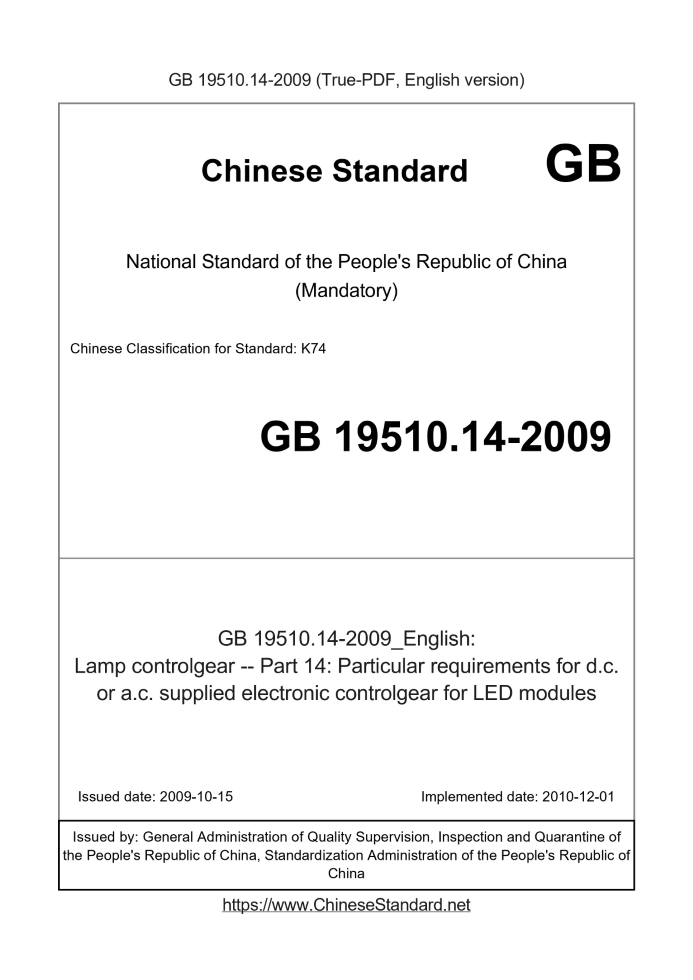

GB 19510.14-2009: Lamp controlgear -- Part 14: Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
Status: Valid
Standard IDUSDBUY PDFLead-DaysStandard Title (Description)Status
GB 19510.14-2009534 Add to Cart 4 days Lamp controlgear -- Part 14: Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules Valid

Similar standards

GB/T 9473   GB/T 24825   GB/T 32483.2   GB/T 19510.1   GB 19510.9   GB 19510.10

Basic data

Standard ID: GB 19510.14-2009 (GB19510.14-2009)
Description (Translated English): Lamp controlgear -- Part 14: Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
Sector / Industry: National Standard
Classification of Chinese Standard: K74
Classification of International Standard: 29.140.99
Word Count Estimation: 27,216
Date of Issue: 2009-10-15
Date of Implementation: 2010-12-01
Adopted Standard: IEC 61347-2-13-2006, IDT
Regulation (derived from): Announcement of Newly Approved National Standards No. 11 of 2009 (No. 151 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This Chinese standard specifies the safety requirements for use of 250 V DC power supply and below 1000V, 50Hz or 60Hz AC power LED modules with electronic devices Kontron specificmodule control device is designed to safety extra-low voltage or equivalent safety extra-low voltage or higher voltage for the LED module can provide a constant voltage or current control devices. Non-pure voltage and current source type control device is also included in this standard within. Applicable to this standard of the GB 19510. 1-2009 appendix and the use of the term"light"is also understood to include LED module. Fixed and as part of a stand-alone installation line safety extra-low voltage control device special requirements are given in the appendix ��. Performance requirements are given in IEC 62384. The insertion member as a light control apparatus can be regarded as built -in control unit, included in the standard supplementary lighting requirements.

GB 19510.14-2009: Lamp controlgear -- Part 14: Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules


---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Lamp controlgear.Part 14. Particular requirements for dcor acsupplied electronic controlgear for LED modules ICS 29.140.99 K74 National Standards of People's Republic of China GB 19510.14-2009/IEC 61347-2-13.2006 Lamp control Part 14. LED module or DC Particular requirements for the exchange of electronic control devices (IEC 61347-2-13.2006, IDT) Posted 2009-10-15 2010-12-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Preface Ⅰ Introduction Ⅱ 1 Scope 1 2 Normative references 1 3 Terms and definitions 2 4 3 General requirements 5 3 Test Description 6 Category 3 7 mark 3 8 measures to prevent accidental contact with live parts 4 Terminal 4 9 10 protection grounding device 4 11 Moisture resistance and insulation 4 12 Dielectric strength 4 Heat control means 13 winding test 5 14 Fault Status 5 15 transformer heating tests 5 16 abnormal state 5 17 Structure 6 18 creepage distances and clearances 6 19 Screws, current-carrying parts and connections 6 20 heat, fire and resistance to tracking 6 21 corrosion 6 Test Appendix A (normative) to determine whether a conductive part is a live part may cause electric shock 7 Particular requirements for Annex B (normative) thermally protected lamp control apparatus 7 Particular requirements 7 Annex C (normative) with thermal protector electronic control unit lamp Annex D (normative) heating test control apparatus for thermally protected lamp of claim 7 Annex F (normative) anti-convection air chamber 7 Derivation of Annex G (normative) values of pulse voltages 7 Annex H (normative) Test 8 Annex I (normative appendix) LED module independent safety extra-low voltage dc or ac electronic control device of the special supplement Requirements 8 References 22 GB 19510.14-2009/IEC 61347-2-13.2006

Foreword

All technical content in this section is mandatory. GB 19510 "Lamp control" is divided into 14 parts. --- Part 1. General requirements and safety requirements; --- Part 2. starting devices (other than glow starters) - Particular requirements; --- Part 3. Tungsten with AC/DC buck converter electronic Particular requirements; --- Part 4. Particular requirements for the exchange of electronic fluorescent ballasts; --- Part 5. Particular requirements for dc supplied electronic ballasts for general lighting of; --- Part 6. Particular requirements for dc public transport lighting ballasts; --- Part 7. DC electronic ballasts for aircraft lighting Particular requirements; --- Part 8. DC electronic ballasts for emergency lighting Particular requirements; --- Part 9. Particular requirements for ballasts for fluorescent lamps; --- Part 10. discharge lamps (excluding fluorescent lamps) with the special requirements of the ballast; --- Part 11. high frequency cold start tubular discharge lamps (neon) Specific requirements for electronic exchange and the frequency converter; --- Part 12. Particular requirements for lamps miscellaneous electronic circuits; --- Part 13. discharge lamps (excluding fluorescent lamps) or AC supplied electronic ballasts for special requirements; Part --- Article 14. LED module with special requirements for dc or ac electronic control device. This is Part 14 GB 19510's. This section should be used with GB 19510.1, which is after the corresponding provisions of GB 19510.1 supplement or modify the development and Into. This section identical with IEC 61347-2-13.2006 "- Part 2-13 control Lamp. LED module with AC or DC electronic Particular requirements for control devices "(in English). This section is equivalent translation IEC 61347-2-13.2006. For ease of use, this section made the following editorial changes. a) "IEC 61347-2-13" to "this Part"; b) Remove IEC 61347-2-13 preface, the introduction of revised IEC 61347-2-13; c) The international standard "(note .)" form brackets removed; d) as a decimal by decimal points instead of "and", "."; e) For other international standards referenced it has been adopted as the equivalent of a standard, this part of the country with reference to these national standards Or industry standards instead of the corresponding international standards, and the rest not tantamount to the adoption of a standard for the international standards in this section are Direct reference (see Part 2 of this chapter). This section of the Appendix A, Appendix B, Appendix C, Appendix D, Appendix E, Appendix F, Appendix G, Appendix H and Appendix I are normative appendix. This part is proposed by the China National Light Industry Council. This part of the National Electric lighting Standardization Technical Committee (SAC/TC224) centralized. This section drafted by. China Quality Certification Center, the National Electric Light Source Quality Supervision and Inspection Center (Shanghai), Guangzhou, China and Germany electronically controlled limited The company, Foshan City, China Electrical Lighting Co., Ltd., Guangdong TECHNOLOGY INC, Zhongshan Op lighting Co., Ltd., Tongxiang Shenghui Lighting Appliance Co., Ltd., Shunde District of Foshan City of the State Electric Company Limited, NVC Lighting Technology Co., Ltd. Nanjing Henderson Technology Co., 霍尼韦尔朗 electrical energy system technology (Guangdong) Co., Ltd. and Jiangxi were sent Optoelectronics Technology Co., Ltd. Drafters of this section. Liwei Quan, Amway, together Xing Ping, Yuan Qi, Malaysians, Yang Chi District, Wang Ping, Zhou Mingxing, Shen Kam-cheung, and Huang Shi, Xiong Fei, Zhou Ming, Fu Baocheng, Cheng Jingyuan, Cooper right, Cai dry strength, Li L, Huaqiao Sheng. This section first formulated. GB 19510.14-2009/IEC 61347-2-13.2006

Introduction

This section and the various parts constituting the GB 19510.2 ~ GB 19510.14 regulation when referring to GB 19510.1-2009 any provision of Given the terms of the test sequence and scope of the tests, and provides the necessary additional requirements. Composition GB 19510.2 ~ GB each section 19510.14 is independent, and do not refer to each other. If this section by "a section in accordance with GB 19510.1-2009 requires," this sentence to refer to the GB 19510.1-2009 Terms of the requirements, this means that in accordance with all the requirements of this provision, but obviously does not apply to GB 19510.2 ~ GB 19510.14 Except for content control apparatus of the specific type of lamp. GB 19510.14-2009/IEC 61347-2-13.2006 Lamp control Part 14. LED module or DC Particular requirements for the exchange of electronic control devices

1 Scope

This part of GB 19510 specifies the use of the following DC power supply 250V and 1000V or less, 50Hz or 60Hz AC power LED module with special safety requirements for electronic control device, the electronic control unit output frequency different from the mains frequency. Provisions of this section of LED module control device is designed at safety extra-low voltage or equivalent safety extra-low voltage or higher voltage Control means capable of providing a constant voltage or current to the LED module. Non-pure voltage and current sources type of control device is also included in the present Part of the site. Apply to this part of the GB 19510.1-2009 appendices and terminology used in "light" is also understood to include LED module. Fixed line and installed as part of the special requirements of an independent safety extra-low voltage control device is given in Appendix I. Performance requirements are given in IEC 62384. As a member of the plug-in lamp control device can be regarded as built-in control unit, included in the supplementary lighting standards requirements.

2 Normative references

The following documents contain provisions which, through reference in this Part of GB 19510, constitute provisions of this part. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. This part of GB 19510.1-2009 Chapter 2 of the normative references and normative references the following documents. GB 7000.6 Luminaires - Part 2. Particular requirements for Chapter 6. built-in transformers for filament lamps (GB 7000.6-2008, IEC 60598-2-6.1996, IDT) GB/T 7676 (all parts) Direct acting indicating analogue electrical measuring instruments and their accessories (GB/T 7676-1998, idt IEC 60051) GB/T 11021-2007 heat resistance, electrical insulation rating (IEC 60085.2004, IDT) GB/T 13539.2 low-voltage fuses - Part 2. Supplementary requirements for fuses for use by authorized persons (fuses for industrial use) (GB/T 13539.2-2008, IEC 60269-2. 1986, IDT) GB 13539.3-1999 Low-voltage fuses - Part 3. unskilled personnel Supplementary requirements for fuses (mainly used in home With fuses and similar applications) (idt IEC 60269-3. 1987) Part 1 GB 19510.1-2009 lamp control apparatus. General and safety requirements (IEC 61347-1.2007, IDT) IEC 60065. 1985 Audio, video and similar electronic apparatus - Safety requirements IEC 60083.2004 IEC member countries have standardized household and similar use plug and socket IEC 60127 (all parts) miniature fuse IEC 60269-2-1.2004 Low-voltage fuses - Part 2-1. fuses for use by authorized persons Supplementary requirements (industrial melting Breaker) Chapter Ⅰ ~ Ⅴ. Examples of types of standardized fuses Fuses for non-professional use (melt for household and similar purposes. IEC 60269-3-1.2004 Low-voltage fuses - Part 3 Breaker) Supplementary requirements of Chapter Ⅰ ~ Ⅳ IEC 60317-0-1.1997 winding wires - Part 0. General requirements - Section 1. Enamelled round copper wire GB 19510.14-2009/IEC 61347-2-13.2006 IEC 60384-14.2005 Fixed capacitors for use in electronic equipment; Part 14. Sectional specification. electromagnetic interference suppression and power supply connection Fixed capacitors IEC 60417-DB.20021) Equipment Graphical symbols 1) "DB" refers to IEC online database. IEC 60454 (all parts), a pressure-sensitive adhesive tape for electrical specifications IEC 60529. 1989 provided by the housing protection (IP Code) IEC 60598-1.2003 Luminaires - Part 1. General safety requirements and tests and IEC 60598-1 Amendment 1 (2006) IEC 60906 (all parts) for household and similar purposes IEC system of plugs and sockets IEC 60906-1. 1986 Household and similar purposes IEC plug and socket system Safety of information technology equipment 2005. IEC 60950-1 IEC 61558-1.1998 Safety of power transformers, power supply units and similar devices

3 Terms and Definitions

GB determined following terms and definitions 19510.1-2009 Chapter 3 apply to this section. 3.1 On the power module and one or more LED between the LED module rated voltage or current devices. This device can be made One or more separate components, and may have dimming, power factor correction, and radio interference suppression function. 3.2 It enables the control device is equipped with one or more stable parts of the LED module. 3.3 derconsideration) Its output voltage equivalent to a safety extra low voltage and enables one or more LED module is built-in or modular control device. Note. For the purposes of this section, in line with equivalent safety regulations 8.1 and 8.2 of the extra-low voltage control device can be regarded as providing safety extra-low voltage control means equivalent The protection against electric shock. 3.4 By IEC 61558-1.1998 under the safety isolating transformer to provide isolated power supply with safety extra-low voltage output Pressure control device. 3.5 Designed to control the device to a specific device or instrument-powered, it can be mounted on or is not installed in this device or instrument. NOTE. An example of the combined control device is emergency lighting units in the electronic control unit, the emergency lighting device, the electronic control unit and battery drive Moving one to one relation ballast distribution. 3.6 A control unit or a fixed installation is not easy to move the control unit from one location to another location. 3.7 Mounted within the housing and includes a means for controlling the power supply is connected monolithic plug. GB 19510.14-2009/IEC 61347-2-13.2006 3.8 At rated supply voltage, rated frequency and rated output power, the output voltage control device. 3.9 At rated supply voltage, rated frequency and rated output power, the output current control means. 3.10 led P-N junction contains a solid device, when subjected to a current excitation can emit light radiation. [GB/T 2900.65 in 845-04-40]. Note. This definition is independent of the presence of the housing and the terminal. 3.11 As a light source unit, in addition to one or more light emitting diodes (LED), but also may include other components, such as optical, electrical, mechanical Mechanical and electronic components. 3.12 The maximum voltage in any load condition, may occur between the constant current control device output terminal.

4 General requirements

GB 19510.1-2009 accordance with the requirements of Chapter 4 and the following additional requirements. --- Only safety extra-low voltage control device shall comply with Annex I requirements. This includes insulation resistance, dielectric strength, creepage housing Distance and clearance requirements. --- Non-pure voltage and current sources of the type of control device tested in accordance with the requirements of voltage and current sources, the control means with which The electrical characteristics according to their proximity to the requirements of the test.

5 Test Description

GB 19510.1-2009 accordance with the requirements of Chapter 5 and the following additional requirements. The following number of samples shall be submitted for test. --- For Test Chapter 6 - Chapter 12 and Chapter 15 ~ Chapter 21 of the regulations, submit a sample; --- For the first 14 to submit a test sample (if necessary, in consultation with the manufacturer to request additional samples). Category 6 GB 19510.1-2009 control means in accordance with Chapter 6 gives the method of installation as well as a method to classify. Protection against electric shock. --- Equivalent safety extra-low voltage or isolated control device (control device of this type can be used instead of having a double reinforced insulation Winding transformer; see GB 7000.6 (referring lights that contain LED modules)); --- Auto control means; --- Independent safety extra-low voltage control devices.

7 logo

7.1 Mandatory Signs In accordance with the requirements of 7.2 GB 19510.1-2009, the control device shall be clearly and durably mark the following mandatory signs, the overall control unit Except home. GB 19510.14-2009/IEC 61347-2-13.2006 --- GB 7.1 of a 19510.1-2009 a), b), c), d), e), f), k), l) and m) the terms and --- Constant type. rated output voltage; --- Constant current. rated output current and maximum output voltage; --- If applicable. control means applies only to declare the LED module. 7.2 Supplementary flag In addition to the mandatory signs, shall also apply to the following content is marked on the control unit, or on a manufacturer's catalog or similar instructions The book. --- GB 7.1 of the h 19510.1-2009), i) and j) the terms and --- On the control device is connected to the primary winding of a note; --- Equivalent on safety extra-low voltage control instructions.

8 measures to prevent accidental contact with live parts

Note. The output voltage limit safety extra-low voltage or equivalent safety extra-low voltage control means in accordance with IEC 60364-4-41. In accordance with the requirements of Chapter 10 GB 19510.1-2009 and the following additional requirements. 8.1 For the equivalent safety extra-low voltage control means should be used to make double or reinforced insulation accessible and live parts insulation. According to IEC 60065. 8.6 and 13.1 of the 1985 requirements. 8.2 safety extra-low voltage or equivalent safety extra-low voltage control means output line in the following cases can be equipped with exposed terminals. --- Maximum output voltage Rated output voltage or constant current control means constant pressure control device with a load of not more than 25V (effective value); --- No-load output voltage does not exceed 33V (rms), and the peak does not exceed the Sang 33 2V. Compliance is checked by the following test. control means reaches a steady state at rated supply voltage and rated frequency, measuring output Pressure. In the test with a load shall be mounted to the control device can generate a rated output at rated output voltage across the resistor. The control means having more than one rated supply voltage, this requirement applies to each of the rated supply voltage. Rated output voltage exceeds 25V control device should be fitted with insulated terminals. In situations where the safety extra-low voltage and safety extra low voltage output equivalent circuit and primary circuit connected to the capacitor, use symbols Co IEC 60384-14.2005 specified in Table 3. Table 2 Y1 or two capacitors in series and have the same parameters and Y2 capacitors. Each capacitor shall comply with the IEC 60065. 1985 requirements in 14.2. If you need additional element isolation transformer jumper, such as resistors, shall be in accordance with IEC 60065. 1985 Chapter 14 requirements.

9 Terminals

GB 19510.1-2009 accordance with Chapter 8 requirements. 10 protection grounding device In accordance with the requirements of GB 19510.1-2009 Chapter 9. 11 Moisture resistance and insulation In accordance with the requirements of GB 19510.1-2009 Chapter 11 as well as the following additional requirements. For the equivalent safety extra-low voltage control devices, insulating its input and output terminals should fully meet the requirements. For double or reinforced insulation resistance should be not less than 4MΩ. 12 Dielectric strength In accordance with the requirements of GB 19510.1-2009 Chapter 12 as well as the following additional requirements. Insulation conditions equivalent safety extra-low voltage control means within the isolation transformer windings shall be in accordance with IEC 60065. 1985 14.3.2 of the Claim. GB 19510.14-2009/IEC 61347-2-13.2006 13 controls the heat test apparatus windings GB 19510.1-2009 not in accordance with the requirements of Chapter 13. 14 Fault Status In accordance with the requirements of GB 19510.1-2009 Chapter 14 as well as the following additional requirements. Control device with the logo should be consistent with the provisions of Appendix C. 15 transformer heating tests Equivalent safety extra-low voltage control device isolation transformer windings shall be in accordance with IEC 60065. 1985 requirements into the 7.1 and 11.2 Line test. 15.1 normal operation Value shown in Column 2 of Table 3 1985. For normal operation, IEC 60065 should be used. 15.2 abnormal operation For this part of the Chapter 16 and Chapter 14 of the abnormal state of the fault status, shall adopt IEC 60065. 1985 Table 3 of the first Value of co......
