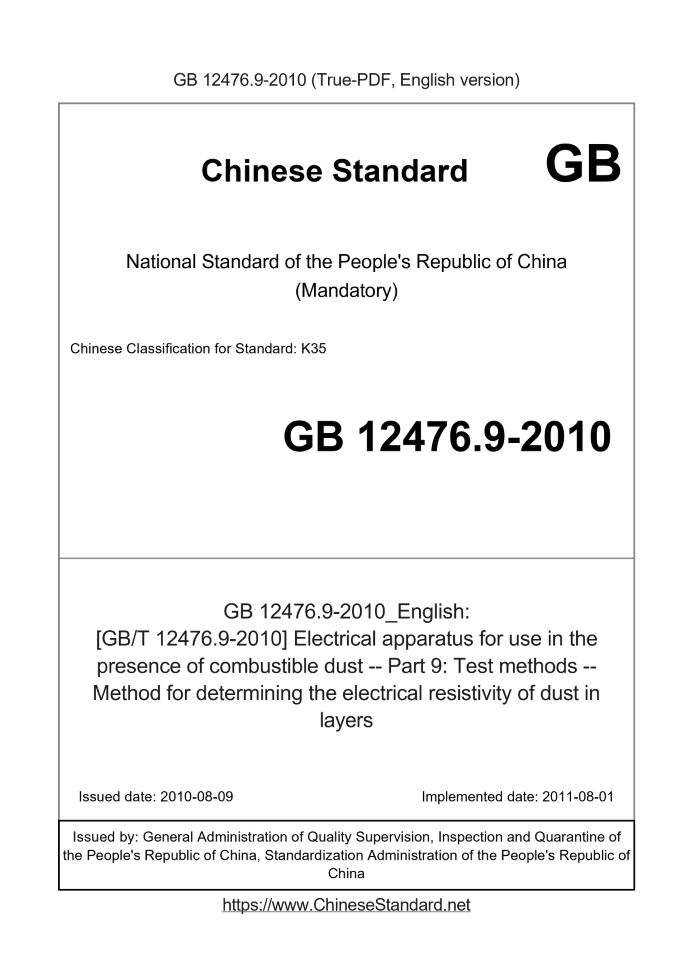

GB 12476.9-2010 English PDFUS$319.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB 12476.9-2010: [GB/T 12476.9-2010] Electrical apparatus for use in the presence of combustible dust -- Part 9: Test methods -- Method for determining the electrical resistivity of dust in layers Status: Obsolete
Basic dataStandard ID: GB 12476.9-2010 (GB12476.9-2010)Description (Translated English): [GB/T 12476.9-2010] Electrical apparatus for use in the presence of combustible dust -- Part 9: Test methods -- Method for determining the electrical resistivity of dust in layers Sector / Industry: National Standard Classification of Chinese Standard: K35 Classification of International Standard: 29.260.20 Word Count Estimation: 8,848 Date of Issue: 2010-08-09 Date of Implementation: 2011-08-01 Quoted Standard: GB/T 6005-2008; GB/T 6919 Adopted Standard: IEC 61241-2-2-1993, IDT Regulation (derived from): Announcement of Newly Approved National Standards No. 3, 2010 (No. 158 overall) Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This Chinese standard specifies the use of the DC voltage measuring dust layer resistivity test methods. This method is suitable for combustible dust atmospheres Electrical equipment design, manufacture, testing and use. This method does not apply to a recognized explosives or similar substances. GB 12476.9-2010: [GB/T 12476.9-2010] Electrical apparatus for use in the presence of combustible dust -- Part 9: Test methods -- Method for determining the electrical resistivity of dust in layers---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Electrical apparatus for use in the presence of combustible dust.Part 9. Test methods.Method for determining the electrical resistivity of dust in layers ICS 29.260.20 K35 National Standards of People's Republic of China Combustible dust Electrical Equipment Part 9. Test methods Determination of the dust layer resistivity Part 9. Testmethods- (IEC 61241-2-2.1993, IDT) Issued on. 2010-08-09 2011-08-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released Table of ContentsPreface Ⅰ Introduction Ⅱ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 Test apparatus 1 5 Test Sample 2 6 Program 2 7 Test Report 2 1 test electrode 3 2 a schematic diagram of the circuit of Figure 3ForewordAll technical content in this section is mandatory. GB 12476 "combustible dust electrical equipment" is divided into several parts. --- Part 1. General requirements --- Part 2. Selection and installation --- Part 3. combustible dusts exist or may exist Classification of hazardous areas --- Part 4. Intrinsic safety "iD" --- Part 5. Housing protection type "tD" --- Part 6. protective encapsulation "mD" --- Part 7. protective positive pressure "pD" --- Part 8. Test methods for determining the minimum ignition temperature of a dust --- Part 9. Test method for determination of the dust layer resistivity --- Part 10. Test methods for dust and air mixture Determination of minimum ignition energy Part of this section is GB 912 476, equivalent using the IEC 61241-2-2.1993 "combustible dust Electrical apparatus Part 2. Test methods - Section 2. Determination of the dust layer resistivity "(in English). This part of IEC 61241-2-2.1993 includes the following editorial changes. --- Remove the IEC 61241-2-2.1993 Foreword; --- Increase the national standard foreword. This part is proposed by the China Electrical Equipment Industrial Association. This part of the National explosion-proof electrical equipment Standardization Technical Committee (SAC/TC9) centralized. This part mainly drafted by. Explosion Protection Electric Institute. This part of the main participants. National explosion-proof electrical products for Quality Supervision and Inspection Center, Fushun Branch Coal Research Institute, a positive Explosion-proof electrical Limited. The main drafters of this section. Liu Heng Yun, Chen school, Chen Rui, Chang-recorded.IntroductionThis test method is applicable to determine the resistivity of dust layer. This test method is not applicable recognized Explosives, gunpowder, dynamite or a mixture or substance with similar characteristics in certain circumstances Thereof. If an explosion characteristics suspicion of danger, can put a small amount of dust above the surface of the heating apparatus described in GB 12476.8 On heating to 400 ℃ to obtain indicators. Explosive test does not always reflect the explosion characteristics of dust can cause "dangerous fault" situation. NOTE. should take preventive measures to protect the personal safety of test personnel, to prevent fires, explosions and/or impact of combustion, including hazard of toxic gases generated. This test method is applicable to the manufacture and use of combustible dust with electrical equipment. Combustible dust Electrical Equipment Part 9. Test methods Determination of the dust layer resistivity1 ScopeThis section provides test method using DC voltage measurement dust layer resistivity. The method is applicable to combustible dust Electrical Equipment design, manufacturing, testing and use. This method does not apply to recognized Explosives or the like.2 Normative referencesThe following documents contain provisions which, through reference in this Part of GB 12476, constitute provisions of this part. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 6005-2008 Test sieves - Metal wire cloth, perforated plate and electroformed sheet - basic mesh size (ISO 565. 1990, MOD) GB/T 6919 Air quality vocabulary (GB/T 6919-1986, eqvISO 4225. 1980)3 Terms and DefinitionsThis section uses the following terms and definitions. 3.1 Dust dust In the air can settle down on its own weight, but also sustainable solid fine particles suspended in the air for some time. Note. Includes dust particles and GB/T 6919 defined. 3.2 Conductive dust conductivedust Resistivity of 103Ω · m or less combustible dust. 3.3 Non-conductive dust non-conductivedust Resistivity greater than 103Ω · m of combustible dust. 3.4 Resistivity electricalresistivity Electrode unit area of dust exposure in units separated by a distance, the minimum resistance between the two electrodes measured. Note. In this section, the unit of measurement of resistivity is Ω · m.4 test deviceFigure 1 and Figure 2 shows the specific configuration of the test apparatus. Test electrode (see Fig. 1) is open architecture, it consists of two stainless steel rods, Nominal dimensions. length (W), 100mm; height (H), 10mm; width (B), 20mm ~ 40mm. These samples were placed in the thickness of the bars On the base of 5mm ~ 10mm, the nominal distance (L) 10mm apart. Note. It has been found glass or polytetrafluoroethylene (PTFE) is suitable as a base material. Two nominal height 10mm glass rod, through the end of the electrode is placed in order to maintain proper dust layer. It is suitable for measuring the resistivity of the circuit example shown in Figure 2. Containing a 10kΩ resistor for the maximum DC voltage of 2000V When the breakdown current is limited to a maximum 0.2A. Other circuits having the properties and precision may also be used. Current - voltage converter has 6 range, dealing with different values of the supply voltage and resistivity. Provide positive output voltage converter, All resistors accuracy 5%, 0.5W high stability carbon film resistors.5 test sampleSamples should be uniform, and can be collected on behalf of test dust. After the dust is collected, it should be stored in a sealed container, or pretreatment, or It should be used directly in the test, while the moisture content measured and recorded. Typically, dust samples were tested should pass a nominal size of 71μm aperture of woven wire mesh cloth or perforated plate square hole sieve test (Additional dimensions, see GB/T 6005-2008). If coarse dust particles must be tested, you can use the nominal maximum size of 500μm The test sieves, the test report shall indicate the screen size. Description of dust moisture content of the test sample in the test report, and explain the methods of measurement. Stated in the test report any significant changes in the properties of the dust, for example, when preparing a sample (for example, when the sieve dust) or moisture content caused by particles Changes in particle shape.6 Program6.1 First measurement Good with two empty glass rod measuring the resistance of the test electrode installation R0. 6.2 Resistance Measurement The test sample is measured run into a test electrode. Along the top of the stainless steel electrodes with a ruler rotating smooth, remove excess dust. Receive Set excess dust and weighed. Calculate the mass of the test electrode in the dust. Following by applying a DC voltage value, the measurement resistor Rs is full of dust test electrodes. 110,220,300,500,1000,1500,2000V Each voltage value is applied 10s at least, if the polarity obviously a longer time. When a voltage is applied to each value, use the same amount of dust test electrode samples were all tested. 6.3 Calculation resistivity Typically, R0 is greater than 10Rs, the dust resistivity calculated using the following formula. ρ = 0.001Rs [H × W/L] If R0 is less than 10Rs, dust resistivity calculated using the following formula. ρ = 0.001Rs × R0/[R0-Rs] × H × W/L among them. ρ --- resistivity, Ω · m; Resistance R0 --- empty test electrode, Ω; Rs --- full of dust resistance test electrode, Ω; --- The H electrode height, mm; W --- electrode length, mm; L --- the distance between the electrodes, mm. Each voltage is applied to calculate the resistivity values.7 Test reportThe test report shall include the measurement results, the name of the test dust, sources and types (if the name is not included), the particles of the test sample Size and moisture content, test date and test number. Test electrodes dust mass, when the ambient temperature of the test should also be recorded. The report should illustrate the determination of the resistivity of dust is carried out in accordance with this technical report. Figure 1 test electrode2 circuit schematic diagram......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB 12476.9-2010_English be delivered?Answer: Upon your order, we will start to translate GB 12476.9-2010_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB 12476.9-2010_English with my colleagues?Answer: Yes. The purchased PDF of GB 12476.9-2010_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
