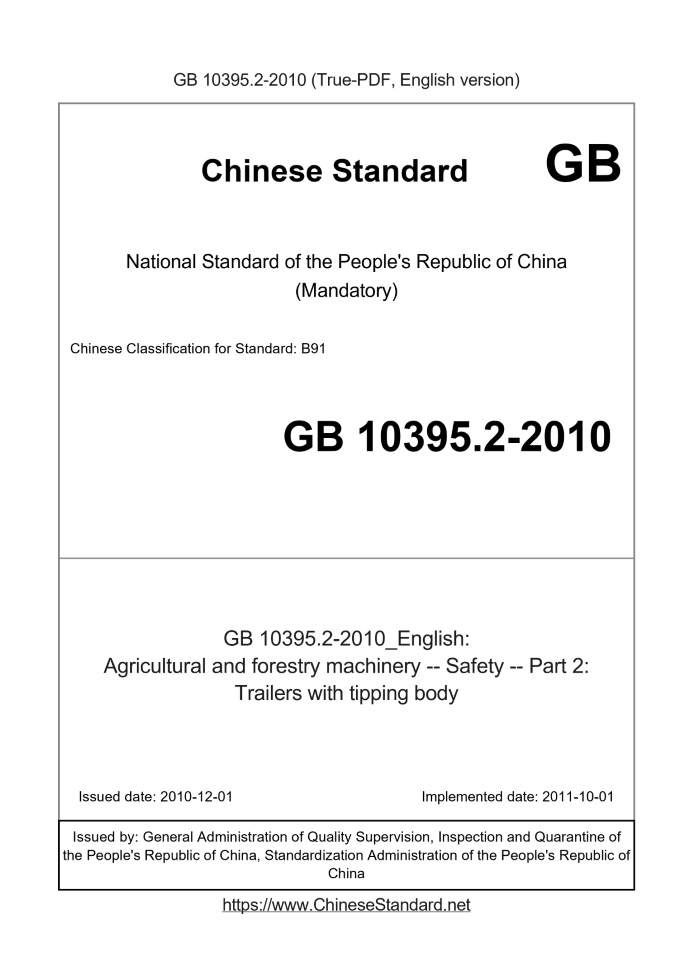

GB 10395.2-2010 English PDFUS$349.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB 10395.2-2010: Agricultural and forestry machinery -- Safety -- Part 2: Trailers with tipping body Status: Valid
Basic dataStandard ID: GB 10395.2-2010 (GB10395.2-2010)Description (Translated English): Agricultural and forestry machinery -- Safety -- Part 2: Trailers with tipping body Sector / Industry: National Standard Classification of Chinese Standard: B91 Classification of International Standard: 65.060.99 Word Count Estimation: 15,121 Date of Issue: 2010-12-01 Date of Implementation: 2011-10-01 Quoted Standard: GB 10395.1-2009; GB/T 15706.1; GB/T 15706.2-2007; GB/T 20338; GB 23821-2009; GB/T 25399 Adopted Standard: EN 1853-1999, MOD Regulation (derived from): Announcement of Newly Approved National Standards No. 9, 2010 (No. 164 overall) Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This Chinese standard specifies design, manufacturing, safety requirements, safe operation and determination method for agricultural transport tractor and agricultural trailer. The manufacturer shall provide the information type. This standard applies to dump trailers, does not apply to carriage removable trailer. This standard does not take into account of environmental factors. GB 10395.2-2010: Agricultural and forestry machinery -- Safety -- Part 2: Trailers with tipping body---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Agricultural and forestry machinery.Safety.Part 2. Trailers with tipping body ICS 65.060.99 B91 National Standards of People's Republic of China Agriculture and forestry machinery - Safety - Part 2. Dump Trailer Part 2. Trailerswithtippingbody Issued on. 2010-12-01 2011-10-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released ForewordAll technical content in this section is mandatory. GB 10395 "Forestry Machinery Safety" is divided into. --- Part 1. General; --- Part 2. Dump trailer; --- Part 3. manure applicator; --- Part 4. Forest winch; --- Part 5. driven garden equipment; --- Part 6. Equipment for crop protection; --- Part 7. Combine harvesters, forage and cotton harvesters; --- Part 8. Irrigation pumps and crew; --- Part 9. sowing, planting and fertilizing machinery; --- Part 10. hand (micro) tiller; --- Part 11. Power lawn mower; --- Part 12. Portable powered hedge trimmers; --- Part 13. - behind and hand-held lawn trimmers and lawn edge trimmers; --- Part 14. Powered Shredders and shredding machine; --- Part 15. power with rigid cutting means trimmer; --- Part 16. Potato harvester; --- Part 17. Beet harvesters; --- Part 18. traction winch sprinkler hose; --- 19 parts. center pivot irrigation machines, and translation; --- Part 20. pickup balers; --- Part 21. Power ted machines and rakes; --- Part 22. pre-loading device; --- Part 23. Fixed round silo unloader; --- Part 24. Liquid manure fertilization car; This section is GB 10395 "Agricultural and forestry machinery safety" Part 2, modify the use EN1853.1999 "Agricultural Machinery Dump Trailer Security "(in English). This section according to EN1853.1999 redrafted with EN1853.1999 is a technical difference. --- Cited international standards or European standards our standards, but our standard is not equivalent to international standards or European standards. For ease of use, this section of the EN1853.1999 made the following editorial changes. a) "The European Standard" to "this Part"; b) Remove EN1853.1999 Foreword and Introduction; c) According to China's request to modify the EN1853.1999 range; d) instead of as a decimal by decimal comma ",". ","; e) Remove the EN1853.1999 Annex ZA "of the standard and the European Directive EC relations." This part of the Annex A, Annex B normative appendix. This part is proposed by China Machinery Industry Federation. This part of the National Standardization Technical Committee (SAC/TC201) Agricultural machinery centralized. This section drafted by. Chinese Academy of Agricultural Mechanization Sciences, farm vehicles, industrial machinery, Development Research Center. The main drafters of this section. Zhang Xian wins, Zhaoxing Kui, Huang was Jin, Zhang Qi. Agriculture and forestry machinery - Safety - Part 2. Dump Trailer1 ScopeGB 10395 of the provisions of this part of the design and manufacturing for agricultural transport operations, by a tractor or self-propelled agricultural machinery traction dump Type farm trailer, safety requirements and judgment, further specifies the type of security provided by the manufacturer should be operational information semitrailer. Note. This section does not include brake requirements. This section applies to dump trailer, does not apply to the carriage detachable trailer. This section does not consider environmental factors.2 Normative referencesThe following documents contain provisions which, through reference in this Part of GB 10395, constitute provisions of this part. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB 10395.1-2009 agriculture and forestry machinery - Safety - Part 1. General (ISO 4254-1.2008, MOD) GB/T 15706.1 Safety of machinery - Basic concepts, general principles for design - Part 1. Basic terminology and methods (GB/T 15706.1- 2007, ISO 12100-1.2003, IDT) GB/T 15706.2-2007 Safety of machinery - Basic concepts, general principles for design - Part 2. Technical principles (ISO 12100-2. 2003, IDT) GB/T 20338 Agricultural vehicles - Mechanical connections on towing vehicle hitch rings Size (GB/T 20338-2006, ISO 20019.2001, IDT) GB 23821-2009 Safety of machinery - Safety distances to prevent danger zones being reached on the lower limbs (ISO 13857.2008, IDT) GB/T 25399 Tractors and machinery for agriculture and forestry hydraulic brake circuit connector (GB/T 25399-2010, ISO 5676. 1983, MOD)3 Terms and DefinitionsGB/T 15706.1 and GB/T 15706.2 well established in the following terms and definitions apply to this section. NOTE. The following graphic examples given in this section is a schematic view of the trailer function, not part of the required safety measures. 3.1 Trailer balancedtrailer No vertical load transmitted to the trailer towing vehicle, shown in Figure 1. 1 Trailer example of FIG. 3.2 Semi-trailer semi-mountedtrailer Portion of the vertical load is transmitted to the trailer towing vehicle, shown in Figure 2. 2 trailer example of FIG. 3.3 High dump trailer high-tiptrailer There are tipping trailer lift stent system, shown in Figure 3 on the chassis. 1 --- dump bracket. Example 3 High Dump Trailer 3.4 Carriage plate sideboard It can be hinged to the trailer compartment floor, fixed or movable baffle constituted by the load of hoardings. 3.5 Dump tipping The bearing of the load in the trailer by the tilt-car unloading operations. Note. The tipping sideways or backward. 4 Safety requirements and/or safety measures 4.1 General Requirements When designing dump trailers, danger not covered in this section should follow the GB/T 15706.1 principles and GB/T 15706.2 requirements. Subject to the provisions of this section, the dump trailer shall comply with GB 10395.1 and GB 23821-2009 Table 1, Table 3, Table 4 or 6 Provisions. 4.2 Stability 4.2.1 unmounted state Trailer Stability Trailer stability shall comply with the requirements specified in 6.2 GB 10395.1-2009. When the trailer parked in the horizontal plane, specified by the manufacturer's maximum permissible load is evenly loaded, in addition to any other wheel supporting means shall be provided Ground pressure limit maximum bearing surface of 400kPa. Trailer shall ensure that in an unmounted state does not move (for example. using a wedge mode). Should the trailer in the parking state, the maximum allowed load Xu load, positive forward direction toward the steering shaft, and parked on a slope of 8.5 ° solid road check this requirement. The test shall be in the trailer with the most Without destabilizing position parked on the ramp of the situation, the position should be recorded. During the tests, the trailer should not be moved. To prevent the use of wedge unmounted mobile trailer, the wedge should be located on the trailer is located. 4.2.2 Lifting dump stability state When the dump body will give rise to the highest car dumping position, the trailer on a slope gradient of 5 ° should be able to remain stable. This requirement shall be verified by test methods listed in Appendix B. These tests only apply to rearward tipping trailer. 4.2.3 Traction loads on the hook Car without lifting position, load trailer parked at a solid level surface mount points measured noseweight down at least Unladen trailer 3% by weight, all dumping position of at least 500N. 4.3 escalator Top compartment plate ground clearance greater than 1.5m, shall be specified in 10395.1-2009 GB 4.6 installed outside escalators. When removable Unloading carriage board is not installed, and the compartment floor surface 1m above the ground, you should install a similar escalator. At the top of the escalator should be set to one or more armrest. If the trailer carriage plate relative to the height of the bottom surface is greater than 900mm, should be required to install 4.6 GB 10395.1-2009 in Within the escalator. Within the escalator should be outside escalators installed in the same car at the plate, and the outer escalator opposite. Note. The right side of the escalator should be installed as the forward direction of the trailer. 4.4 dump 4.4.1 In the driving position should always be able to operate the dump operating mechanism (lifting or lowering). If the subsidiary operating mechanism is equipped with the trailer, the control mechanism should continue these manipulative, and should be consistent with GB 10395.1-2009 6.1 requirements. 4.4.2 hydraulic dump system and hydraulic brake systems should not be controlled by the same hydraulic line. 4.4.3 trailer in the structure should be limited to no more than the maximum allowed car dumping position. 4.5 coupling 4.5.1 mechanical coupling Install low hooks, such as hook trailer power output shaft located below the traction ring shall comply with GB/T 20338 of. 4.5.2 hydraulic, pneumatic and electrical connections Tractor trailer coupling servo brake system hydraulic brake system should be used in line with GB/T 25399-2010 provisions connector. The joint should only be installed in the brake circuit. 4.6 Additional requirements for high dump trailers In the driving position should always be able to operate the dump cradle lifting or lowering control mechanism. If the subsidiary operating mechanism is equipped with the trailer, the control mechanism should continue these manipulative, and should be consistent with GB 10395.1-2009 6.1 requirements. 4.7 Other Requirements 4.7.1 trailer should be equipped in line with the 4.8 GB 10395.1-2009 requirements hinged on trailer mechanical support mechanism, in order to protect During the raising operation can be securely fixed to the carriage lifting position. 4.7.2 carriage plate and the discharge door locking system operator should be placed outside the scope of the wobble board or discharge compartment door can be operated Location. 5 Safety requirements determination and/or security measures For a predetermined size it should be determined by measurement. The control mechanism should function tests and by measuring the position determination.6 Use Information6.1 User's Guide Owner's manual should provide detailed instructions and information trailer all maintenance, safe use. Instructions should be consistent GB/T in 6.5 and 8.1 GB 10395.1-2009 provisions 15706.2-2007. Instructions for use should be particularly highlighted the following points. a) avoid exceeding the maximum load carrying material; b) the car can only be dumped trailer or lifting in the following cases. --- Trailer attached to the tractor; --- Stationary unit parked on solid flat ground; --- Unloading area unattended; --- Without lateral winds. c) dumping operation attention to dangerous overhead power lines; d) a car dump trailers and mobile lifting state will be dangerous; e) at the time of opening and closing the discharge door careful to avoid squeeze fingers and hands; f) In the trailer hook disengagement process, applying upward or downward force on the traction ring would be dangerous; g) the vertical load transmitted to the semi-trailer towing vehicle will impact on the towing vehicle drivability; h) the need to lift the car for repair or maintenance, the car should be unloaded and reliable mechanical support locking mechanism to prevent accidental landing; Relevant characteristic parameter i) the original tire (bearing load, speed, size and inflation pressure); j) with a maximum design speed; Before k) moving the trailer, make sure that the brake system is connected and function properly; Power l) in good condition with the use of the shield drive shafts; m) only in the trailer at the time the steering shaft to the front position to the parking and dumping; n) when using automatic equipment hitch of the tractor, shall determine the appropriate mount operation has been completed; o) when tipping trailer, tipping bracket lifting/lowering the vehicle by the traction control hydraulic valve, the hydraulic valve operating mechanism should be held Continued manipulative; p) should always be in the driving position control dump trailers, tipping bracket lifting/lowering; q) when the trailer parking brake is not installed, you should use the wedge; r) with the tractor pulling a trailer supporting the device type. 6.2 mark Flag shall comply with GB/T 15706.2-2007 provisions of 6.4 and 8.2, 8.3 in the GB 10395.1-2009. All trailers include at least the following information shall be provided in clear and durable markings. --- Manufacturer's name and address; ---Year of manufacture; --- Product name or type of the model; --- Serial number, if any; --- On the trailer, loaded trailer the maximum permissible load drawbar load; --- Power input connection rated speed and direction of rotation (indicated by the arrows), if there is; --- Tire inflation pressure. In addition, you should also set the following safety signs. --- In front trailer portion is provided in the non-mobile trailer climbing safety signs; --- Automatic unloading door can cause compression or shearing hazard safety signs; --- Unless the mechanical support structure, is prohibited in work safety signs lift compartment below.Appendix A(Normative) Dangerous List Table A.1 gives the list of dangerous based on GB/T 15706.1 and GB/T 15706.2 of. Table A.2 gives the list of dangerous movement generated by the machine. Table A.3 gives the list of dangerous loads generated by the lift. These tables have different meanings set forth in the last column (solutions given in this section) are. --- "Not relevant". the hazard is not a significant risk of the machine; --- "Given". the hazard is significant risk. Specify the terms given solution is determined according to GB/T 15706 General Security Disposal of hazardous guide; it means. ● eliminate or reduce the risk as much as possible through the design; ● take protective measures; ● provide information on residual risks. --- "Section and a". The major danger is the risk of multiple components of the machine. Solution The indicated terms given in disposable Wherein a portion of the risk of parts. The remaining parts of the hazard is a significant risk that the disposal will have to take the risk of Other solutions in this section does not give; --- "Not given". the hazard is significant risk to the machine, but in this part of the drafting process is not considered. Marked "not given" or "part and a" dangerous requirement specified in GB 10395.1, these dangers in Tables A.1 and A.2 last A bar with an asterisk (*) mark. Table A.1 List of Dangerous Danger Relevant provisions GB/T 15706.1 GB/T 15706.2 This section gives Solutions A.1 Mechanical hazards As indicated by the following elements of the workpiece or machine parts caused by. ---shape; ---relative position; --- Quality and stability (potential energy of each element); --- Quality and speed (kinetic energy of each element); --- Insufficient mechanical strength; --- Accumulation of potential energy caused by the following reasons. ● an elastic member (spring); ● liquid or gas under pressure; ● Vacuum 4.2 - - A.1.1 Risk of crushing 4.2 4.2.1,4.2.2 In 4.4.1,4.6, 4.7.1,6.1 given A.1.2 cut dangerous 4.2.1,4.2.2 4.2,5.2.1 irrelevant A.1.3 cutting or severing hazard 4.2.1,4.2.2 4.2 In the 4.7.2,6.1,6.2 Given A.1.4 wound danger 4.2.1,4.2.2 - is given in the 4.3,6.1 Table A.1 (CONTINUED) Danger Relevant provisions GB/T 15706.1 GB/T 15706.2 This section gives Solutions A.1.5 risk of introduction or involvement 4.2.1 4.14,5.2.1, 5.5.3 irrelevant A.1.6 Impact hazard 4.2.1 - 4.7.2 are given in the A.1.7 stab or stabbed hazard 4.2.1 - Irrelevant A.1.8 friction or abrasion hazard 4.2.1 4.3b) not relevant A.1.9 high pressure fluid ejection hazard 4.2.1 - not shown * A.1.10 (machinery and workpiece/workpiece) member projection hazard 4.2.2 4.10 uncorrelated A.1.11 (mechanical or machine parts) 4.6 4.2.2 Unstable In the 4.2,4.4.3,6.1 Section gives * A.1.12 Slipping and mechanical related (due to the machine's characteristics) of dumping and falls Danger 4.10 5.5.6 In the 4.3,6.1,6.2 Given A.2 Electrical Hazard For example caused by the following factors. 4.3 4.9 - A.2.1 4.3 electrical contact (direct or indirect) - are given in 6.1 A.2.2 electrostatic phenomena 4.3 - Irrelevant A.2.3 Thermal radiation or other phenomena such as short-circuit and overload caused Molten particles and chemical effects injection 4.3 - Irrelevant A.2.4 external influences not related electrical equipment 4.3 4.4 A.3 Thermal hazards resulting in. 4.4 4.8.4 - A.3.1 By flames or explosions one can burn in contact with the heat source and the radiation scald 4.4 - Irrelevant A.3.2 due to heat or cold working environment on the health hazards of 4.4 - Irrelevant A.4 Dangerous due to noise resulting in. 4.5 4.8.4 - A.4.1 Hearing loss (deafness), other physiological disorders (such as loss of balance, loss of To perception) 4.5 - Irrelevant A.4.2 interference language communication, auditory signals, etc. 4.5 - Irrelevant A.5 Hazard generated by the vibration (Resulting in a variety of neurological and vascular disorders) 4.6 4.8.4 irrelevant A.6 Produced by the radiation danger Especially caused by the following factors. 4.7 - - A.6.1 arc - - irrelevant A.6.2 Laser - - irrelevant Table A.1 (CONTINUED) Danger Relevant provisions GB/T 15706.1 GB/T 15706.2 This section gives Solutions A.6.3 ion source radiation 4.7 - Irrelevant A.6.4 machines use high frequency electromagnetic field - - irrelevant A.7 By the machining, materials and substances used or produced by discharge Danger E.g. 4.8 4.3b) - A.7.1 Since the liquid contact or inhalation of harmful gases, fumes and dust guide Danger caused 4.8 - Irrelevant A.7.2 fire or explosion hazard 4.8 - Irrelevant A.7.3 biological and microbiological (germs or bacteria) hazardous 4.8 - Irrelevant A.8 By ignoring the risk of machine design, ergonomic principles generated (Mechanical and human features and capabilities of uncoordinated) As caused by the following factors. 4.9 4.8 - A.8.1 unhealthy posture or excessive force 4.9 4.8.2,4.8.5 irrelevant A.8.2 inappropriate to consider a human arm or legs structure given in 4.3 4.9 4.8.3 A.8.3 ignore the use of personal protective equipment 5.5 - Irrelevant A.8.4 inappropriate Face Lighting - 4.8.6 irrelevant A.8.5 spirit too much tension or lack of preparation, etc. 4.9 4.8.5 irrelevant A.8.6 Human error is given in 6.1, 6.2, 4.9 4.8 in A.9 dangers combination 4.11 - Irrelevant A.10 As energy failure, damage or other mechanical parts malfunction generation danger E.g. 5.3b) 4 - A.10.1 energy (energy and/or control circuit) 3.30 4.11.1 Failure is not given A.10.2 mechanical parts or fluids unexpected projectile - 4.10,5 not given * A.10.3 control system failure, malfunction (unexpected start, accidental overcurrent) 3.29,3.30, 3.31 4.11.1 irrelevant A.10.4 assembly error - - not shown * A.10.5 topples over, an unexpected loss of stability 4.2.2 4.6 In part 4.2,4.4.3 Given A.11 Dangerous d......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB 10395.2-2010_English be delivered?Answer: Upon your order, we will start to translate GB 10395.2-2010_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB 10395.2-2010_English with my colleagues?Answer: Yes. The purchased PDF of GB 10395.2-2010_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
