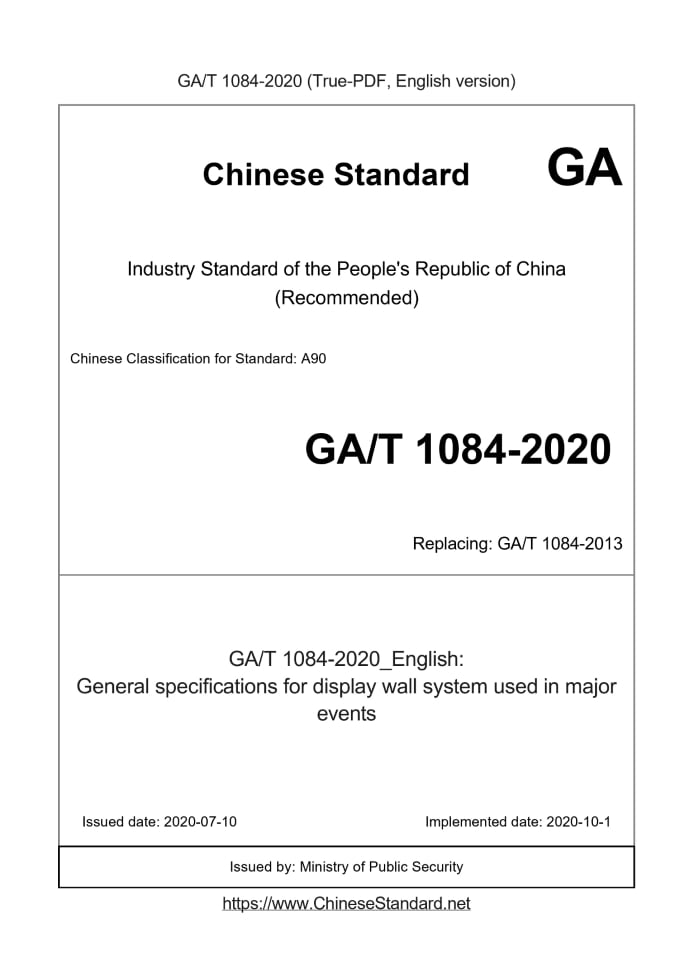

GA/T 1084-2020: General specifications for display wall system used in major events
Status: Valid

GA/T 1084: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GA/T 1084-2020	1149	Add to Cart	7 days	General specifications for display wall system used in major events	Valid
GA/T 1084-2013	RFQ	ASK	8 days	General specifications for color LCD monitor used in major events	Obsolete

Similar standards

GB/T 37230 GA/T 1059 GB 13954 GA/T 1091 GA/T 1092 GA/T 1090

Basic data

Standard ID: GA/T 1084-2020 (GA/T1084-2020)
Description (Translated English): General specifications for display wall system used in major events
Sector / Industry: Public Security (Police) Industry Standard (Recommended)
Classification of Chinese Standard: A90
Classification of International Standard: 13.310
Word Count Estimation: 50,528
Date of Issue: 2020-07-10
Date of Implementation: 2020-10-1
Issuing agency(ies): Ministry of Public Security

GA/T 1084-2020: General specifications for display wall system used in major events

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
General specifications for display wall system used in major events ICS 13.310 A90 Public Safety Industry Standards of the People's Republic of China Replace GA/T 1084-2013 General specification for splicing display system for large-scale events 2020-07-10 released 2020-10-01 implementation Issued by the Ministry of Public Security of the People's Republic of China

Foreword Ⅴ Introduction Ⅶ 1 Scope 1 2 Normative references 1 3 Terms, definitions and abbreviations 1 3.1 Terms and definitions 1 3.2 Abbreviations 2 4 System composition 2 4.1 Composition of splicing display system 2 4.2 Splicing display wall composition 3 4.3 Composition of display control subsystem 3 5 Technical requirements 3 5.1 General requirements 3 5.2 Basic functions 5 5.3 Interface requirements 8 5.4 Performance requirements 8 5.5 Mosaic display wall installation requirements 11 5.6 Electromagnetic compatibility requirements 11 5.7 Security requirements 12 5.8 Environmental adaptability 12 5.9 Stability requirements 14 6 Test method 14 6.1 Test conditions 14 6.2 General requirements test 15 6.3 Basic function test 16 6.4 Interface test 18 6.5 Performance test 18 6.6 Mosaic display wall installation test 30 6.7 Electromagnetic compatibility test 30 6.8 Security Test 30 6.9 Environmental adaptability test 31 6.10 Stability test 33 7 Inspection rules 33 8 Marking, packaging, transportation and storage 34 8.1 Sign 34 8.2 Packaging 34 8.3 Transportation 35 8.4 Storage 35 Appendix A (Normative Appendix) Appearance and structure failure criteria 36 Appendix B (Normative Appendix) Test Signal 37 Figure 1 Splicing display system composition 3 Figure 2 Schematic diagram of brightness test point 18 Figure 3 Schematic diagram of black and white window signal test points 19 Figure 4 Rated observation position for viewing angle test 20 Figure 5 Horizontal viewing angle test 21 Figure 6 Vertical viewing angle test 21 Figure 7 Schematic diagram of diagonal test of splicing display wall 27 Figure B.1 Standard Definition Composite Test Figure 37 Figure B.2 High-resolution composite test image 38 Figure B.3 Color signal R, G, B 38 Figure B.4 Color bar signal Y, PB, PR 39 Figure B.5 Full white field signal 39 Figure B.6 Black and white window signal 40 Figure B.7 White window signal 40 Figure B.8 Square and circle combined signal 40 Table 1 Supports input video signal image format 4 Table 2 Display format that supports computer input 5 Table 3 Basic functions of splicing display system 5 Table 4 Interface requirements 8 Table 5 Brightness requirements 8 Table 6 Contrast requirements 9 Table 7 Viewing angle requirements 9 Table 8 Brightness uniformity requirements 9 Table 9 Pixel defect requirements 9 Table 10 Definition requirements 9 Table 11 White balance error range 10 Table 12 Splicing display wall performance requirements 10 Table 13 Climate test 13 Table 14 Drop test 13 Table 15 Vibration test 14 Table 16 Sampling and number 33 Table 17 Qualified Judgment Criteria 34 Table A.1 Appearance and structure failure criteria 36

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GA/T 1084-2013 "General Specification for LCD Color Monitors for Large-scale Events", and is consistent with GA/T 1084-2013 In addition to editorial changes, the main technical changes are as follows. ---Modified the standard name to "General Specification for Splicing Display System for Large-scale Events"; ---Deleted LCD color monitor, pixels, color gamut coverage, reproduction rate, image browsing interval, 3D noise reduction terms and definitions (see Chapter 3 of the.2013 edition); ---Added display unit terms and definitions (see 3.1.1); ---Added LCD display unit terms and definitions (see 3.1.2); ---Added LED display unit terms and definitions (see 3.1.3); ---Added DLP display unit terms and definitions (see 3.1.4); ---Modified the terms and definitions of pixel defects as defective pixel terms and definitions (see 3.1.6, 3.5 in the.2013 edition); ---Added the terms and definitions of out-of-control pixels (see 3.1.7); --- Added the definition of flatness terms (see 3.1.9); --- Added abbreviations for DLP, LED, and DP (see 3.2); --- Deleted abbreviations of AQL, DVI, HDMI, MTBF, RCA, USB, VESA3D (see Chapter 4 of the.2013 edition); --- Added system composition (see Chapter 4); ---Modified the normal use conditions (see 5.1.1, 5.1.1 of the.2013 edition); --- Modify the input image format of Table 1 (see Table 1, Table 1 of the.2013 edition); ---Modified the display format of Table 2 (see Table 2, Table 2 of the.2013 edition); ---Modified the basic functions, from the original LCD splicing display system, expanded the functional requirements of DLP, LED splicing display system (See 5.2, 5.2 of the.2013 edition); ---Modified the interface requirements (see 5.3, 5.3 in the.2013 edition); ---Modified the performance requirements, from the original LCD, expanded the performance requirements of DLP, LED and its splicing display wall (see 5.4,.2013 5.4 of the year edition); ---Modified the interference characteristics and replaced it with the current standard GB/T 9254-2008 (see 5.6.1, 5.5.1 of the.2013 edition); ---Modified the safety requirements (see 5.7, 5.6 in the.2013 edition); ---Modified the climate test (see 5.8.1, 5.7.1 in the.2013 edition); ---Modified the vibration test (see 5.8.2.2, 5.7.2.2 of the.2013 edition); ---Modified the enclosure protection requirements (see 5.8.2.3, 5.7.2.3 of the.2013 edition); ---Reliability requirements have been deleted (see 5.8 in the.2013 edition); ---Deleted the unpacking inspection requirements (see 5.9 in the.2013 edition); ---Added stability requirements (see 5.9); ---Deleted process assembly inspection requirements (see 5.10 of the.2013 edition); ---Modified the test site, and the stray illuminance was changed to less than or equal to 0.1lx (see 6.1.4, 6.1.4 in the.2013 edition); --- Deleted the pylon installation structure requirements (see 6.2.1.4 of the.2013 edition); --- Deleted the base installation structure requirements (see 6.2.1.5 of the.2013 edition); --- Deleted 3D noise reduction function, source browsing function, intelligent heat dissipation function, remote control operation function, information prompt function, working status Display function, sound setting function, key lock function, redisplay rate adjustment function (see.2013 version 6.3); ---Added basic function test, including. brightness adjustment function, color adjustment function, seam compensation function, support computer display function Function, signal synchronization control function, signal cascade extension function, window zoom function, window overlay function, display signal roaming the whole wall Function, signal preview function, signal echo function, remote monitoring function, fault alarm detection function (see 6.3,.2013 edition 6.3); ---Modified the interface test (see 6.4 in the.2013 edition); ---Modified the contrast (see 6.5.2, 6.5.2 of the.2013 edition); ---The brightness uniformity is modified (see 6.5.4, 6.5.4 in the.2013 edition); ---Modified pixel defects as defective pixels and pixel out-of-control rate (see 6.5.5, 6.5.5 in the.2013 edition); --- Deleted the redisplay rate (see 6.5.7 in the.2013 version); --- Deleted the color gamut coverage (see 6.5.8 in the.2013 version); --- Deleted the relationship between chromaticity and viewing angle (see 6.5.12 in the.2013 edition); --- Deleted the infrared remote control performance requirements (see 6.5.13 in the.2013 edition); ---Added the display mode switching time (see 6.5.19); --- Increased system synchronization (see 6.5.20); --- Increased system delay (see 6.5.21); --- Deleted the coincidence error of the images displayed on the mosaic display wall (see 6.6.10 in the.2013 version); ---Modified the interference characteristic to the radio disturbance test (see 6.7.1, 6.7.1 of the.2013 edition); ---Modified the security test (see 6.8, 6.8 in the.2013 edition); --- Added stability test (see 6.10); ---Reliability test (6.10 in the.2013 version) has been deleted; ---Deleted the unpacking inspection (6.11 in the.2013 version); ---Deleted process assembly inspection (6.12 in the.2013 edition); ---Modified the inspection rules (see Chapter 7, Chapter 7 of the.2013 edition); --- Modified the logo (see 8.1, 8.1 in the.2013 edition). Please note that some of the contents of this document may involve patents. The issuing agency of this document is not responsible for identifying these patents. This standard was proposed by the Public Security Administration of the Ministry of Public Security. This standard is under the jurisdiction of the Ministry of Public Security's Standardization Technical Committee for Social and Public Security Applications. Drafting organizations of this standard. The First Research Institute of the Ministry of Public Security, TCL New Technology (Huizhou) Co., Ltd., Shenzhen Yulong Digital Technology Co., Ltd., Hangzhou Hikvision Digital Technology Co., Ltd., Vtron Group Co., Ltd., Shenzhen Lianjian Optoelectronics Co., Ltd., Shenzhen Unilumin Technology Co., Ltd., Qingdao Hisense Commercial Display Co., Ltd., Leyard Optoelectronics Co., Ltd. The main drafters of this standard. Zhang Jiguo, Wang Jing, Du Wei, Niu Hailong, Cao Liang, Lu Yuhua, Liu Weijian, Ling Jie, Xu Lu, Wang Qian, Zhao Pinglin, Chen Wei, Wang Yingqian, Qu Bin, Liu Li. The previous versions of the standard replaced by this standard are as follows. ---GA/T 1084-2013.

Introduction

As a visual carrier of signal information, the splicing display system is used for on-site broadcast/live broadcast, emergency dispatch, on-site command, The control command center or display terminal for security monitoring and other tasks is developed in terms of ensuring the safety of large-scale events and improving the efficiency of dispatching and commanding. Play an irreplaceable role. On the one hand, according to the application requirements of different scenarios, it is widely used in the control command center and display terminal of large-scale activities. DLP and LED splicing display systems are used all over; on the other hand, with the rapid development of informatization, large-scale events often need to The signal information is quickly and effectively analyzed and visualized, which puts forward more information on the overall functional performance of the splicing display system. Claim. GA/T 1084-2013 only regulates LCD color monitors, and the scope of standard application and technical indicators are too limited. To the standard Revised, adjusted and improved the existing relevant technical index system, and expanded the scope of application of splicing walls for large-scale events to adapt to the market reality. User needs and future development trends. General specification for splicing display system for large-scale events

1 Scope

This standard specifies general requirements such as the system composition, technical requirements, test methods and inspection rules of the spliced display system for large-scale events. This standard applies to the design, manufacture, inspection and installation of spliced display systems composed of LCD, LED, DLP, etc. used in large-scale events. Installation, other scenes and other types of splicing display systems can be used as reference.

2 Normative references

The following documents are indispensable for the application of this document. For dated reference documents, only the dated version applies to this article Pieces. For undated reference documents, the latest version (including all amendments) is applicable to this document. GB/T 191 Packaging, storage and transportation pictorial signs GB/T 2423.1-2008 Environmental testing of electric and electronic products Part 2.Test method Test A. Low temperature GB/T 2423.2-2008 Environmental testing of electric and electronic products Part 2.Test method Test B. High temperature GB/T 2423.3-2016 Environmental Test Part 2.Test Method Test Cab. Constant Humidity Test GB/T 2423.10-2019 Environmental Test Part 2.Test Method Test Fc. Vibration (Sine) GB/T 2423.22-2012 Environmental Test Part 2.Test Method Test N. Temperature Change GB/T 4208-2017 Enclosure protection grade (IP code) GB/T 4857.5 Packaging and transportation package drop test method GB/T 9254-2008 Information Technology Equipment Radio Disturbance Limits and Measurement Methods GB 16796-2009 Safety requirements and test methods for security alarm equipment GB/T 17626.2-2018 Electromagnetic compatibility test and measurement technology Electrostatic discharge immunity test GB/T 17626.4-2018 Electromagnetic compatibility test and measurement technology Electrical fast transient pulse group immunity test GB/T 17626.5-2008 Electromagnetic compatibility test and measurement technology surge (impact) immunity test GB/T 17626.11-2008 Electromagnetic compatibility test and measurement technology Voltage sag, short-term interruption and voltage change immunity test GB 50464-2008 Video display system engineering technical specifications SJ/T 11141-2017 General Specification for Light Emitting Diode (LED) Display SJ/T 11324 Terminology for Digital TV Receiving Equipment SJ/T 11364 Marking requirements for restricted use of hazardous substances in electrical and electronic products 3 Terms, definitions and abbreviations 3.1 Terms and definitions The following terms and definitions defined in GB 50464-2008, SJ/T 11141-2017, and SJ/T 11324 apply to this document. 3.1.1 Displayunit The basic unit that can independently complete the screen display function in the splicing display system is generally a rectangle. ......
