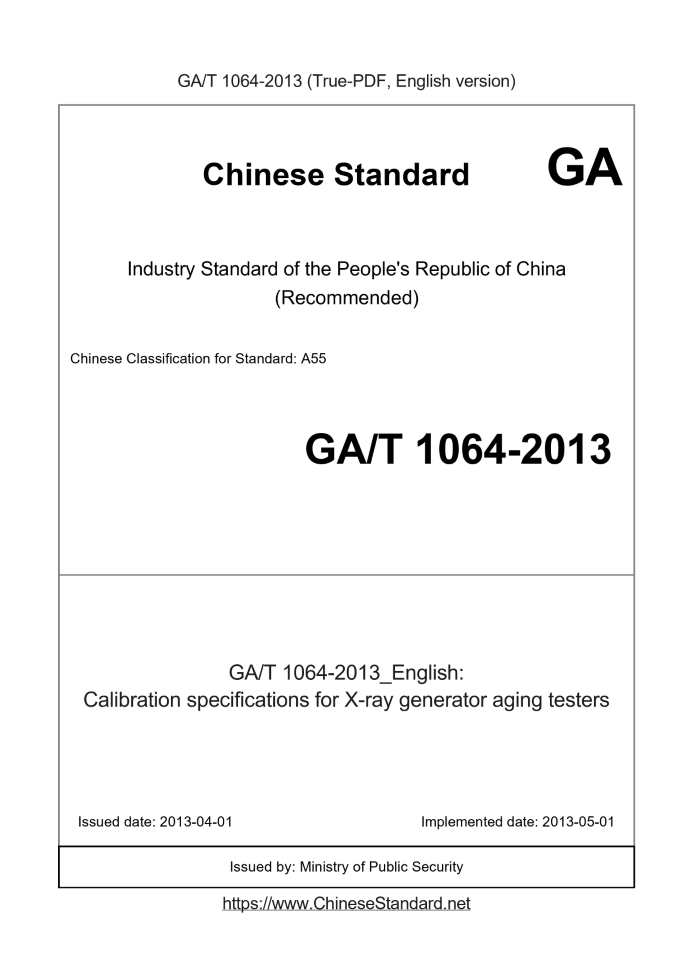

GA/T 1064-2013 English PDF

US$319.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GA/T 1064-2013: Calibration specifications for X-ray generator aging testers

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GA/T 1064-2013	319	Add to Cart	3 days	Calibration specifications for X-ray generator aging testers

Similar standards

JJF 1234   JJG 376   JJF 1107   GA/T 1063

Basic data

Standard ID: GA/T 1064-2013 (GA/T1064-2013)
Description (Translated English): Calibration specifications for X-ray generator aging testers
Sector / Industry: Public Security (Police) Industry Standard (Recommended)
Classification of Chinese Standard: A55
Classification of International Standard: 17.220.01
Word Count Estimation: 9,933
Date of Issue: 2013-04-01
Date of Implementation: 2013-05-01
Quoted Standard: JJF 1059
Regulation (derived from): Industry standard filing notice 2014 No. 4 (total 172)
Issuing agency(ies): Ministry of Public Security
Summary: This International Standard specifies the metrological performance requirements, general technical requirements, calibration conditions, calibration items and calibration methods, calibration results, and recalibration intervals of the X-ray source aging

GA/T 1064-2013: Calibration specifications for X-ray generator aging testers

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Calibration specifications for X-ray generator aging testers ICS 17.220.01 A55 People's Republic of China Public Security Industry Standards X-ray source aging tester calibration specification Issued on. 2013-04-01 2013-05-01 implementation People's Republic of China Ministry of Public Security

Foreword

This standard was drafted in accordance with GB/T 1.1-2009 given rules. The standard proposed by First Research Institute of Ministry of Public Security. This standard by the Ministry of Public Security Public Security Applications Standardization Technical Committee. This standard was drafted. First Research Institute of Ministry of Public Security. The main drafters of this standard. Wang Min, Hu Ang, Tang Hua, Weishan Wu, Zhang Yanjun, Hu Jia, Lin Peng. X-ray source aging tester calibration specification

1 Scope

This standard specifies performance requirements for the measurement of X-ray sources aging tester, general technical requirements, calibration conditions, calibration and calibration side project Method, calibration result expression and recalibration interval. This standard applies to the X-ray source aging tester initial calibration, the calibration and subsequent in-service inspection.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. JJF1059 Evaluation and Expression of Uncertainty in Measurement

3 metering performance requirements

3.1 sampling resistor Pin resistance value between the maximum allowable sampling error of ± 1%. 3.2 No-load output waveform No-load output waveform should meet the following requirements. a) amplitude (peak - peak) maximum permissible error of ± 10%; b) waveforms. square wave period (26 ~ 60) μs continuously adjustable. 3.3 load output waveform Waveform cycle (26 ~ 60) μs continuously adjustable, shape, see instrument specifications. 3.4 panel indicates error Panel indicates error should meet the following requirements. a) high-pressure indicator, showing the value of the DC voltage maximum permissible error of ± 1%; b) the reference indicator, the maximum permissible DC voltage indication error of ± 2%; c) beam indicator, showing the value of the DC voltage maximum permissible error of ± 1%; d) the filament indicator, showing the value of the maximum permissible DC voltage error of ± 2%.

4 General technical requirements

4.1 Appearance X-ray source aging tester (hereinafter referred to as the tester) shall be marked with the name plate, indicating the product name, specifications, name of the manufacturer, factory Numbering. ......
