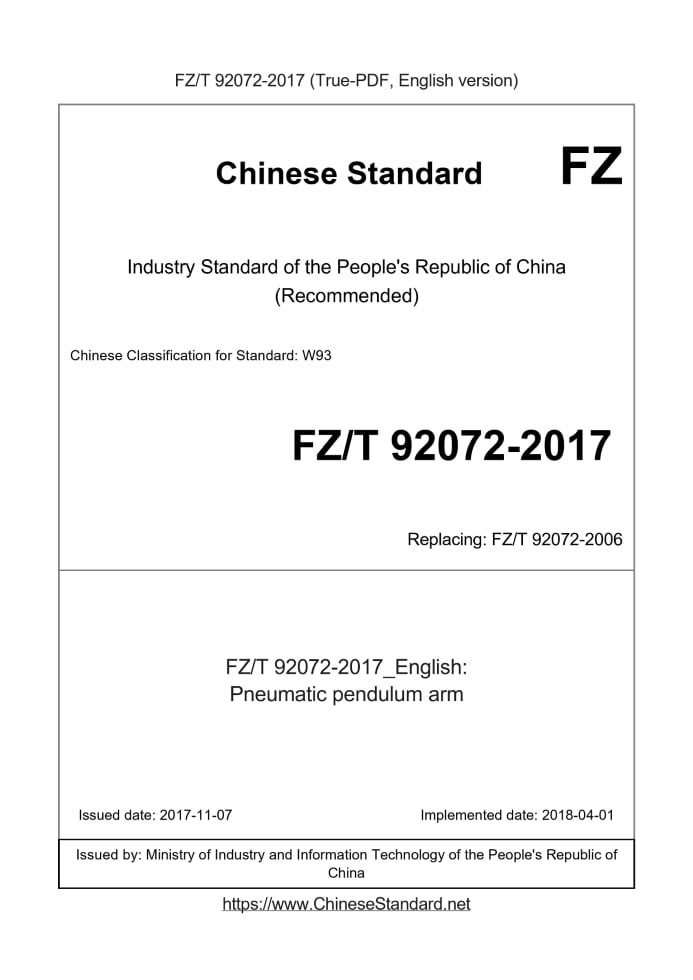

FZ/T 92072-2017 English PDF

Q: How long will the true-PDF of English version of FZ/T 92072-2017 be delivered?

Upon your order, we will start to translate FZ/T 92072-2017_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of FZ/T 92072-2017_English with my colleagues?

Yes. The purchased PDF of FZ/T 92072-2017_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

Q: Should I purchase the latest version FZ/T 92072-2017?

Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version FZ/T 92072-2017 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.

US$259.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
FZ/T 92072-2017: Pneumatic pendulum arm
Status: Valid

FZ/T 92072: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
FZ/T 92072-2017	259	Add to Cart	3 days	Pneumatic pendulum arm	Valid
FZ/T 92072-2006	359	Add to Cart	3 days	Pneumatic pendulum arm	Obsolete

Similar standards

FZ/T 93048.1 FZ/T 93019 FZ/T 92064 FZ/T 92082 FZ/T 92081

Basic data

Standard ID: FZ/T 92072-2017 (FZ/T92072-2017)
Description (Translated English): Pneumatic pendulum arm
Sector / Industry: Spinning & Textile Industry Standard (Recommended)
Classification of Chinese Standard: W93
Classification of International Standard: 59.120.10
Word Count Estimation: 11,177
Date of Issue: 2017-11-07
Date of Implementation: 2018-04-01
Older Standard (superseded by this standard): FZ/T 92072-2006
Quoted Standard: GB/T 191; FZ/T 90001
Regulation (derived from): Ministry of Industry and Information Technology Bulletin 2017 No. 48
Issuing agency(ies): Ministry of Industry and Information Technology of the People's Republic of China
Summary: This standard specifies the classification and marking of pneumatic pneumatic cradle (hereinafter referred to as "cradle"), requirements, test methods, inspection rules, signs, packaging, transportation and storage. This standard applies to the ring spinning spinning frame, roving machine pneumatic pressure cradle.

FZ/T 92072-2017: Pneumatic pendulum arm

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Pneumatic pendulum arm ICS 59.120.10 W93 People's Republic of China Textile Industry Standard Replace FZ/T 92072-2006 Pneumatic pressure cradle Released on.2017-11-07 2018-04-01 implementation Ministry of Industry and Information Technology of the People's Republic of China

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces FZ/T 92072-2006 "Pneumatic Pressing Brake". Compared with FZ/T 92072-2006, the main technical changes are as follows. ---Adjusted the classification and increased the marking and content of the cradle (see 3.1~3.2, Chapter 3 of the.2006 edition); --- Increased the parallelism requirements of the cradle holding file, and added the notes and icons (see 4.1.1~4.1.3); --- Increased the requirement of the fourth roller in the roving cradle for the first top roller in the main drafting zone (see Table 4 and Figure 4); --- Adjusted the pressure range of the complete set of cradle (see 4.3); --- Adjusted the pressure change value of the adjacent cradle adding and discharging pressure (see 4.4, Table 7); --- Increase the dynamic fluctuation of the pressure of the cradle at the specified working position and working pressure (see 4.5, Table 8); --- Cancel the pressure reduction requirement of the single set of cradle caused by repressurization of the whole vehicle after the pressure relief (see 4.8, Table 7 of.2006 edition); --- Increased the requirements for the quality of the cradle manufacturing (see 4.7); --- Added test methods and specifications (see 5.1, Figure 5 to Figure 7); --- Increased the method of cradle sampling and the principle of judgment (see 6.3). Please note that some of the contents of this document may involve patents. The issuing organization of this document is not responsible for identifying these patents. This standard was proposed by the China National Textile and Apparel Council. This standard is divided into the Technical Committee of Spinning, Dyeing and Finishing Machinery of National Textile Machinery and Accessories Standardization Technical Committee (SAC/TC215/ SC1). This standard is mainly drafted by. Changde Textile Machinery Co., Ltd., National Textile Machinery Quality Supervision and Inspection Center, Rizhao Yuhua Machinery Company, Changzhou Tonghe Textile Machinery Manufacturing Co., Ltd., Zhangjiagang Shuangfan Textile Equipment Co., Ltd., Jingwei Textile Machinery Co., Ltd. Siji Sub-branch, Wuxi Hongyuan Electromechanical Technology Co., Ltd. The main drafters of this standard. Huang Yongping, Li Pengye, Xu Xianghong, Liu Jinquan, Jiang Guohai, Zhang Manzhi, Liu Xuhong. The previous versions of the standards replaced by this standard are. ---FZ/T 92072-2006. Pneumatic pressure cradle

1 Scope

This standard specifies the classification and marking, requirements, test methods, inspection rules, signs, and packages of pneumatic pressure cradle (hereinafter referred to as "cradle"). Loading, transportation and storage. This standard is applicable to the ring spinning machine and the pneumatic pressure cradle of the roving frame.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 191 packaging storage and transportation icon FZ/T 90001 Textile Machinery Product Packaging

3 classification and marking

3.1 Classification 3.1.1 According to the purpose, it is divided into fine yarn cradle and roving cradle. 3.1.2 According to the pressure method, it is divided into indirect and direct. 3.1.2.1 Indirect refers to each pressure element of the cradle indirectly obtaining a pressure source from the compression airbag by lever partial pressure. 3.1.2.2 Direct type refers to each pressure element of the cradle directly contacting the compression bladder to obtain a pressure source. 3.2 mark 3.2.1 Marking content The tags in turn include the following. Pneumatic pressure cradle FZ/T 92072- Product name and standard number QYJ Pressurized type code Category code Pressurization mode code Front and bottom bottom roller maximum center distance Draft type code Twin code a) Product name and standard number, "Pneumatic pressure cradle FZ/T 92072"; b) Pressurized type code, pneumatic pressure is indicated by capital letter "QYJ"; c) category code, with the capital letter “C” for the roving cradle, the spun cradle is not marked; d) Pressurization mode code, with the capital letter "Z" for direct type and indirect for no mark; e) the maximum center distance of the front and rear bottom rollers, expressed in Arabic numerals, in millimeters; ......
