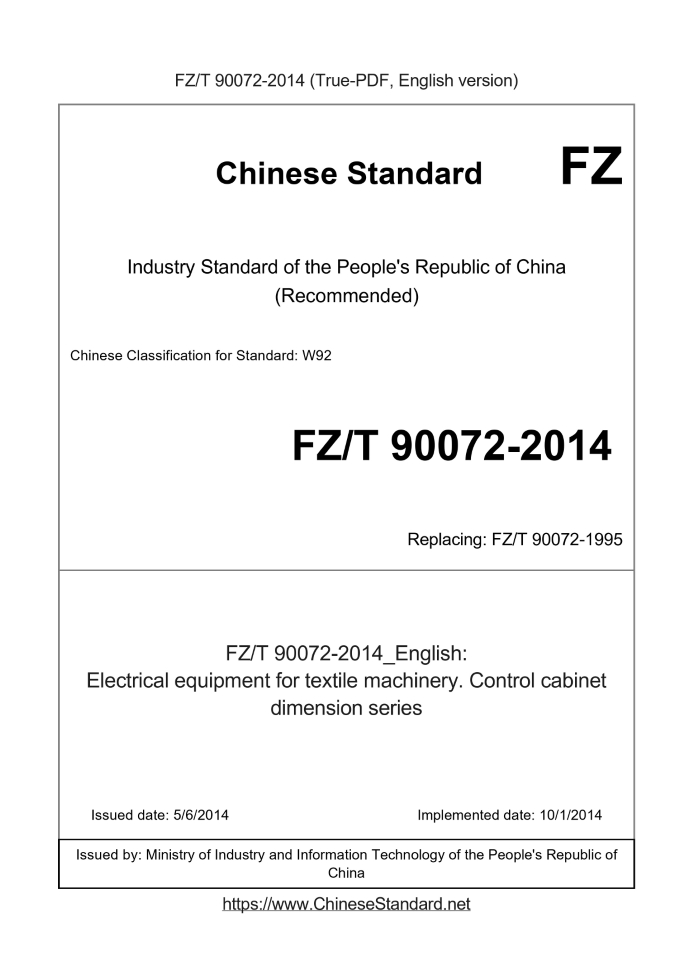

FZ/T 90072-2014 English PDF

US$149.00 · In stock
Delivery: <= 2 days. True-PDF full-copy in English will be manually translated and delivered via email.
FZ/T 90072-2014: Electrical equipment for textile machinery. Control cabinet dimension series
Status: Valid

FZ/T 90072: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
FZ/T 90072-2014	149	Add to Cart	2 days	Electrical equipment for textile machinery. Control cabinet dimension series	Valid
FZ/T 90072-1995	199	Add to Cart	2 days	Dimension series of control cabinets for electrical equipment in textile machinery	Obsolete

Similar standards

FZ/T 93048.1   FZ/T 93019   FZ/T 99022   FZ/T 92078   FZ/T 90010

Basic data

Standard ID: FZ/T 90072-2014 (FZ/T90072-2014)
Description (Translated English): Electrical equipment for textile machinery. Control cabinet dimension series
Sector / Industry: Spinning & Textile Industry Standard (Recommended)
Classification of Chinese Standard: W92
Classification of International Standard: 59.120.01
Word Count Estimation: 5,573
Date of Issue: 5/6/2014
Date of Implementation: 10/1/2014
Older Standard (superseded by this standard): FZ/T 90072-1995
Regulation (derived from): ?MIIT Announcement 2014 No. 32; Industry-Standard-Filing Announcement 2014 No. 6 (Total No. 174)
Issuing agency(ies): Ministry of Industry and Information Technology of the People's Republic of China
Summary: This Standard specifies the textile machinery and electrical equipment control cabinet types and dimensions. This Standard applies to textile machinery installed in separate sets of control cabinet, a single control panel installed separately (not includi

FZ/T 90072-2014: Electrical equipment for textile machinery. Control cabinet dimension series

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Electrical equipment for textile machinery.Control cabinet dimension series ICS 59.120.01 W92 People's Republic of China textile industry standards Replacing FZ/T 90072-1995 Textile machinery and electrical equipment control cabinet size series Issued on. 2014-05-06 2014-10-01 implementation Ministry of Industry and Information Technology of the People's Republic of China released

Foreword

This standard was drafted in accordance with GB/T 1.1-2009 given rules. Instead of the standard FZ/T 90072-1995 "textile machinery and electrical equipment control cabinet dimension series." Compared with this standard FZ/T 90072-1995, in addition to editorial changes outside the main technical changes are as follows. --- The two tables into one table (see Table 1, 1995 edition of the Table 1, Table 2); --- Added "type" (see Chapter 2); --- Increased single-door cabinet (see Figure 1); --- Canceled width "400,500,700,900,1600,1800" series (see the 1995 edition of the Table 1, Table 2); --- Modify the width "1400" preferred combination can be used in combination (see Table 1, 1995 edition of the Table 1, Table 2); --- Increase the height dimension of the "1200" (see Table 1); --- Increasing the depth dimension "700" (see Table 1). The standard proposed by China Textile Industry Association. This standard by the national textile machinery and accessories for Standardization Technical Committee (SAC/TC215) under the jurisdiction of the national industry standard mechanical and electrical systems Associate Technical Committee Textile Machinery Electrical Systems Technical Committee (SAC/TC231/SC1) Professional focal point. This standard was drafted. Shaoyang Textile Machinery Co., Ltd., Beijing Jingwei Textile Machinery New Technology Company Limited, Qingdao Hongda Textile Machinery Limited liability company, Hongda Research Institute Co., Ltd., Beijing Chonglee Machinery Engineering Co., Ltd., Beijing Science and Technology Development Public Co., SAGE the company. The main drafters of this standard. Lin Jian, Wu Yanhong, Shaosong Juan, Wang Haiying, Zhang Lu, Bi Li Yun. This standard replaces the standards previously issued as follows. --- FZ/T 90072-1995. Textile machinery and electrical equipment control cabinet size series

1 Scope

This standard specifies the textile machinery and electrical equipment Control (hereinafter referred to as the control cabinet) type and size. This standard applies to textile machinery installed in sets of independent control cabinet, a single stand-alone control cabinet installation (not including the console) can refer to Selection. Type 2 Control cabinet sub-type single-door, two-door two types, shown in Figure 1. Explanation. H --- height; D --- Depth; W --- width. The height from the ground date does not include rings, exhaust hood, junction boxes, including the base, casters and bottom borders; the depth dimension and width dimensions do not include handles, Projection components. Figure 1 control cabinet type

3 Dimensions

Control cabinet dimensions specified in Table 1. ......
