FZ/T 90055-2012: Specification of jacquard cylinder
Status: Valid

FZ/T 90055: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
FZ/T 90055-2012	239	Add to Cart	3 days	Specification of jacquard cylinder	Valid
FZ/T 90055-1994	479	Add to Cart	4 days	(Jacquard device specifications spendthrift)	Obsolete

Similar standards

FZ/T 93048.1   FZ/T 93019   FZ/T 90060.10   FZ/T 90059   FZ/T 90054

Basic data

Standard ID: FZ/T 90055-2012 (FZ/T90055-2012)
Description (Translated English): Specification of jacquard cylinder
Sector / Industry: Spinning & Textile Industry Standard (Recommended)
Classification of Chinese Standard: W90
Classification of International Standard: 59.120.01
Word Count Estimation: 10,175
Older Standard (superseded by this standard): FZ/T 90055-1994
Quoted Standard: GB/T 22831
Regulation (derived from): Ministry of Industry and Information Technology Bulletin 2012 No. 70; industry standard filing Notice 2013 No. 2 (No. 158 overall)
Issuing agency(ies): Ministry of Industry and Information Technology of the People's Republic of China
Summary: This standard specifies the size jacquard spendthrift code, type, and are equipped with main dimensions Jacquard specifications. This standard applies to cross-section of a square or pentagon, hexagon and octagon jacquard spendthrift and are equipped with

FZ/T 90055-2012: Specification of jacquard cylinder

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

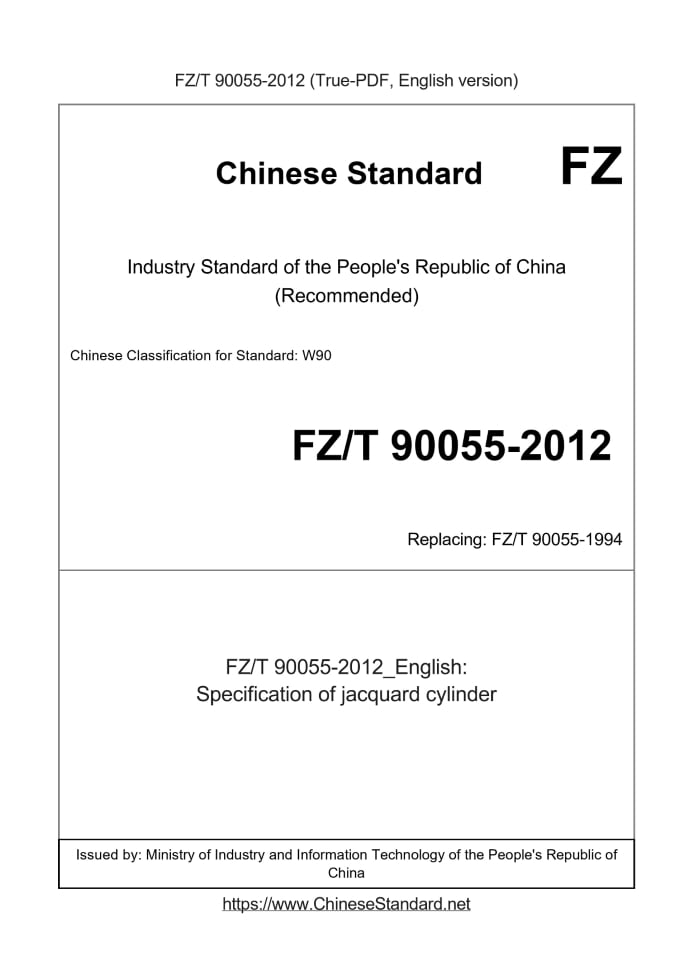

Specification of jacquard cylinder ICS 59.120.01 W90 People's Republic of China textile industry standards Replacing FZ/T 90055-1994 Jacquard Fountains Specifications Issued on. 2012-12-28 2013-06-01 implementation Ministry of Industry and Information Technology of the People's Republic of China released

Foreword

This standard was drafted in accordance with GB/T 1.1-2009 given rules. Instead of the standard FZ/T 90055-1994 "spendthrift jacquard device specifications." Compared with this standard FZ/T 90055-1994, the main difference Differences are as follows. --- Changing the name of the standard, which will be "Jacquard apparatus" to "jacquard"; --- The "equilateral pentagon" with "pentagon" (see 41, 1994 version 4.1.); --- Increased regular hexagon and octagon type (see 4.1); --- Increased spendthrift pattern pinhole aperture (see Table 1, Table 5.3 of the 1994 edition); --- Added Figure A.5 (see Figure A.5). The standard proposed by China Textile Industry Association. This standard by the National Standardization Technical Committee Textile machinery and accessories. This standard was drafted. Yangshan Zhejiang Textile Machinery Co., Ltd., Shaoxing County Hong Thai Machinery Manufacturing Co., Ltd., Shanghai Textile Machinery sword Ltd., Zhejiang Machinery Co., Ltd. Qi Fang, Fang Machinery Co., Ltd. Shaoxing County group, Zhejiang Quality Inspection Research Institute, China Textile Machinery Mechanical Equipment Industry Association. The main drafters of this standard. Yu Zhuankui, Ms. Li, Dong Hanmin, Weide Tai, Xu Haiping, Han Tong, Dong Yunhai, Shiying Can. This standard replaces the standards previously issued as follows. --- FJ548-1984; --- FJ510-1985; --- FZ/T 90055-1994. Jacquard Fountains Specifications

1 Scope

This standard specifies the jacquard Fountains size code, type, size and the main equipped with mention checkered specifications. This standard applies to square cross-section or a regular pentagon, hexagon and regular octagon jacquard spendthrift and equipped with references to the checkered; Mention checkered punching device punching template sizes may also refer to use. This standard does not apply to the use of continuous mention checkered jacquard spendthrift.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 22831 Jacquard cardboard

3 Size Code

A --- pinhole pitch; B --- width spendthrift; D1 --- pinhole aperture; D2 --- mounted on the Fountains dead bolt diameter; E --- using two pattern plates when separated zone; N --- pinhole columns (each is a horizontal); S --- ends pinhole pitch; b --- pattern plate width; l --- pattern plate length; t --- pattern plate thickness. Type 4 4.1 by spendthrift sectional points a) square; b) regular pentagon; c) regular hexagon; d) regular octagon. 4.2 Press spendthrift pinhole aperture points a) Big Hole; b) The Hole; c) apertures class. ......
