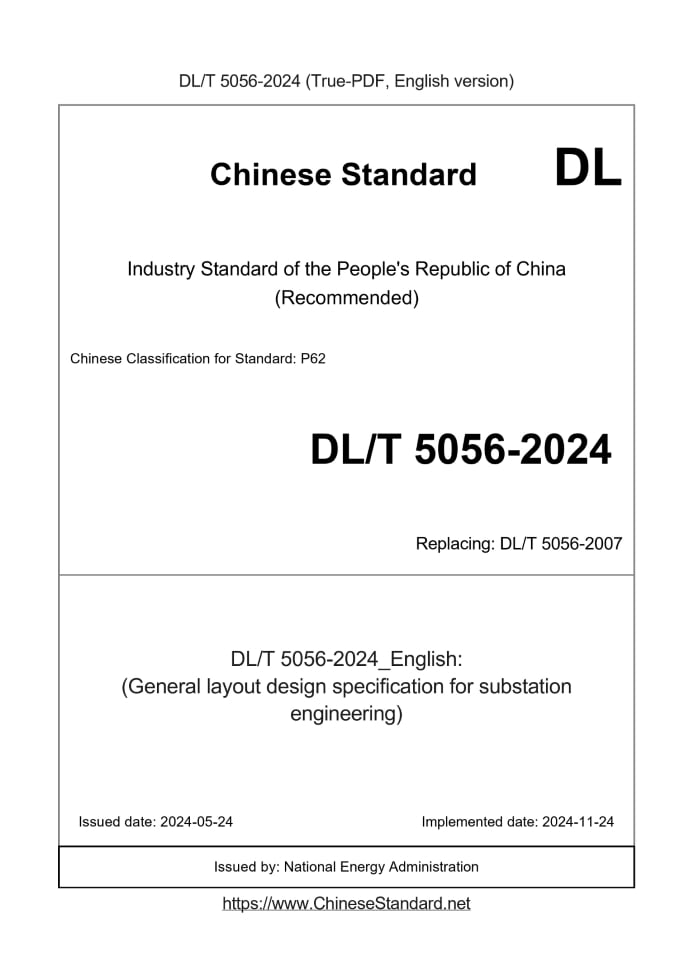

DL/T 5056-2024 English PDFDL/T 5056: Historical versions
Basic dataStandard ID: DL/T 5056-2024 (DL/T5056-2024)Description (Translated English): (General layout design specification for substation engineering) Sector / Industry: Electricity & Power Industry Standard (Recommended) Classification of Chinese Standard: P62 Classification of International Standard: 29.240 Date of Issue: 2024-05-24 Date of Implementation: 2024-11-24 Older Standard (superseded by this standard): DL/T 5056-2007 Issuing agency(ies): National Energy Administration DL/T 5056-2007: Technical Code of General Plan Design for Substation---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Technical code of general plan design for substation ICS 29.240.10 P 62 Record number. J761-2007 People's Republic of China Power Industry Standard P DL / T 5056 -.2007 Replace DL / T 5056 -.1996 Technical specification for general layout design of substation Technical code of general plan Design for substation Released on.2007-12-03 2008-06-01 implementation National Development and Reform Commission of the People's Republic of China People's Republic of China Power Industry Standard Technical specification for general layout design of substation DL / T 5056 -.2007 Replace DL / T 5056 -.1996 China Power Press publishes and distributes Beijing Botu Color Printing Co., Ltd. Printing The first edition of June.2008, the first edition of Beijing, June.2008 850 mm × 1168 mm 32 open book 2.25 printed sheet 58 thousand words Printed number 0001-3000 Uniform book number 155083·1948 Price 10.00 yuan Advise the reader The cover of the book is affixed with a security label, and the center pattern disappears after heating. If the book has print quality problems, our agency is responsible for the return. Copyright proprietary reprint Sales Classification Recommendation. Code Specification / Power Engineering/General / T 6 - / T DL / T 5056 -.2007 ContentForeword... 1 Scope... 1 2 Normative references... 2 3 General ... 4 Master Plan... 5 Total Plane Layout... 6 Vertical arrangement ... 7 Underground Pipeline (Channel) Layout... twenty one 8 路... 9 Outdoor power distribution equipment site treatment and greening... 30 10 Technical and Economic Indicators... Article Description... DL / T 5056 -.2007ForewordThis standard is based on the National Development and Reform Commission of the National Development and Reform Commission [2004] No. 872 The Office’s arrangements for the issuance of the Notice of the.2004 Industry Standard Project Plan, Revised DL/T 5056-1996. This revision of DL/T 5056-1996 implements the foundation of China's power construction. This policy, earnestly implement the principles of "safe and reliable, economical, and in line with national conditions" and Control engineering cost, actively promote advanced technology, mature and reliable design technology, pay attention to The requirement to adapt to the land and to adapt to the socialist market economic system. This standard has been modified as follows in comparison with DL/T 5056-1996. 1. Added two chapters of "scope" and "normative reference documents" and chapters The title has been modified. 2. Increased the total layout requirements of the 750kV substation, and the applicable range is extended to voltage, etc. The total layout design of the new or expanded substation is from 110kV to 750kV. 3. The greening planning provisions of the substation have been cancelled, and the local projects should be adapted to local conditions. Properly greening the substation or adopting other forms of coverage protection on the site to avoid The site dusts and achieves the purpose of saving water. 4. Increased common special soil sites such as expansive soil areas and collapsible loess areas General layout and vertical layout requirements. 5. Cancel or modify some of the development directions and operations that are not suitable for today's substation technology Construction and construction of buildings and their layout, such as communication buildings, microwave towers, and materials Library, maintenance room, garage, administrative office, coal-fired boiler room, front yard courtyard Arrangement and so on. 6. Classification of fire hazards of buildings (structures) and their fire resistance rating, substation The fire separation distance of each building (structure) and equipment and the current national standard GB 50016 Building Design Fire Protection Code and GB 50229 "Fire Power Plant and Substation Design Fire Protection Regulations" Fan is coordinated. DL / T 5056 -.2007 7. According to the actual flood control standards in various parts of the country, especially in cities, this revision will The design elevation of the site of the 110kV substation station area should be higher than the frequency of 2% (recurrence period, under The same flood level or historical maximum water level, 220kV substation station area The elevation of the gauge should be higher than the flood water level with a frequency of 1% or the highest water level in the history. It is a 220kV hub substation and a substation with a voltage level of 220kV or higher. The design elevation should be higher than the flood level or history with a frequency of 1% (recurring period, the same below) High internal water level; other voltage level substation site area design elevation should be higher than frequency The rate is 2% of the flood level or the historical highest inland water level. 8. Increased retaining wall in expansive soil area and excavated land in expansive soil area The design of the net distance from the external wall of the building (structure) to the foot support structure. 9. The allowable value of slope rate of soil excavation slope and the allowable value of slope rate of rock excavation slope are The current national standard GB 50330 "Technical Specifications for Building Slope Engineering" is coordinated. 10. Increased substations in mountainous and hilly areas, with stonework on the spot At the time, the proportion of earth and stone should be counted. 11. Increased requirements for site leveling in collapsible loess areas. 12. The cable gland cover can be added to use the finished cover. 13. The “Overhead Pipeline” section has been removed. 14. Increased special soil sites such as expansive soil areas and collapsible loess areas Use urban roads inside the station. 15. In accordance with the current national standard GB 50016 "Code for Fire Protection of Building Design" Therefore, this revision will change the net width of the main circular fire lane of the substation from 3.5m to 4m. 16. Increased the width and turning radius of the high-voltage reactors in the station. 17. Revised the coverage protection method for outdoor power distribution equipment. 18. Eliminated the land area and station within the fence of the living area in the main technical and economic indicators. The greening area of the district, the greening land coefficient of the station area and the calculation method of its indicators. This standard replaces DL/T 5056-1996 after implementation. This standard was proposed by the China Electric Power Enterprise Association Standardization Center. This standard is under the jurisdiction of the Power Industry Power Planning and Design Standardization Technical Committee. DL / T 5056 -.2007 Explanation. This standard was drafted. Northwest Electric Power Design Institute. The main drafters of this standard. Zhang Yuming, Wang Yongzi, Lang Xuhai, Dong Ming, Zhao Jie, Lu Jie, Liang Wei, Wang Weijun. This standard was first published on August 26,.1996. This is the first revision. The opinions and suggestions of this standard during the implementation process are fed back to the China Power Enterprise Association. Standardization Center (No. 1, No. 1, Baiguang Road, Beijing, 100761). DL / T 5056 -.20071 ScopeThis standard specifies the basic technical requirements for the general layout design of the substation. This standard applies to new or expanded substations with voltage levels from 110kV to 750kV. The overall layout design. Substation and rebuilt substation with voltage level above 750kV And the general layout design of the converter station can be referred to. DL / T 5056 -.20072 Normative referencesThe terms in the following documents become the terms of this standard by reference to this standard. For all dated references, all subsequent amendments (not including errata) 容) or revisions do not apply to this standard, however, encourage agreement based on this standard The parties to the discussion examined whether the latest versions of these documents could be used. Where not dated The referenced document, the latest version of which applies to this standard. GB 50007 Building Foundation Design Specification GB 50016 Building Design Fire Code GB 50187 General Plan for Design of Industrial Enterprises GB 50201 Flood Control Standard GB 50229 Fire power plant and substation design fire protection specification GB 50330 Technical Specifications for Building Slope Engineering GB J 22 factory mine road design specification DL/T 5032 Technical specification for general plan transportation design of thermal power plants DL / T 5056 -.20073 General3.0.1 The general layout design of the substation must fully implement the national basic construction guidelines. The current national technical and economic policies, unify and clarify the construction standards, and guarantee new (expanded) construction The substation is safe, reliable, technologically advanced, economical and in line with national conditions. 3.0.2 The general layout design of substation must establish a global concept, in-depth investigation and research, Rely on technological progress, meticulous design, continuous summing up experience, and actively and cautiously promote domestic and foreign Advanced technology, adopting mature new materials, new processes and new arrangements according to local conditions Sustainable development requirements. 3.0.3 The general layout design of the substation shall comply with the Land Administration Law of the People's Republic of China. Relevant regulations, in line with the national land use policy, adapt to local conditions, save land, Rational use of land, improve land utilization, make full use of wasteland, inferior land, sloping land, no Occupy or account for less farmland; the terrain should be used reasonably to reduce the amount of land (stone) and Demolition of existing facilities and buildings (structures), avoiding or reducing the land acquisition (generation) Multi-program technical and economic comparison, optimize design, reduce project cost and shorten construction Cycle and create conditions for civilized construction. 3.0.4 This standard is based on the original GB 50187 "General Plan for Design of Industrial Enterprises" Then prepare. Substation general layout design in addition to the implementation of this standard, for Seismic zone, collapsible loess area, expansive soil area, soft soil area, permafrost area, Substations constructed under special natural conditions such as saline soils should still comply with the current relevant National and industry standards. 3.0.5 The general layout design of the expansion and reconstruction substation shall be combined with the original general layout, Vertical layout and equipment layout features make the overall coordination. DL / T 5056 -.20074 Master plan4.0.1 The overall planning of the substation should be related to local town planning, industrial zone planning, and nature conservation. The planning of the protected area or the planning of the tourism planning area should be coordinated, and the site should not be built on existing landslides. In the geological disaster areas such as mudslides, large caves, and mining goafs, the site should not be crushed. Minerals and cultural relics should avoid mutual interference with military, aviation and communication facilities, outside the station Transportation should meet the transportation requirements of large equipment, and should make full use of the nearest life, culture and education, Public facilities such as sanitation, transportation, fire protection, water supply and drainage. For substations with special topography such as mountains, the overall plan should consider the terrain, Stability of the mountains, slope excavation, floods and floods. In the presence of flash floods and guilt In the construction of the area, it is advisable to make full use of the existing flood control and flood prevention facilities in the area. 4.0.2 The overall planning of urban underground (indoor) substations should meet local urban planning The requirements should avoid mutual interference with neighboring houses, enterprises and facilities. 4.0.3 The overall planning of the substation should be based on the process layout requirements and construction, operation and inspection. The need for repair and ecological environment protection, combined with the natural conditions of the site, will be planned according to the final scale. Combined in the near and long term, mainly in the near future. When constructing by stages, it should be based on load development requirements. Rational planning, land acquisition or land acquisition. The overall plan should be based on the above principles, for the station area, water source, water supply and drainage facilities, Station roads, flood control facilities, entrance and exit corridors, terminal towers, station external power supplies and The surrounding environment will be coordinated and rationally arranged. 4.0.4 When there is a pollution source near the substation, the overall plan should be based on the type and source of the pollution source. The prevailing winds in the year avoid the adverse effects on the station area. 4.0.5 Substation should have a reliable water source, and the quality of drinking water should be in line with national drinking. Water sanitation standards. The production wastewater or rainwater and domestic sewage of the substation shall comply with the state or Local emission standards. 4.0.6 Inbound roads, large-scale equipment transportation, water supply and drainage facilities, and station use for new substations The supporting facilities such as the power supply and flood control facilities shall be included in the overall plan of the substation. DL / T 5056 -.20075 general layout5.1 General provisions 5.1.1 The general layout of the substation shall be planned and designed according to the final scale, according to the system. Load development requirements, it is not appropriate to block the possibility of expansion, and make the overall layout of the station area as far as possible Regular. 5.1.2 The general layout of the substation should meet the overall planning requirements and make the process cloth in the station Reasonable, clear functional division, convenient transportation and land use. 5.1.3 The general plan of the station area should be arranged in a near-term construction of the building (structure) Construction by stages and land conservation. Urban underground (indoor) substation civil works can be the most Construction at the end of the scale. 5.1.4 The main production and auxiliary (subsidiary) buildings of the substation should be concentrated or jointly arranged. When combined with the converter station, it can be used according to the nature of the auxiliary (subsidiary) building. The functional requirements are classified in a centralized or joint arrangement in the station front area. 5.1.5 Under the premise of taking into account the smooth planning of the outlet and the reasonable layout of the process, the substation should Combine with natural terrain to minimize the amount of soil (stone). When the terrain difference of the station area is higher than When large, it can be arranged in a stepped manner. The main production and construction (structure) and equipment support of the mountain substation, when close When the slope is arranged, the safety distance between the building (structure) and the slope top and the slope foot shall be in accordance with this standard. Article 6.3.4 is determined. 5.1.6 There should be a difference between the urban underground (indoor) substation and the adjacent buildings outside the station. Anti-channel. The net width and net height of the fire lane must meet the requirements of GB 50016 The relevant provisions of the Fire Code. 5.1.7 Main control communication building (room), indoor power distribution equipment building (room), large substation structure Such important building (structure) and GIS combination electrical appliances, main transformers, high voltage reactors, Large equipment such as capacitors should be placed in a location with uniform soil and reliable foundation. DL / T 5056 -.2007 5.1.8 Substation located in the expansive soil area, with strict requirements for deformation (construction) The building should be arranged deep in the expansive soil, with a low level of expansion and contraction or a flat terrain. The substation in the collapsible loess area, the main building (structure) should be arranged In areas where the foundation has a low level of collapsibility. 5.1.9 The substation to be expanded or rebuilt should make full use of the original buildings (structures) and facilities. Minimize demolition and avoid the impact of construction on existing facilities. 5.2 Main building (structure) 5.2.1 The main control communication building (room) should be arranged for the inspection and observation of the operators. Outdoor equipment, reducing cable length, avoiding the effects of noise and facilitating connection to the entrance gate Lot. The main control communication building (room) should have a good orientation and make the main control room convenient at the same time. Each power distribution unit area was observed. 5.2.2 The power distribution devices of voltages at all levels shall be combined with the terrain and the corresponding outgoing direction. Line optimization combines to avoid or reduce line crossover. The relative position of the power distribution devices should be such that the main transformer and reactive power compensation device The connecting wires of each power distribution unit are short and short, and the length of the roads and cables in the station is short. 5.2.3 The main transformer of the urban substation should be arranged separately in the outdoor, or placed in the building The bottom of the object. 5.2.4 The relay chambers of voltages at all levels shall be reasonably arranged according to the process requirements and the cables shall be The laying path is short and easy to patrol. 5.3 Auxiliary (affiliated) buildings 5.3.1 Substation auxiliary (affiliated) buildings shall be arranged according to process requirements and use Functional unified planning. It is advisable to combine joint or multi-storey buildings with engineering conditions. 5.3.2 When using electric boiler heating, the electric boiler room should be placed at the bottom of the main control communication building. Or separate places where the heating buildings are concentrated. 5.3.3 The shower valve chamber or the foam fire-fighting equipment room should be arranged in the main transformer, reactor, etc. Near the oil equipment. DL / T 5056 -.2007 5.3.4 When setting up the diesel generator room, its arrangement should avoid noise to the main control communication building. Sound and vibration effects, as close as possible to the station with AC and DC power distribution room layout. 5.3.5 Substation water supply and drainage facilities should be arranged separately, and the minimum clearance should meet the current country. The relevant provisions of the family standard. 5.3.6 Substation water supply construction (structure), such as deep well pump house, living fire pump house, The reservoirs, etc., should be arranged in ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of DL/T 5056-2024_English be delivered?Answer: Upon your order, we will start to translate DL/T 5056-2024_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of DL/T 5056-2024_English with my colleagues?Answer: Yes. The purchased PDF of DL/T 5056-2024_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version DL/T 5056-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version DL/T 5056-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
