GB/T 40262-2021 PDF EnglishUS$185.00 · In stock · Download in 9 seconds
GB/T 40262-2021: Metal coating fabric - Determination of metal layer adhesive force - Tape method Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

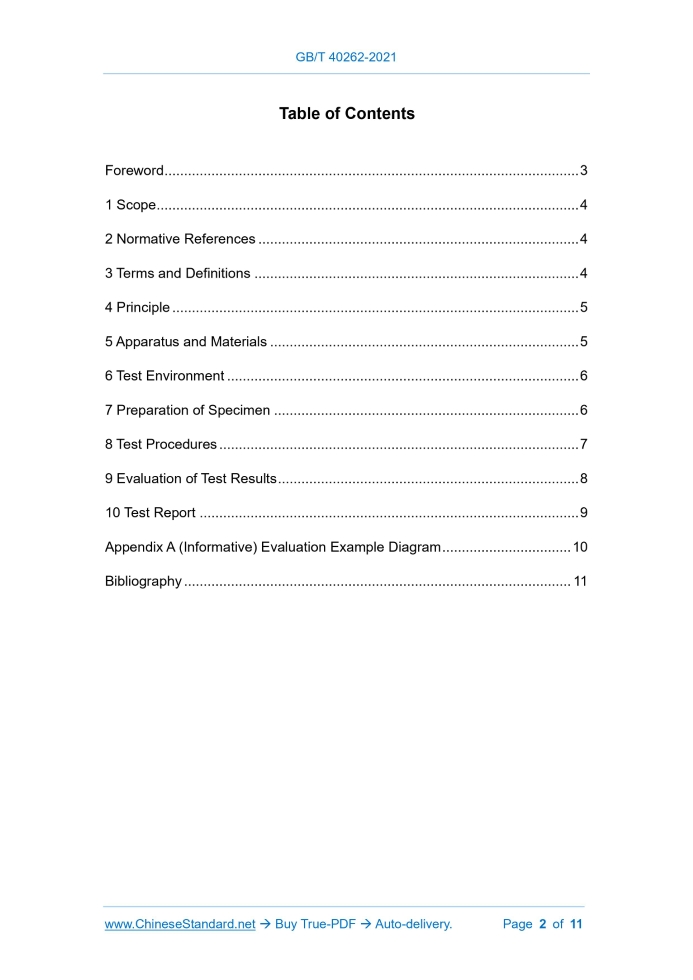

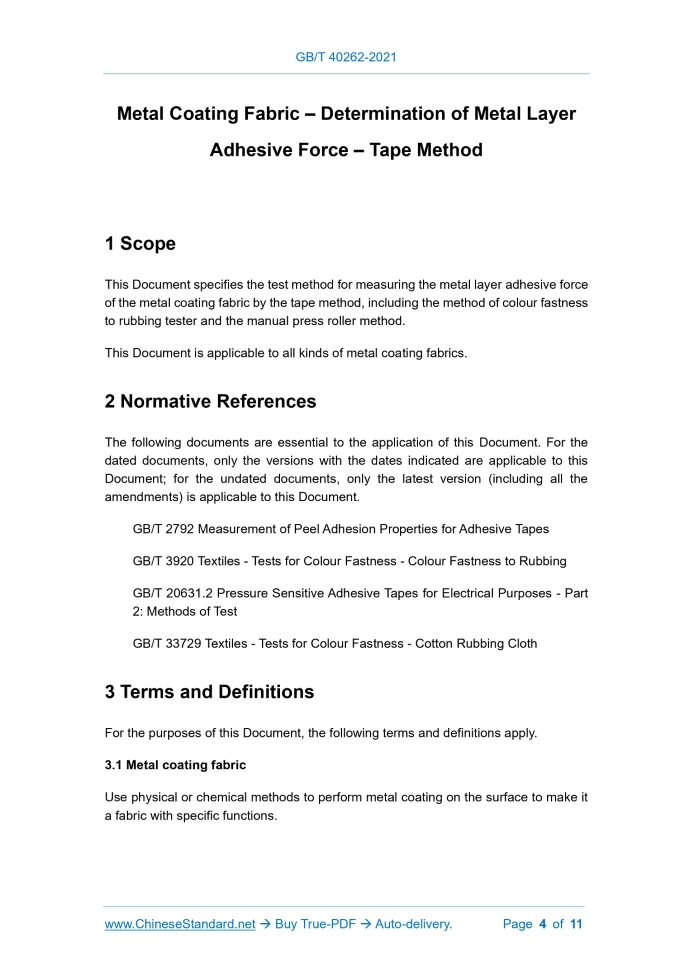

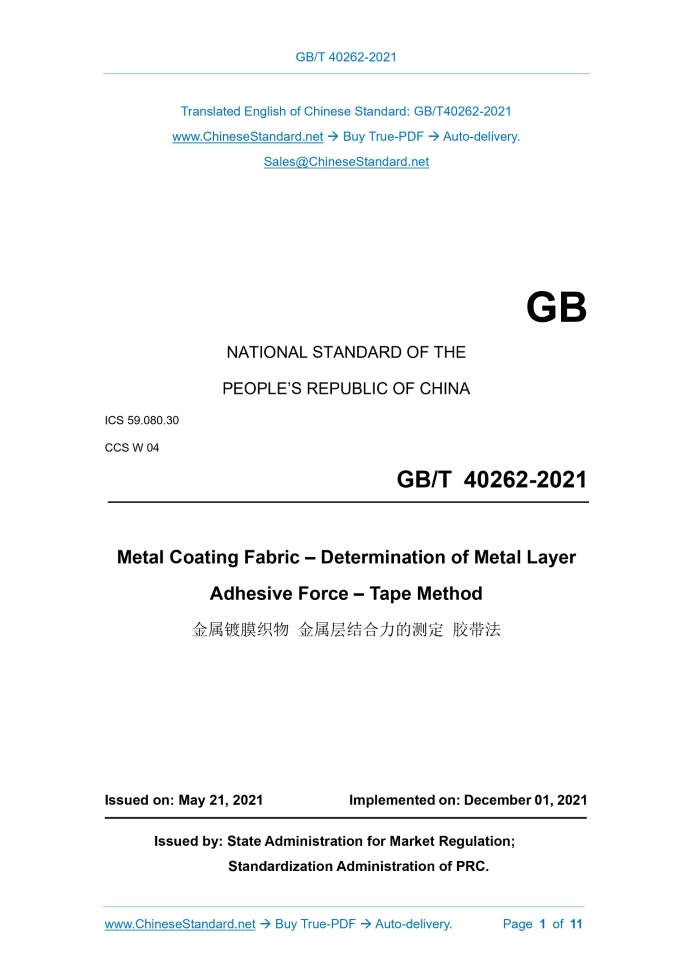

Similar standardsGB/T 40262-2021: Metal coating fabric - Determination of metal layer adhesive force - Tape method---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT40262-2021GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 59.080.30 CCS W 04 Metal Coating Fabric – Determination of Metal Layer Adhesive Force – Tape Method ISSUED ON: MAY 21, 2021 IMPLEMENTED ON: DECEMBER 01, 2021 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 4 4 Principle ... 5 5 Apparatus and Materials ... 5 6 Test Environment ... 6 7 Preparation of Specimen ... 6 8 Test Procedures ... 7 9 Evaluation of Test Results ... 8 10 Test Report ... 9 Appendix A (Informative) Evaluation Example Diagram ... 10 Bibliography ... 11 Metal Coating Fabric – Determination of Metal Layer Adhesive Force – Tape Method1 ScopeThis Document specifies the test method for measuring the metal layer adhesive force of the metal coating fabric by the tape method, including the method of colour fastness to rubbing tester and the manual press roller method. This Document is applicable to all kinds of metal coating fabrics.2 Normative ReferencesThe following documents are essential to the application of this Document. For the dated documents, only the versions with the dates indicated are applicable to this Document; for the undated documents, only the latest version (including all the amendments) is applicable to this Document. GB/T 2792 Measurement of Peel Adhesion Properties for Adhesive Tapes GB/T 3920 Textiles - Tests for Colour Fastness - Colour Fastness to Rubbing GB/T 20631.2 Pressure Sensitive Adhesive Tapes for Electrical Purposes - Part 2: Methods of Test GB/T 33729 Textiles - Tests for Colour Fastness - Cotton Rubbing Cloth3 Terms and DefinitionsFor the purposes of this Document, the following terms and definitions apply. 3.1 Metal coating fabric Use physical or chemical methods to perform metal coating on the surface to make it a fabric with specific functions. α – width of sample; b – length of sample; c – length of specimen; d – width of specimen; e – distance from the left/right specimen to the edge of the sample (above 100mm). Figure 2 – Specimen Sampling Schematic Diagram 7.2 Take a roll of pressure-sensitive adhesive tape; evenly pull out and remove a length (2 ~ 3 turns) of the initial section; and then cut the pressure-sensitive adhesive tape with a length of about 120mm. 7.3 Fold one end of the tape about 10mm as the free end; and stick it on the surface of the metal layer of the sample in the centre. Hold the press roller, roll it back and forth twice in the length direction; the reciprocating speed is (10±0.5) mm/s; and it is flattened without air bubbles. If there are bubbles, prepare the specimen again 7.4 After the specimen is prepared, it shall be stored in the test environment for 0.5h ~ 1.0h before starting the test.8 Test Procedures8.1 Method of colour fastness to rubbing tester 8.1.1 Use a clamping device to fix the specimen on the bottom plate of the colour fastness to rubbing tester; and the rubbing head corresponds to the middle position of the tape; so that the length direction of the specimen is consistent with the stroke direction of the instrument. 8.1.2 Fix the rubbing cloth on the rubbing head of the tester; so that the warp direction of the rubbing cloth is consistent with the running direction of the rubbing head. 8.1.3 In the length direction of the specimen, rub it back and forth continuously for 25 times. The linear reciprocating stroke is (104±3) mm, and the reciprocating speed is 60 times/min. 8.1.4 After an interval of 30s, hold the free end of the adhesive tape; and peel off the adhesive tape from the specimen quickly (within 0.5s~1.0s) and stably in a direction 180° to the specimen as much as possible. 8.1.5 Stick the adhesive tape on the white paper; and number it according to the test sequence. 8.1.6 Repeat procedures 8.1.1 ~ 8.1.5 to test other specimens; and paste them on the same piece of white paper. 8.2 Manual press roller method 8.2.1 Place the specimen with pressure-sensitive adhesive tape on the tempered flat glass; so that the length direction of the specimen is consistent with the direction of movement of the manual press roller; and the linear reciprocating stroke is no less than 110mm. 8.2.2 In the length direction of the specimen, use a press roller to reciprocate 10 times on the specimen at a speed of (10±0.5) mm/s under its own weight. 8.2.3 After an interval of 30s, hold the free end of the adhesive tape; peel off the adhesive tape quickly (within 0.5s~1.0s) and stably in a direction 180° to the specimen as much as possible, namely, it is in the same plane with the specimen, and parallel to the length direction of the specimen. 8.2.4 Stick the adhesive tape on the white paper; and number it according to the test sequence. 8.2.5 Repeat procedures 8.2.1 ~ 8.2.4 to test other specimens; and paste them on the same piece of white paper.9 Evaluation of Test ResultsUse natural light for inspection. If the indoor light is insufficient, use fluorescent for lighting. The distance between the light source and the specimen is 1.0m~1.2m; and the illuminance on the surface of the specimen is (400±100) lx. For visual inspection, the line of sight of the inspector shall face the surface of the specimen; and the straight- line distance between the eyes and the surface of the specimen is about 500mm. Visually inspect the tested the adhesive tape; describe according to the level of adhesive force. Refer to the evaluation example diagram (see Appendix A); observe the adhesion of the metal particles; and determine the level of adhesive force. Due to the subjective factors of evaluation, it is recommended that at least two people evaluate the specimen. Description of level of adhesive force: Level-1: Tested tape adheres to metal shavings that are connected into flakes, and the flake metal shavings are dense. Level-2: Tested tape adheres to metal shavings that are connected into flakes, and the flake metal shavings are sparse. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 40262-2021 be delivered?Answer: The full copy PDF of English version of GB/T 40262-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 40262-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 40262-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 40262-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 40262-2021?A step-by-step guide to download PDF of GB/T 40262-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 40262-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
